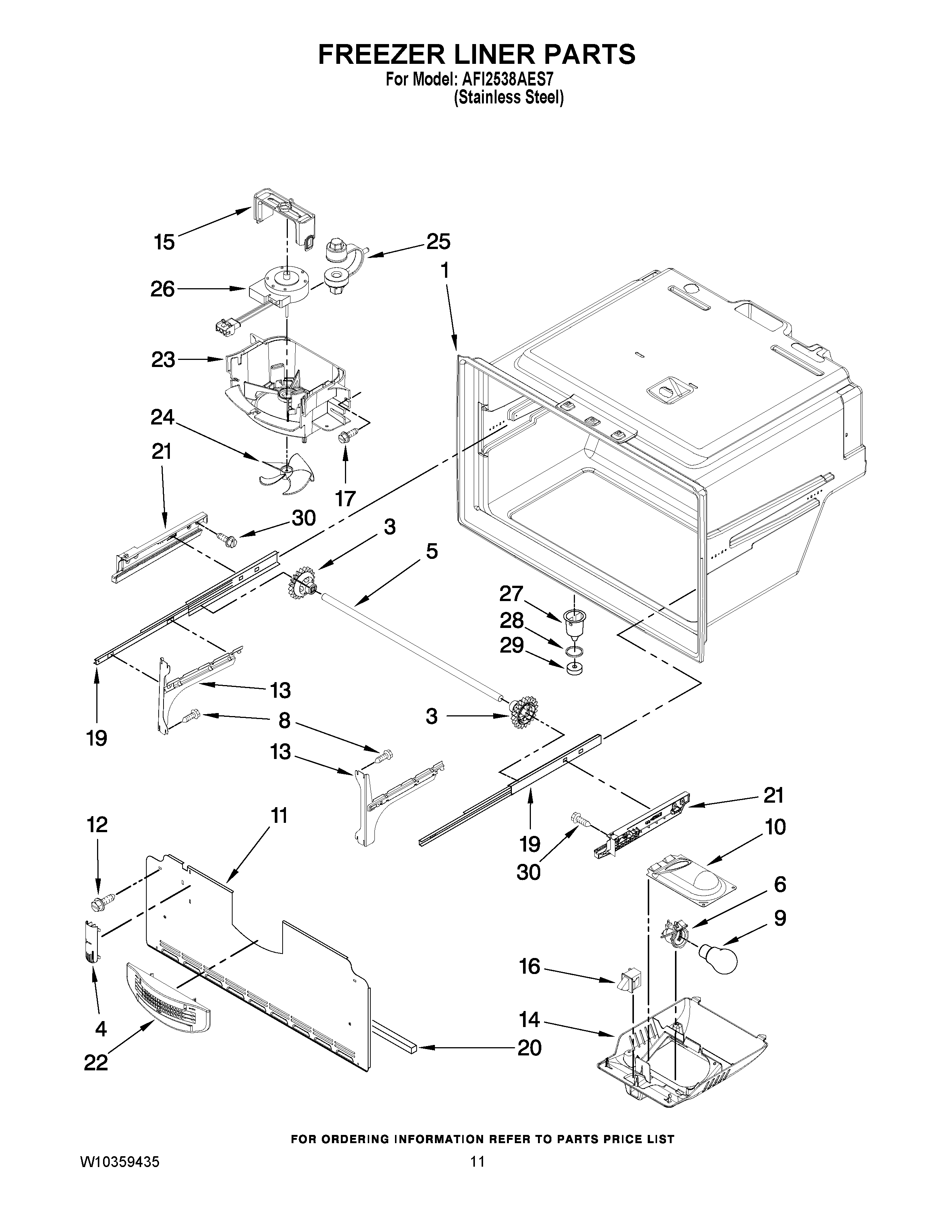

AFI2538AES7 06 – FREEZER LINER PARTS

Products

Position	Product
NI	HARNESS, FZ LIGHT (INCLUDES THERMISTOR)
1	LINER (NOT A SERVICEABLE PART)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12815301
5	SHAFT
6	MAY 12570701SP
8	Screw (8)
9	MAY 2255743
10	MAY 12476401SP
11	COVER, EVAP
12	SCREW (10)
13	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MAY 13027902SP
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
19	MAY W10120018
20	GASKET, BOTTOM
21	MAY W10284682
21	MAY W10284683
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10162809
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	Screw (6)
