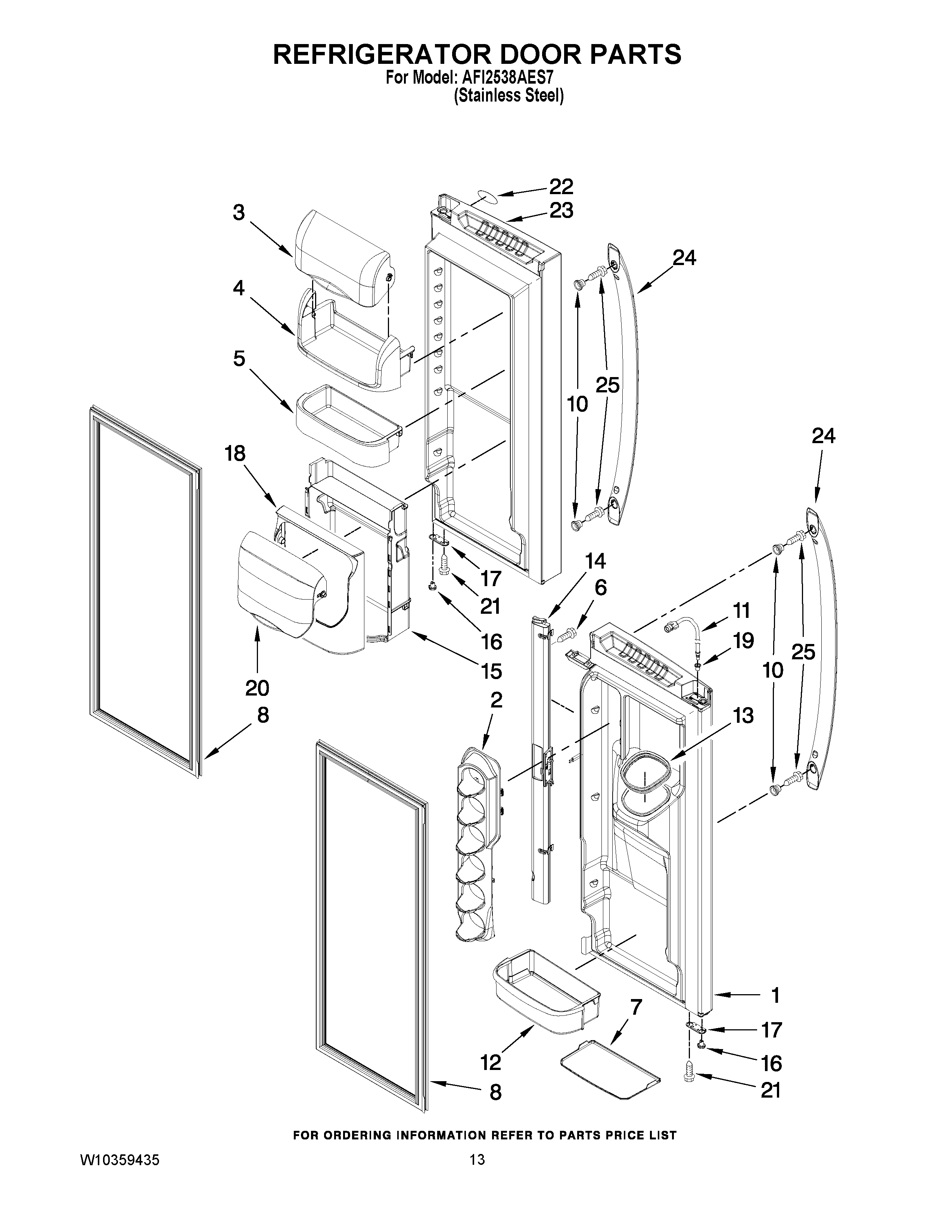

AFI2538AES7 07 – REFRIGERATOR DOOR PARTS

AFI2538AES7 07 – REFRIGERATOR DOOR PARTS

Written by

in

AFI2538AES7 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	MAY 12922301
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12945801SP
6	Screw (4)
7	GRIPPER-MED & LRG.
8	MAY W10163898
10	MAY 13001201
11	MAY W10275942
12	BIN, SHELF (GALLON)
13	MAY 12665101SP
14	MAY 12722813BKV
15	MAY 12945601SP
16	MAY 12028505B
17	MAY 12968202B
18	MAY 12945501SP
19	MAY 12996601
20	MAY 12945701SP
21	MAY 12990504
22	STAINLESS
23	DOOR, RIGHT (BLACK)
24	Handle (Stainless Steel)
25	SCREW
