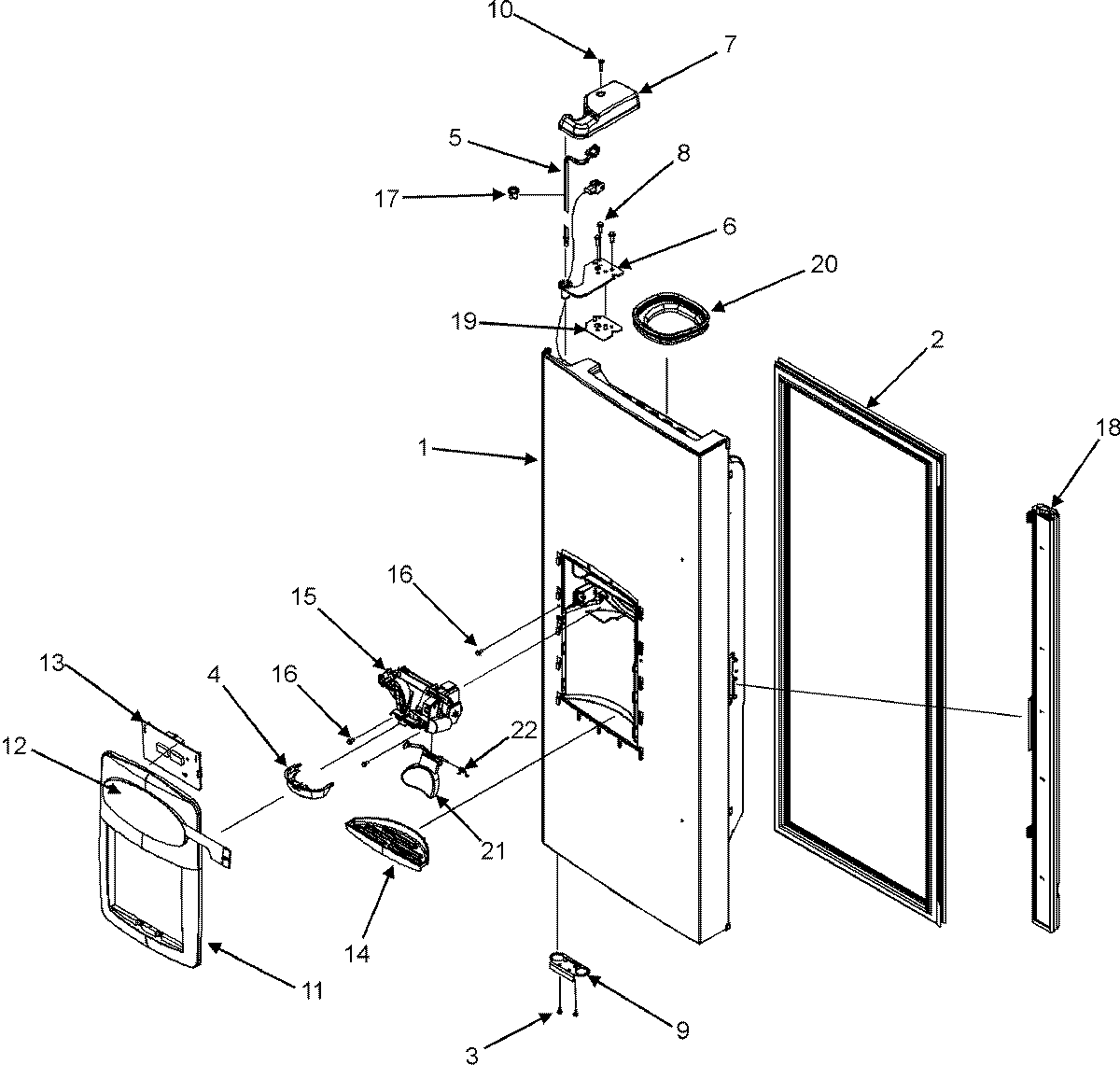

AFI2538AEW 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

AFI2538AEW 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Written by

in

AFI2538AEW 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Products

PositionProduct
1MAY 67007124
2W11396037 Whirlpool Door Gasket
3WP98165 Whirlpool Screw
467006295 Whirlpool Refrigerator Target Ring
512962106 Whirlpool Refrigerator Waterline Door
6MAY 67005950
7WPW10337634 Whirlpool Refrigerator Cover
9STOP, DOOR (WHT)
10WP8281196 Whirlpool Screw
11MAY 67006396
11Screw (8)
1213035901W Whirlpool Refrigerator Overlay
1367006294 Whirlpool Control Board + Core
14MAY 67006394
15MAY 67006298
16WP489349 Whirlpool Refrigerator Screw
1712996601 Whirlpool Refrigerator Bushing Clip
18WP12722813W Whirlpool Refrigerator Mullion Rail
18SCREW-TF/HEX ROHS
1912999501 Whirlpool Refrigerator Hinge Shim
20MAY 12665101
