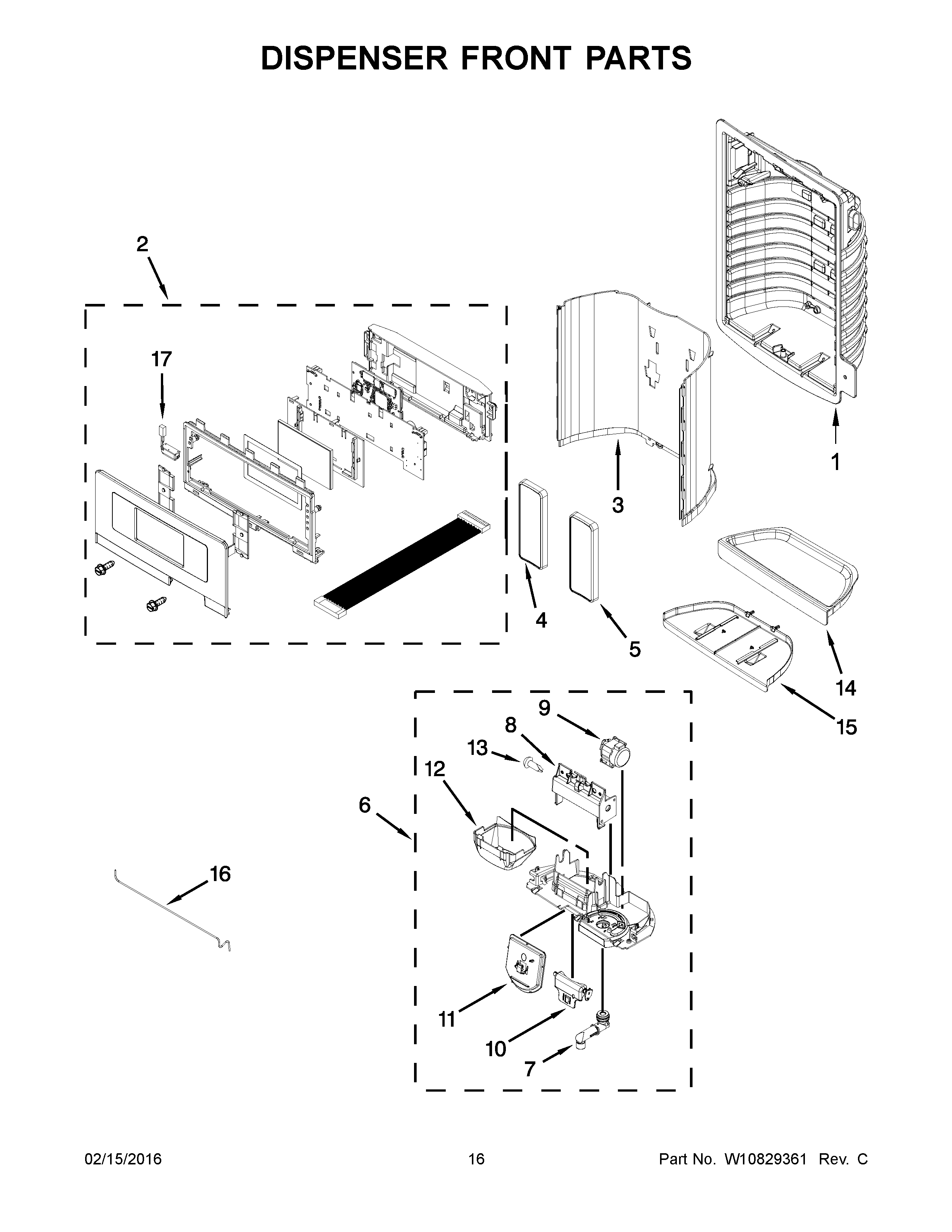

AFI2539ERB00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, USER INTERFACE
3AFALSE WALL, DISPENSER (BLACK)
3BFALSE, WALL, DISPENSER (STAINLESS)
3FALSE WALL, DISPENSER (WHITE)
4BPAD, ICE (GREY)
4PAD, ICE (WHITE)
4AMAY W10334798
5PAD, WATER (WHITE)
5BPAD, WATER (GREY)
5APAD, WATER (BLACK)
6MAY W10353552
7MAY 2316647
8MAY W10174827
9MAY W10205979
10MAY W10346124
11DOOR, ICE
12GUIDE, ICE
13CLIP, MOTOR COUPLING
14MAY W10267869
14AMAY W10267870
14BTRAY, DISPENSER STAINLESS
15ASLIDE, TRAY DISPENSER (BLACK)
15MAY W10267860
15BSLIDE, TRAY DISPENSER (GREY)
16MAY W10511930
17MAY W10238083
