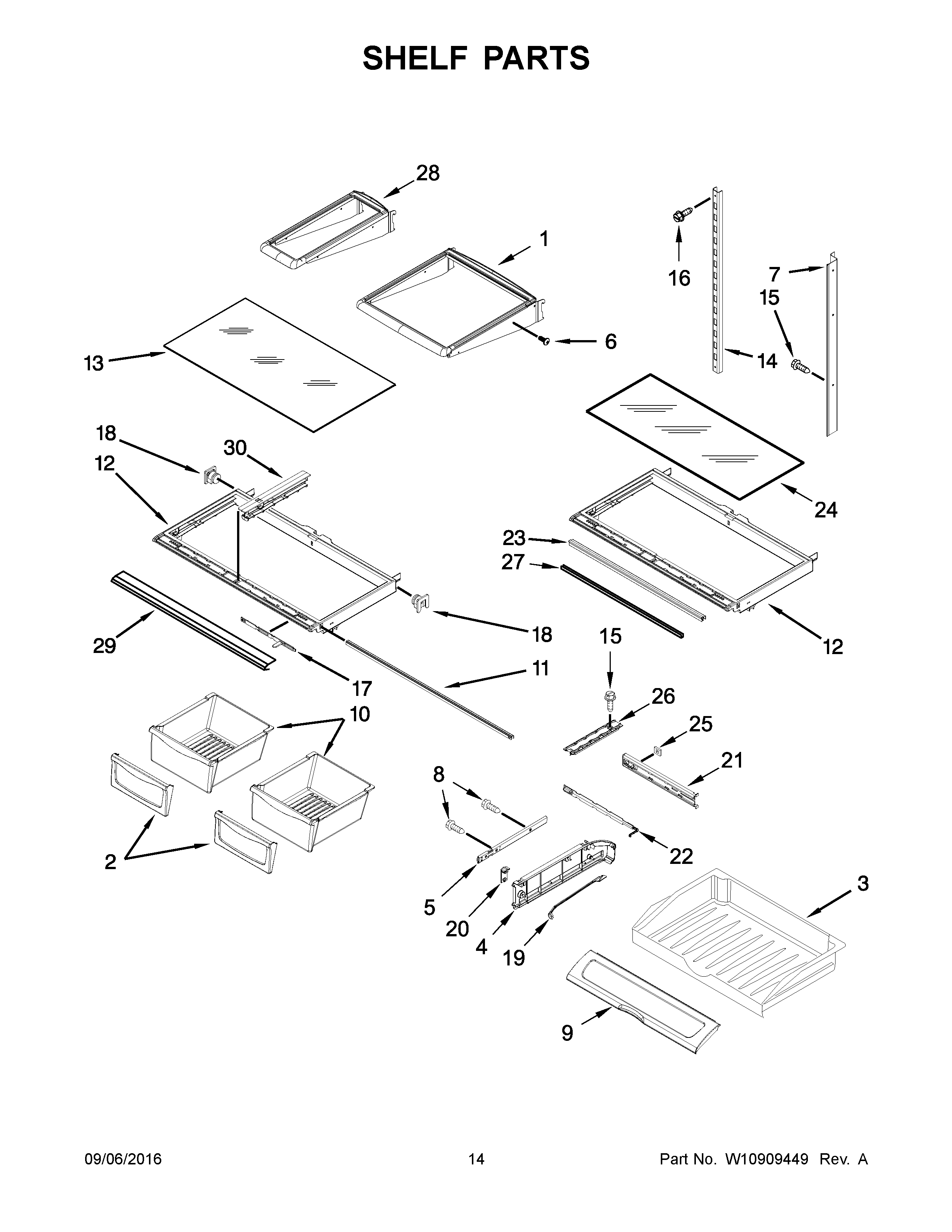

AFI2539ERB01 08 – SHELF PARTSadmin2025-04-26T09:27:59+00:00AFI2539ERB01 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | SHELF, GLIDE |
| 2 | FRONT-CRISPER PAN |
| 3 | MAY 12731302 |
| 4A | ENDCAP, PANTRY (RIGHT HAND) |
| 4 | ENDCAP, PANTRY (LEFT HAND) |
| 5 | MAY W10235370 |
| 6 | Screw (4) |
| 7A | LADDER, SIDE RH |
| 7 | LADDER, SIDE LH |
| 8 | MAY 12990504 |
| 9 | DOOR, PANTRY DRAWER |
| 10 | MAY 12804601SP |
| 11 | Brace, Crisper (2) |
| 12 | MAY W10329866 |
| 13 | GLASS, CRISPER COVER |
| 14 | MAY W10273464 |
| 15 | MAY 12990513 |
| 16 | SCREW (2) |
| 17 | MAY 12530805SP |
| 18 | MAY 13062602 |
| 19 | ROD, TEMPERATURE CONTROL |
| 20 | KNOB, TEMP CONTROL |
| 21 | MAY 12656202 |
| 22 | SLIDE, TEMPERATURE |
| 23 | SUPPORT, GLASS |
| 24 | GLASS, PANTRY |
| 25 | MAY 12656901 |
| 26 | TRACK, PANTRY |
| 27 | MAY 12227305WH |
| 28 | SHELF-MINI |
| 29 | MAY W10313178N |
| 30 | RAIL, CENTER CRISPER FRAME |
