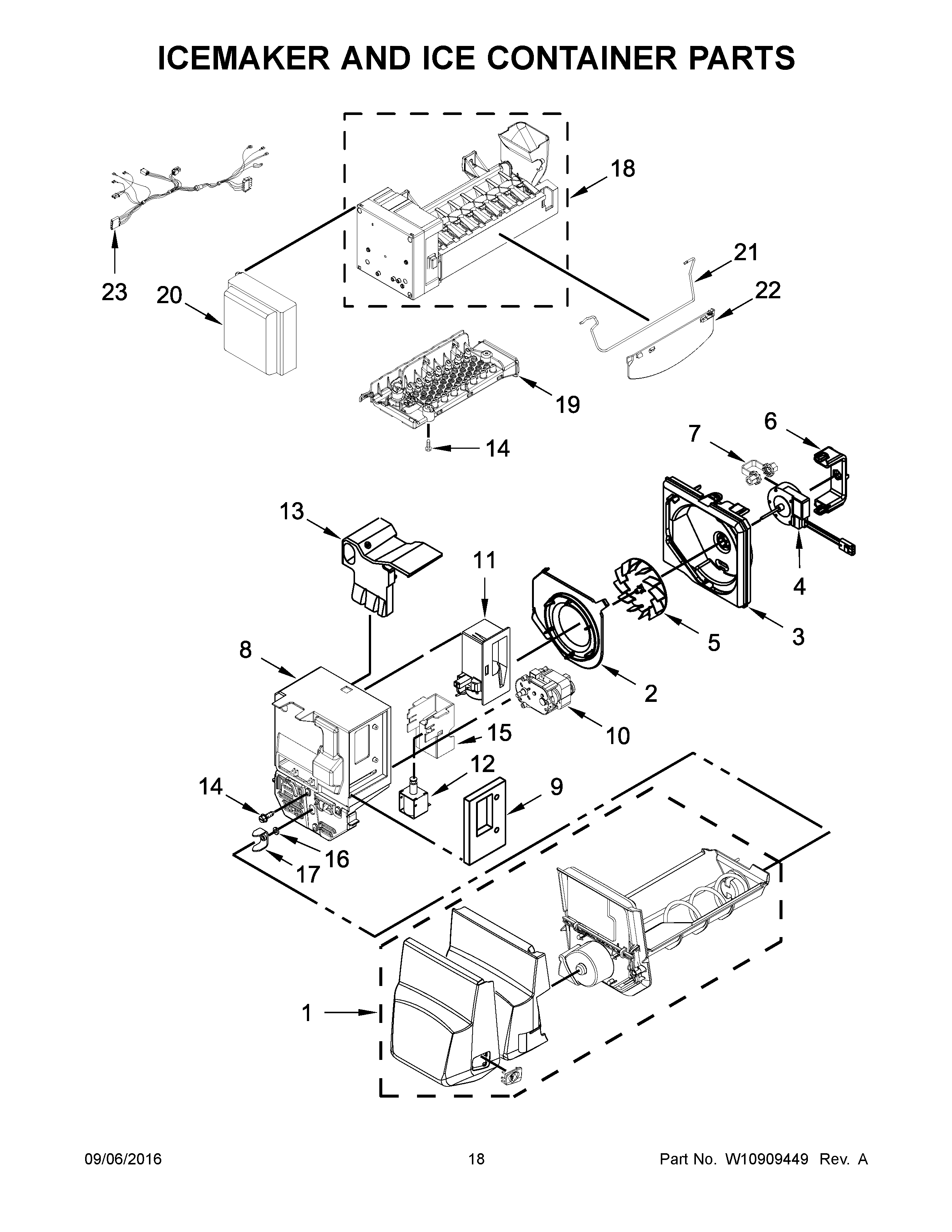

AFI2539ERB01 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1MAY W10562191
2MAY W10121282
3MAY W10309863
4MAY W10308033
5MAY W10123444
6MAY 12956603
7MAY W10151687
8MAY W10309864
9MAY 12920001
10MAY W10309868
11DAMPER, CONTROL
12ASSEMBLY, SOLENOID
13MAY W10118612
14SCREW (10)
15MAY W10346971
16WASHER
17YOKE, ICE (DISPENSER)
18MAY W10300024
19IMPINGER ASSY.
20MAY W10290556
21MAY W10175514
22MAY W10351019
23MAY W10826037
