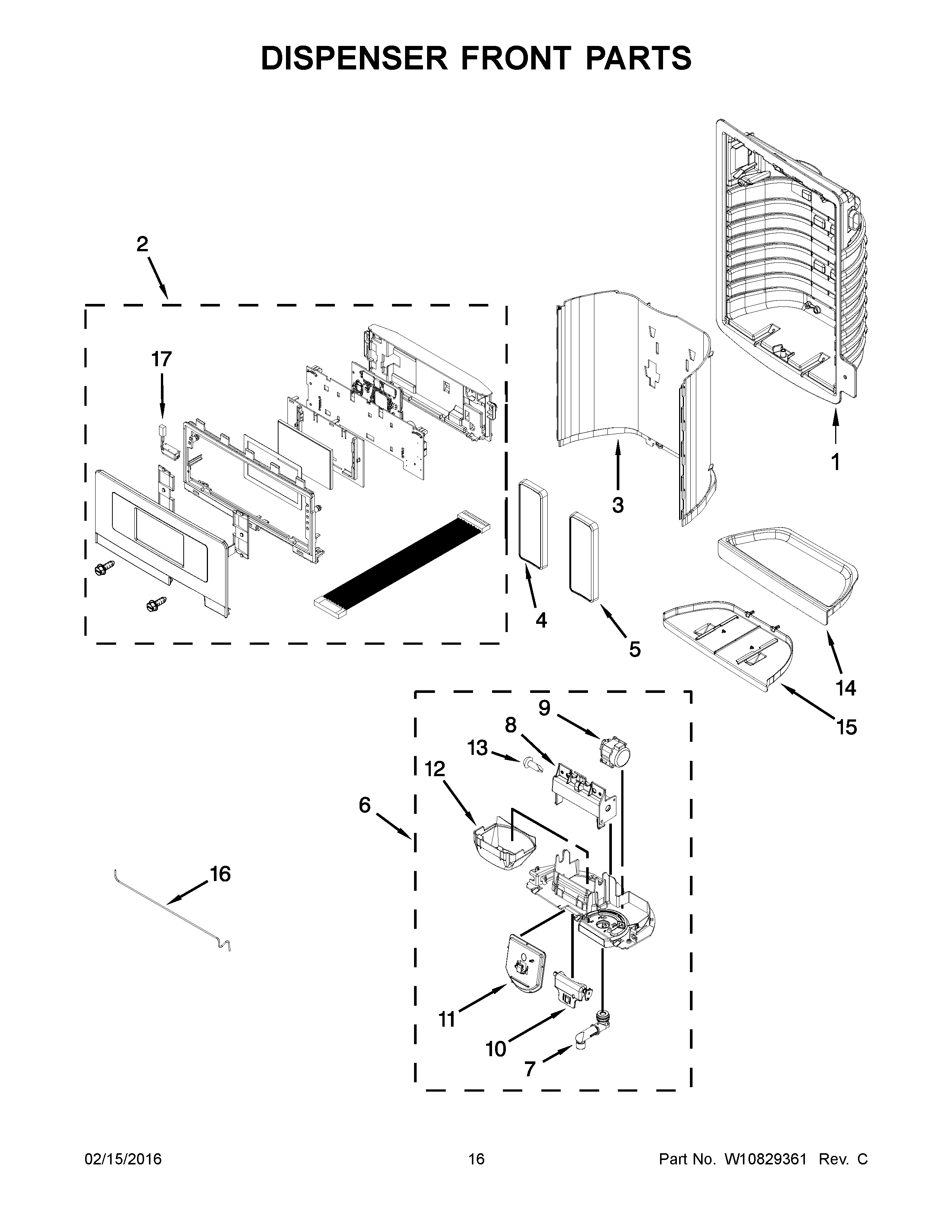

AFI2539ERM00 09 – DISPENSER FRONT PARTSadmin2025-04-26T09:23:25+00:00AFI2539ERM00 09 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | ASSEMBLY, USER INTERFACE |
| 3A | FALSE WALL, DISPENSER (BLACK) |
| 3B | FALSE, WALL, DISPENSER (STAINLESS) |
| 3 | FALSE WALL, DISPENSER (WHITE) |
| 4B | PAD, ICE (GREY) |
| 4 | PAD, ICE (WHITE) |
| 4A | MAY W10334798 |
| 5 | PAD, WATER (WHITE) |
| 5B | PAD, WATER (GREY) |
| 5A | PAD, WATER (BLACK) |
| 6 | MAY W10353552 |
| 7 | MAY 2316647 |
| 8 | MAY W10174827 |
| 9 | MAY W10205979 |
| 10 | MAY W10346124 |
| 11 | DOOR, ICE |
| 12 | GUIDE, ICE |
| 13 | CLIP, MOTOR COUPLING |
| 14 | MAY W10267869 |
| 14A | MAY W10267870 |
| 14B | TRAY, DISPENSER STAINLESS |
| 15A | SLIDE, TRAY DISPENSER (BLACK) |
| 15 | MAY W10267860 |
| 15B | SLIDE, TRAY DISPENSER (GREY) |
| 16 | MAY W10511930 |
| 17 | MAY W10238083 |
