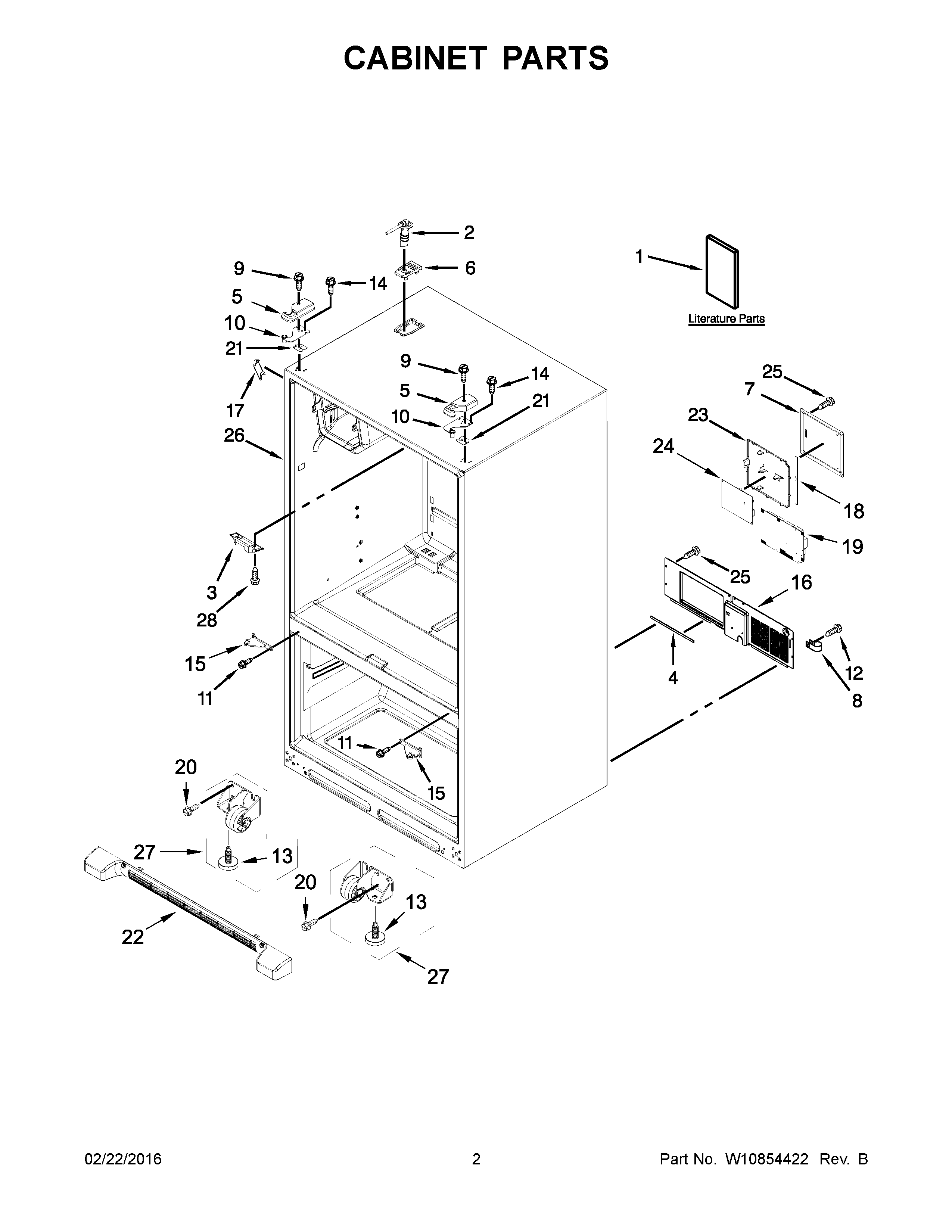

AFI2539ERM01 02 – CABINET PARTS

Products

Position	Product
1C	MAY W10800825
1	MAY W10826081
1A	MAY W10826085
1B	OWNERS MANUAL
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5A	MAY 12962302AP
5	COVER, TOP HINGE (LEFT) (GREY)
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963204ED
10A	MAY 12963205ED
11	MAY W10339086
12	SCREW (10)
13	Brake, Foot
14	SCREW (6)
15	HINGE, CENTER (LT) (GREY)
15A	HINGE, CENTER (RT) (GREY)
16	MAY W10270394
17	COVER, CORNER (GREY)
18	GASKET-HV BOX
19	MAY W10438707
20	Screw (8)
21A	MAY 12999502
21	MAY 12999501
22	MAY W10534155
23	MAY W10296541
24	CONTROL, ELECTRONIC (POWER SUPPLY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSEMBLY (LEFT HAND)
27A	ROLLER ASSEMBLY (RIGHT HAND)
28	Screw (4)
