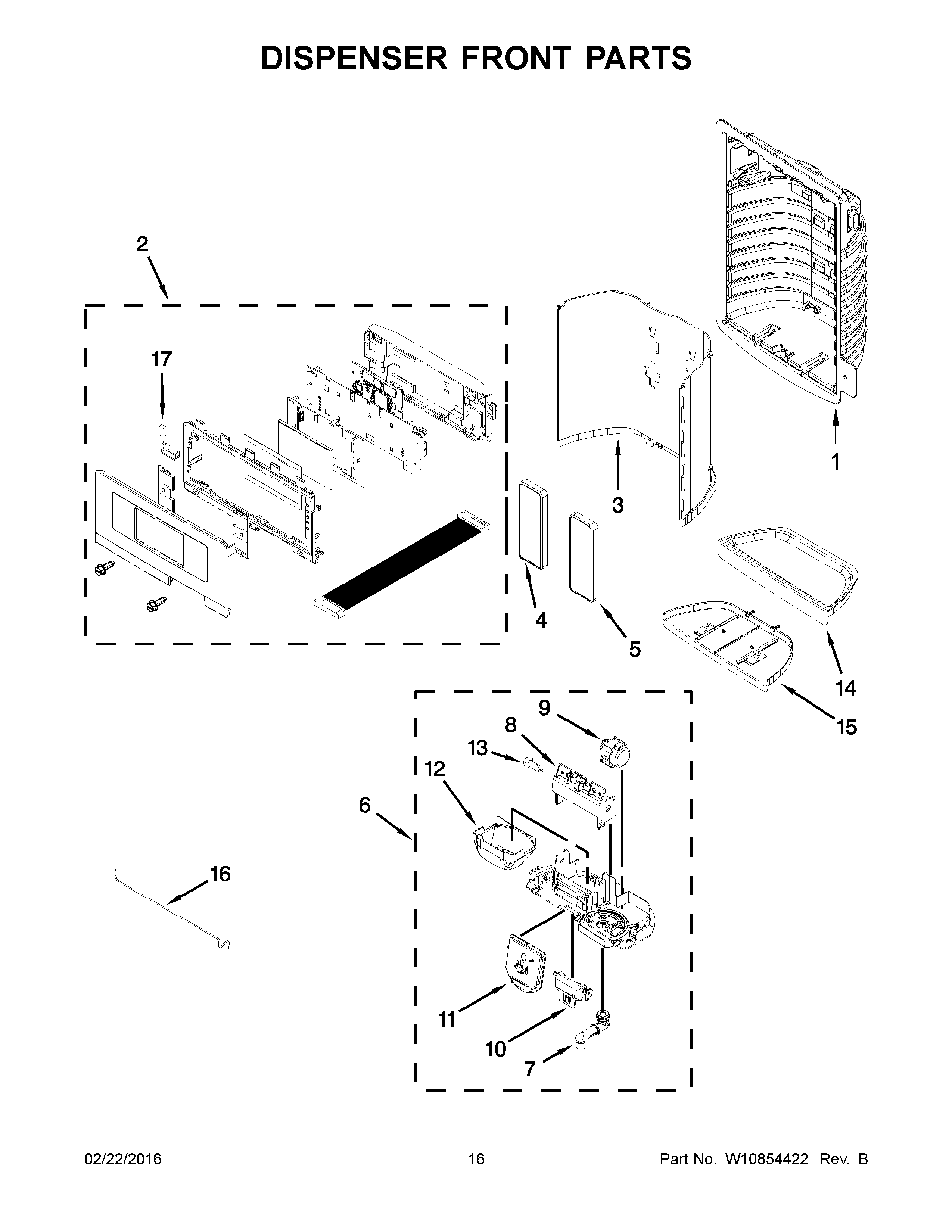

AFI2539ERM01 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	ASSEMBLY, USER INTERFACE
3	FALSE, WALL, DISPENSER (STAINLESS)
4	PAD, ICE (GREY)
5	PAD, WATER (GREY)
6	MAY W10353552
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	MAY W10346124
11	DOOR, ICE
12	GUIDE, ICE
13	CLIP, MOTOR COUPLING
14	TRAY, DISPENSER STAINLESS
15	SLIDE, TRAY DISPENSER (GREY)
16	MAY W10511930
17	MAY W10238083
