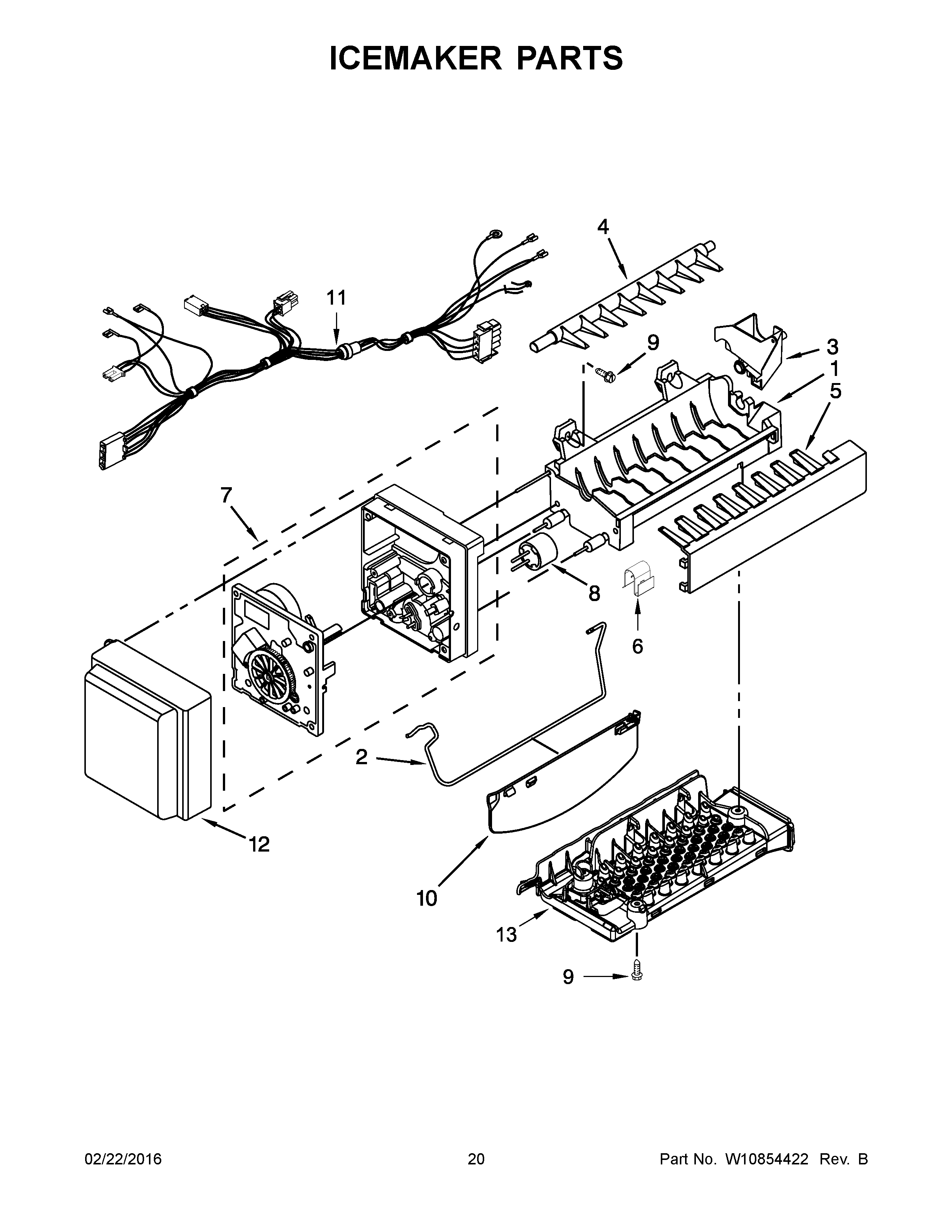

AFI2539ERM01 11 – ICEMAKER PARTS

Written by

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	MAY W10699925
6	Clip
7	ASSEMBLY, MODULE
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	SCREW (10)
10	MAY W10351019
11	MAY W10404016
12	COVER, FRONT
13	IMPINGER ASSY.
100	ASSEMBLY, ICEMAKER
