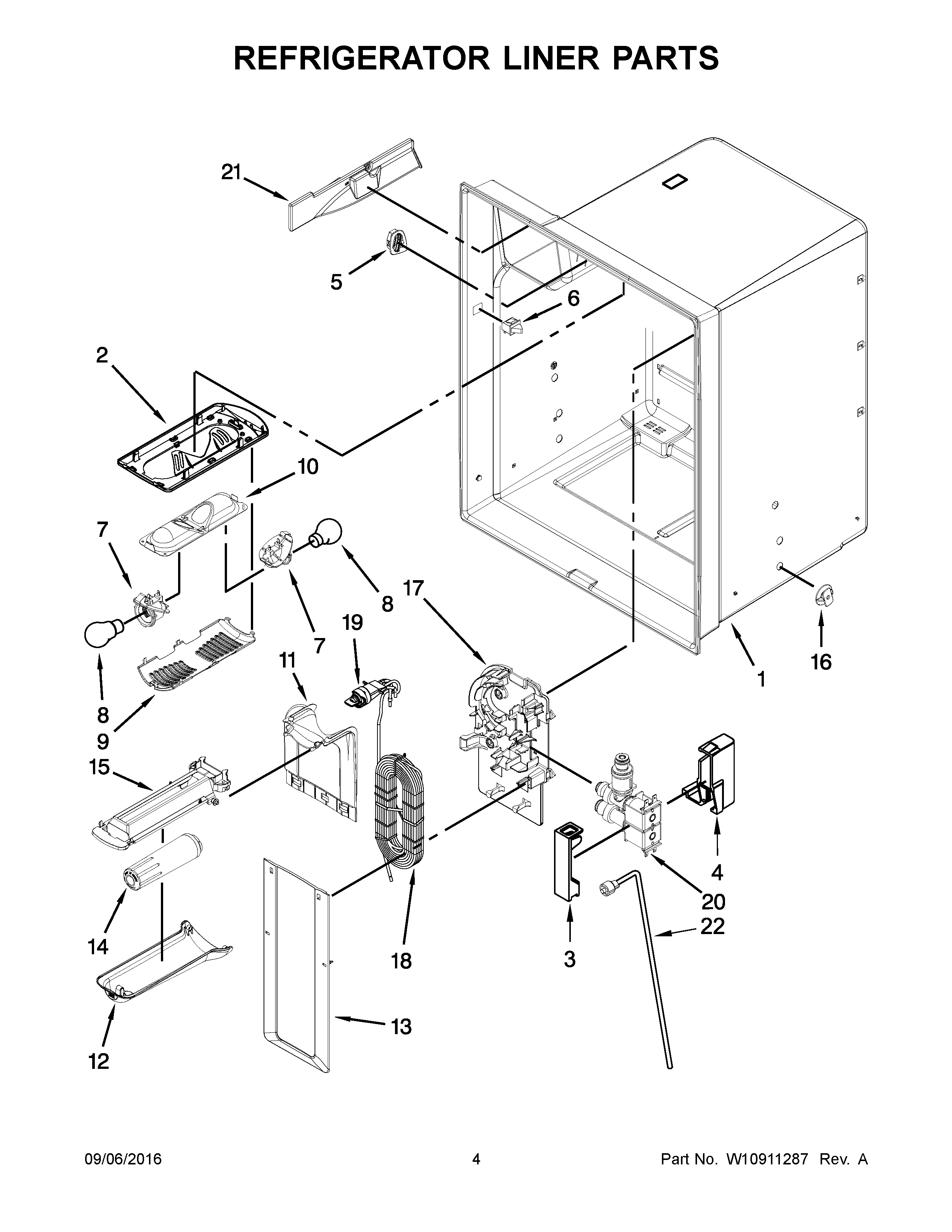

AFI2539ERM02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10468891
3	MAY W10118194
4	MAY W10118193
5	MAY W10555981
6	SWITCH, LIGHT
7	Socket, Light
8	MAY W10820003
9	MAY 12905902
10	MAY W10443023
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY W10735404
15	MAY 12955901
16	MOUNT, CRISPER
17	BRACKET, WATER TANK AND VALVE
18	ASSEMBLY, WATER TANK AND HEAD (INCLUDES BYPASS CARTRIDGE)
19	MAY 12664501SP
20	MAY W10312696
21	MAY W10309869
22	MAY W10444033
