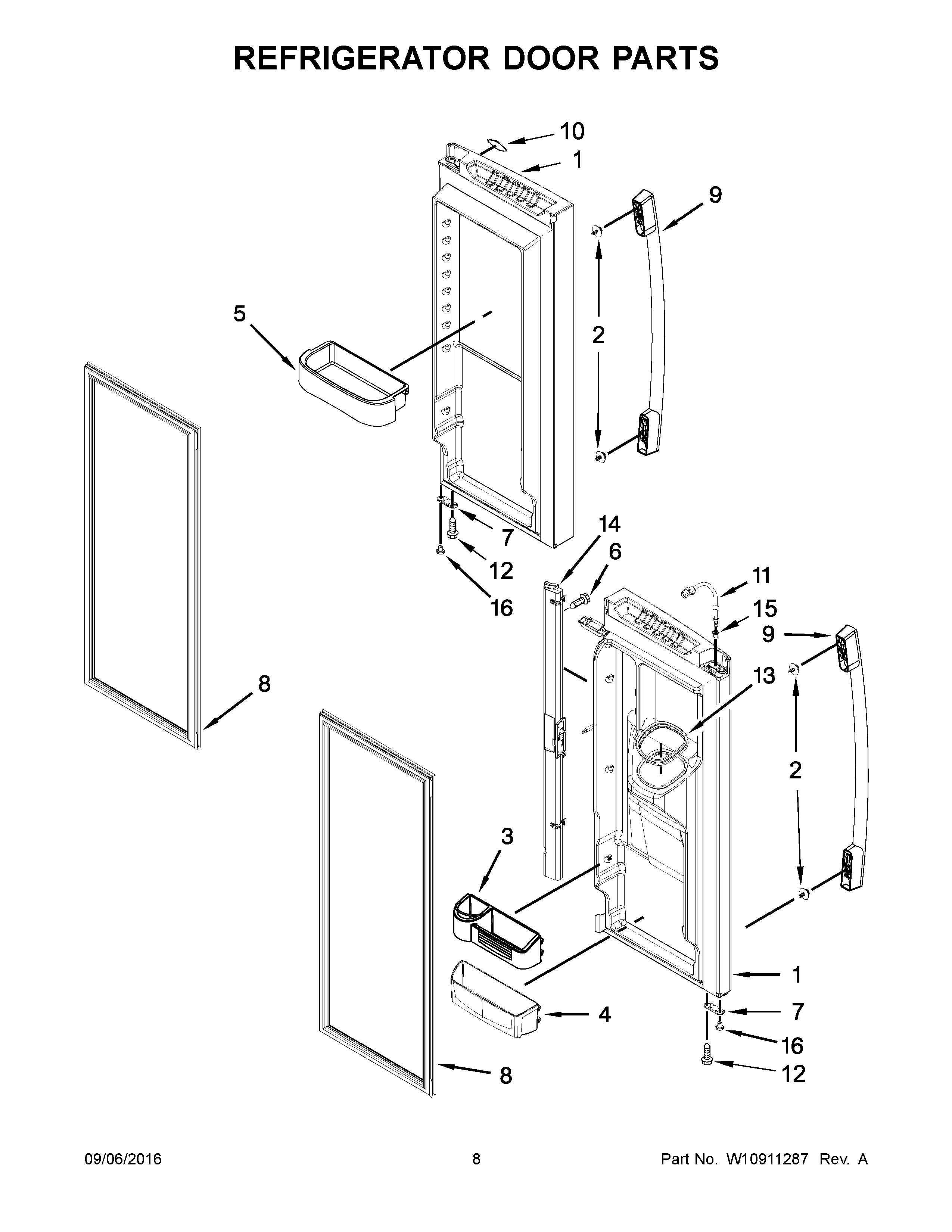

AFI2539ERM02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ADOOR, RIGHT (STAINLESS)
1MAY 13107322S
2MAY W10288153
3MAY W10323808
4MAY W10212139
5MAY W10224961
6MAY 12990204
7MAY 12968202AP
8GASKET, DOOR RIGHT HAND (GREY)
9MAY W10223019
10BADGE
11MAY W10511930
12Screw (8)
13MAY W10287601
14MULLION, DOOR STAINLESS
15MAY 12996601
16MAY 12028505AP
