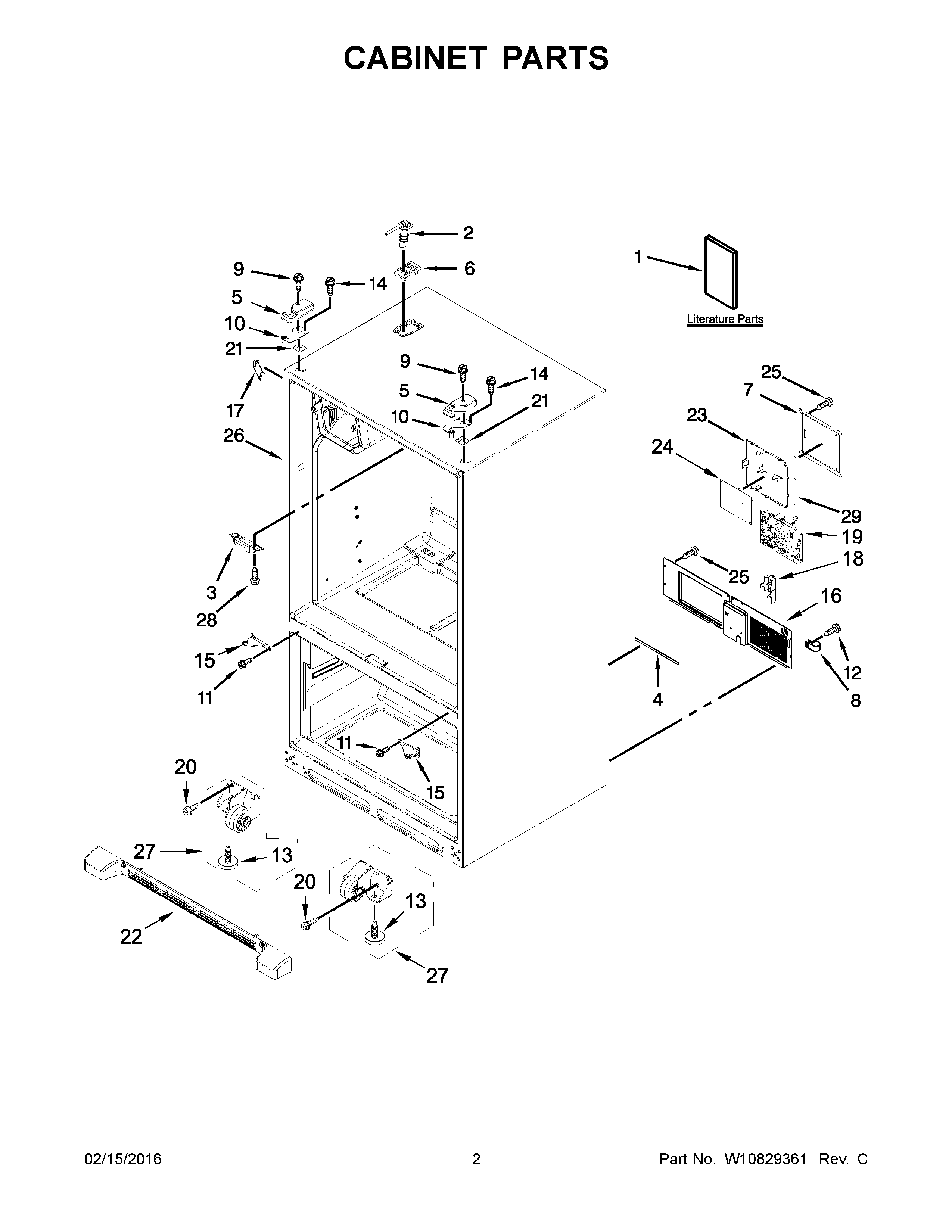

AFI2539ERW00 02 – CABINET PARTSadmin2025-04-26T09:25:17+00:00AFI2539ERW00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1C | MAY W10800825 |
| 1 | MAY W10826081 |
| 1B | OWNERS MANUAL |
| 1A | MAY W10826085 |
| 2 | Tube W/Waterline, Fill-IM |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5E | MAY 12962302AP |
| 5B | COVER, TOP HINGE (LEFT) (GREY) |
| 5D | MAY 12962302B |
| 5A | COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK) |
| 5 | MAY W10337634 |
| 5C | MAY 12962302W |
| 6 | MAY 12981401W |
| 6B | MAY 12981401AP |
| 6A | MAY 12981401B |
| 7 | MAY 12961602 |
| 8 | CLAMP, TUBE |
| 9 | MAY 12992602 |
| 10A | MAY 12963205ED |
| 10 | MAY 12963204ED |
| 11 | MAY W10339086 |
| 12 | SCREW (10) |
| 13 | Brake, Foot |
| 14 | SCREW (6) |
| 15E | HINGE, CENTER (RT) (GREY) |
| 15D | HINGE, CENTER (BLACK, RIGHT ) |
| 15A | HINGE, CENTER (BLACK, LEFT) |
| 15B | HINGE, CENTER (LT) (GREY) |
| 15 | Hinge, Center (LT) (White) |
| 15C | Hinge, Center (RT) (White) |
| 16 | MAY W10270394 |
| 17A | COVER, CORNER (BLACK) |
| 17B | COVER, CORNER (GREY) |
| 17 | Cover, Corner (2) (White) |
| 18 | GUARD-WATER VALVE |
| 19 | MAY W10438707 |
| 20 | Screw (8) |
| 21A | MAY 12999502 |
| 21 | MAY 12999501 |
| 22 | GRILLE, TOE (WHITE) |
| 22B | MAY W10534155 |
| 22A | GRILLE, TOE (BLACK) |
| 23 | MAY W10296541 |
| 24 | CONTROL, ELECTRONIC (POWER SUPPLY) |
| 25 | SCREW |
| 26 | LINER (NOT A SERVICEABLE PART) |
| 27 | ROLLER ASSEMBLY (LEFT HAND) |
| 27A | ROLLER ASSEMBLY (RIGHT HAND) |
| 28 | Screw (4) |
| 29 | GASKET-HV BOX |
