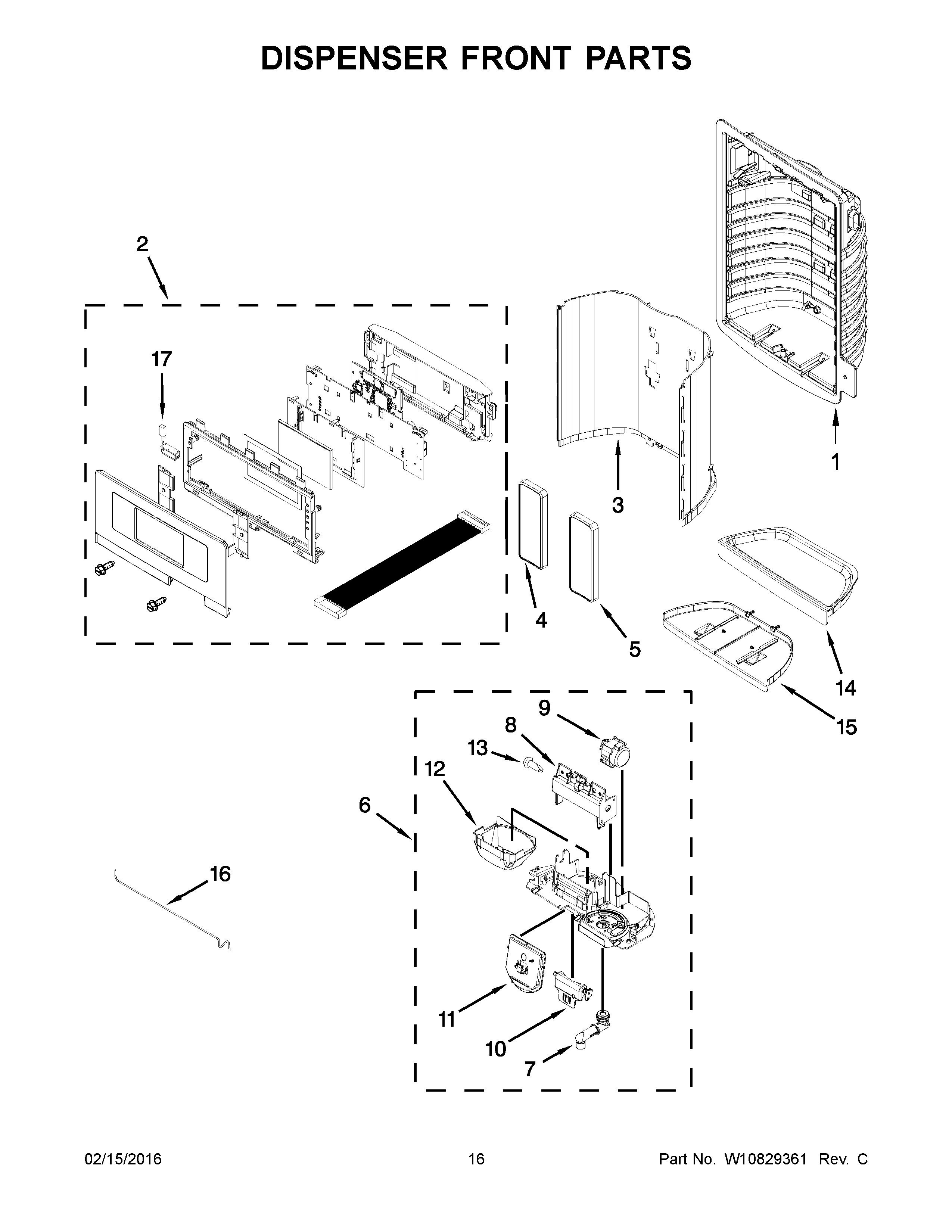

AFI2539ERW00 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	ASSEMBLY, USER INTERFACE
3A	FALSE WALL, DISPENSER (BLACK)
3B	FALSE, WALL, DISPENSER (STAINLESS)
3	FALSE WALL, DISPENSER (WHITE)
4B	PAD, ICE (GREY)
4	PAD, ICE (WHITE)
4A	MAY W10334798
5	PAD, WATER (WHITE)
5B	PAD, WATER (GREY)
5A	PAD, WATER (BLACK)
6	MAY W10353552
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	MAY W10346124
11	DOOR, ICE
12	GUIDE, ICE
13	CLIP, MOTOR COUPLING
14	MAY W10267869
14A	MAY W10267870
14B	TRAY, DISPENSER STAINLESS
15A	SLIDE, TRAY DISPENSER (BLACK)
15	MAY W10267860
15B	SLIDE, TRAY DISPENSER (GREY)
16	MAY W10511930
17	MAY W10238083
