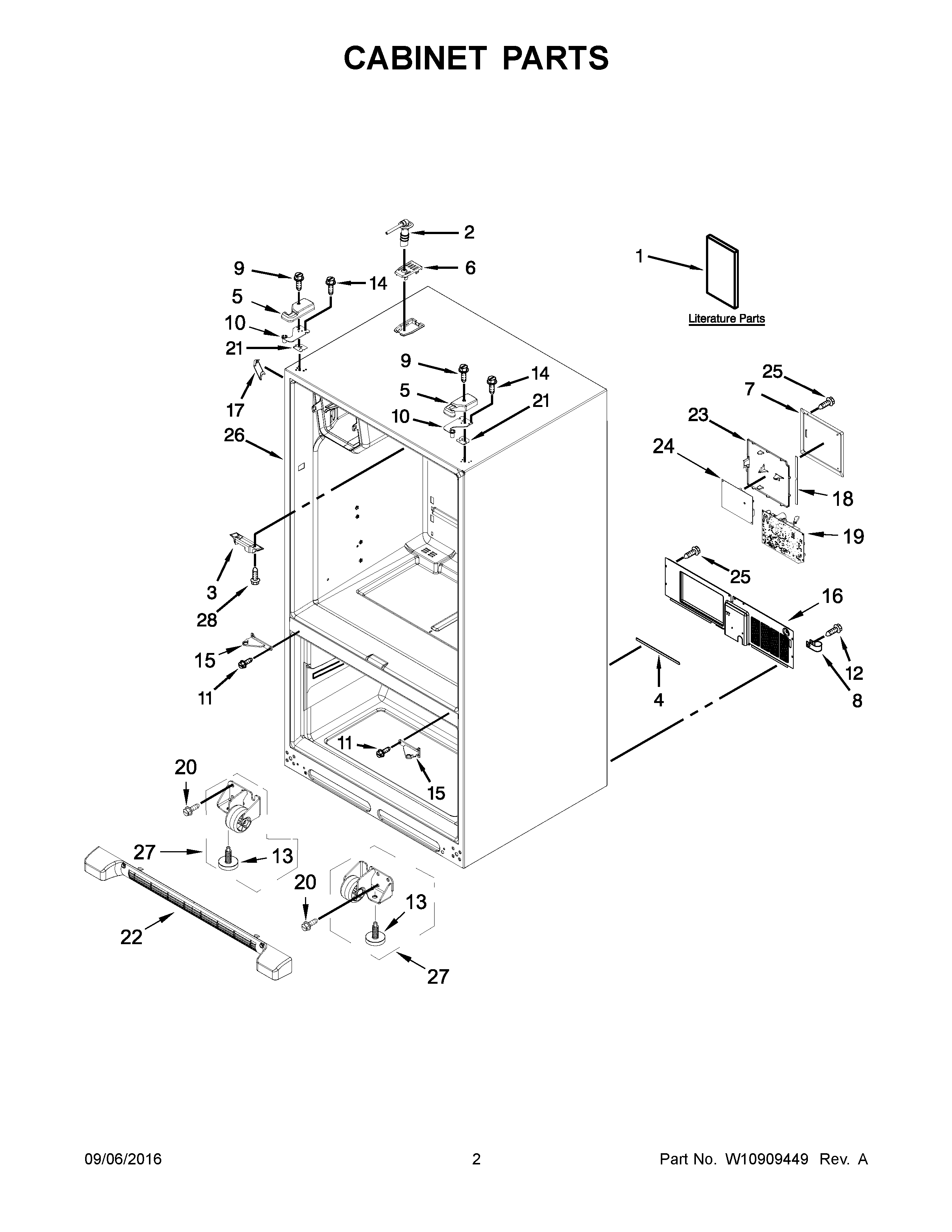

AFI2539ERW01 02 – CABINET PARTS

Products

Position	Product
1B	OWNERS MANUAL
1C	MAY W10800825
1	MAY W10826081
1A	MAY W10826085
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5A	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
5C	MAY 12962302B
5B	MAY 12962302W
5	MAY W10337634
6A	MAY 12981401B
6	MAY 12981401W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10A	MAY 12963205ED
10	MAY 12963204ED
11	MAY W10673840
12	SCREW (10)
13	Brake, Foot
14	SCREW (6)
15B	Hinge, Center (RT) (White)
15A	HINGE, CENTER (BLACK, LEFT)
15C	HINGE, CENTER (BLACK, RIGHT )
15	Hinge, Center (LT) (White)
16	MAY W10270394
17	Cover, Corner (2) (White)
17A	COVER, CORNER (BLACK)
18	GASKET-HV BOX
19	MAY W10438707
20	MAY W10709365
21	MAY 12999501
21A	MAY 12999502
22A	GRILLE, TOE (BLACK)
22	GRILLE, TOE (WHITE)
23	MAY W10296541
24	CONTROL, ELECTRONIC (POWER SUPPLY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27A	ROLLER ASSEMBLY (RIGHT HAND)
27	ROLLER ASSEMBLY (LEFT HAND)
28	Screw (4)
