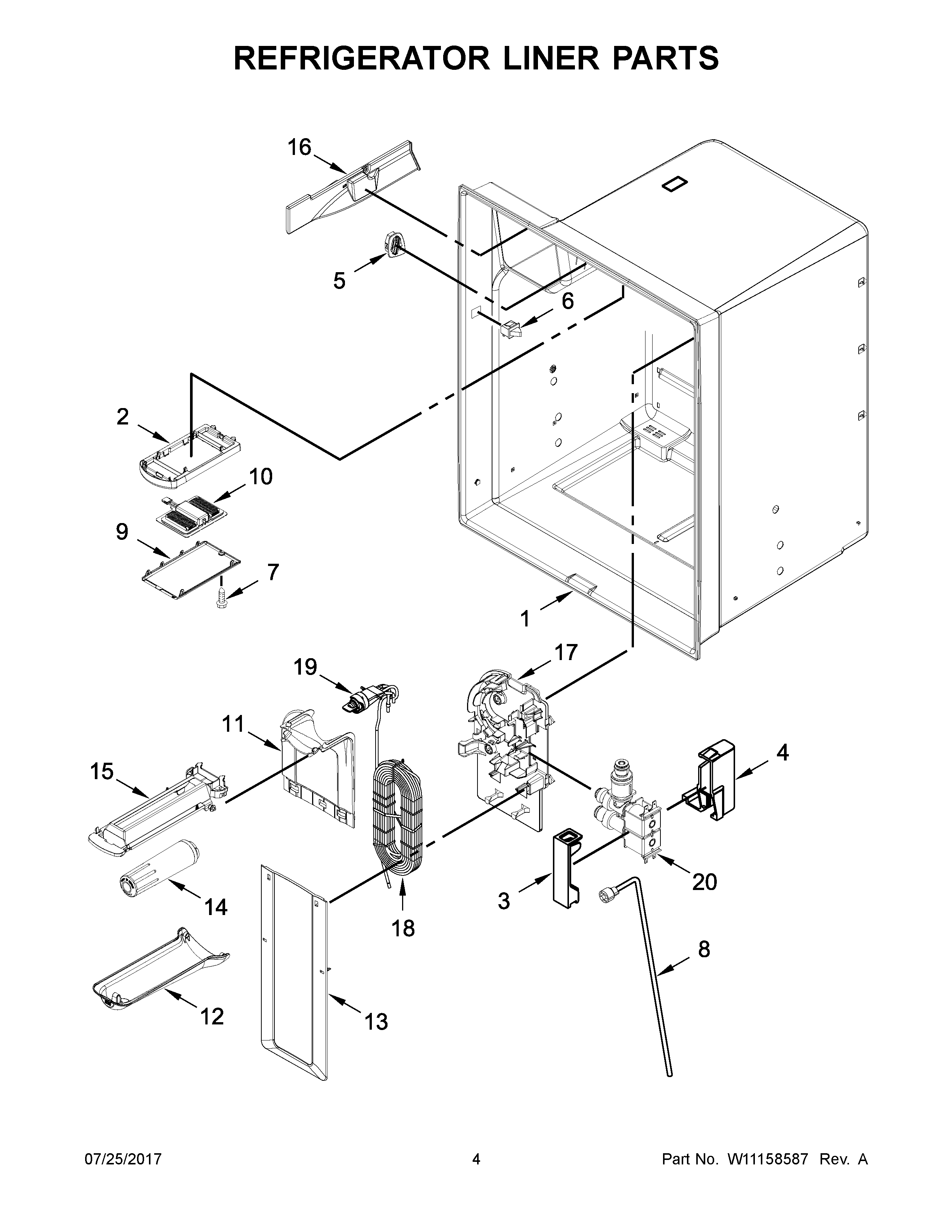

AFI2539ERW02 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2HOUSING, REFRIGERATOR LED
3MAY W10118194
4MAY W10118193
5ASSEMBLY, AIR GRILLE
6SWITCH, LIGHT
7SCREW (STAINLESS)
8MAY W10444033
9LENS, RC LED
10MODULE, LED LIGHT
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY W10735404
15MAY 12955901
16MAY W10309869
17BRACKET, WATER TANK AND VALVE
18ASSEMBLY, WATER TANK AND HEAD (INCLUDES BYPASS CARTRIDGE)
19MAY 12664501SP
20VALVE, WATER INLET
