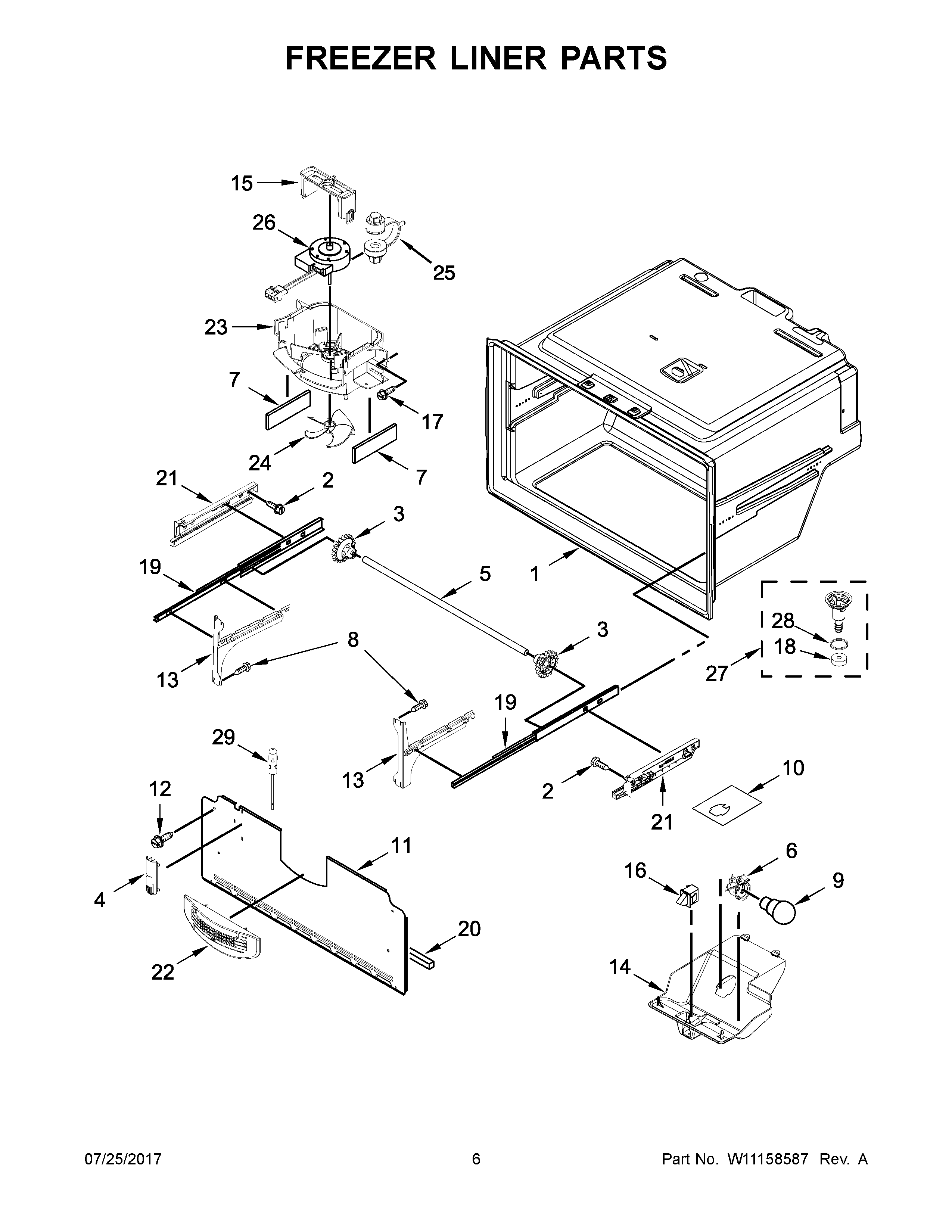

AFI2539ERW02 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Screw (6)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12815301
5	MAY W10802332
6	W11447232 Whirlpool Refrigerator Socket
7	Gasket, Bottom
8	Screw (8)
9	LAMP, LED
10	FOIL-FZ LIGHT
11	COVER, EVAP
12	SCREW (10)
13	MAY W10330991
13A	MAY W10330993
14	MODULE, FREEZER LIGHT
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
18	Gasket
19	MAY W10120018
20	GASKET, BOTTOM
21A	MAY W10284683
21	MAY W10284682
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MOTOR, EVAPORATOR (INCLUDES HEATER HARNESS)
27	MAY W10662407
28	MAY M0500703
29	THERMISTOR
