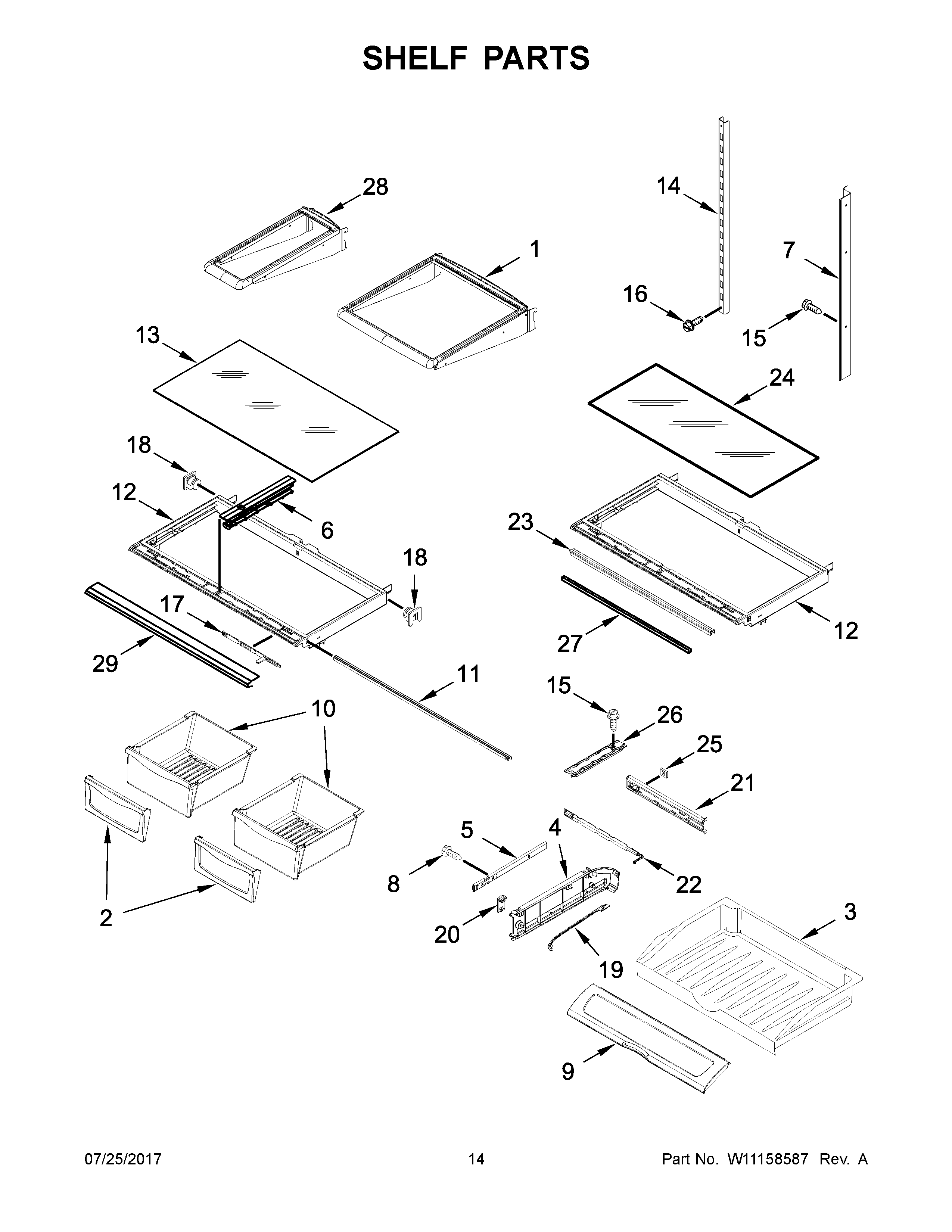

AFI2539ERW02 08 – SHELF PARTS

AFI2539ERW02 08 – SHELF PARTS

Written by

in

AFI2539ERW02 08 – SHELF PARTS

Products

PositionProduct
1SHELF, GLIDE
2FRONT-CRISPER PAN
3MAY 12731302
4AENDCAP, PANTRY (RIGHT HAND)
4ENDCAP, PANTRY (LEFT HAND)
5MAY W10235370
6RAIL, CENTER CRISPER FRAME
7LADDER, SIDE LH
7ALADDER, SIDE RH
8MAY 12990504
9DOOR, PANTRY DRAWER
10MAY 12804601SP
11Brace, Crisper (2)
12MAY W10329866
13GLASS, CRISPER COVER
14MAY W10273464
15MAY 12990513
16SCREW (2)
17MAY 12530805SP
18MAY 13062602
19ROD, TEMPERATURE CONTROL
20KNOB, TEMP CONTROL
21MAY 12656202
22SLIDE, TEMPERATURE
23SUPPORT, GLASS
24GLASS, SHELF
25MAY 12656901
26TRACK, PANTRY
27MAY 12227305WH
28SHELF-MINI
29MAY W10313178N
