AFP15DAE1 2 – Aparts

AFP15DAE1 2

Products

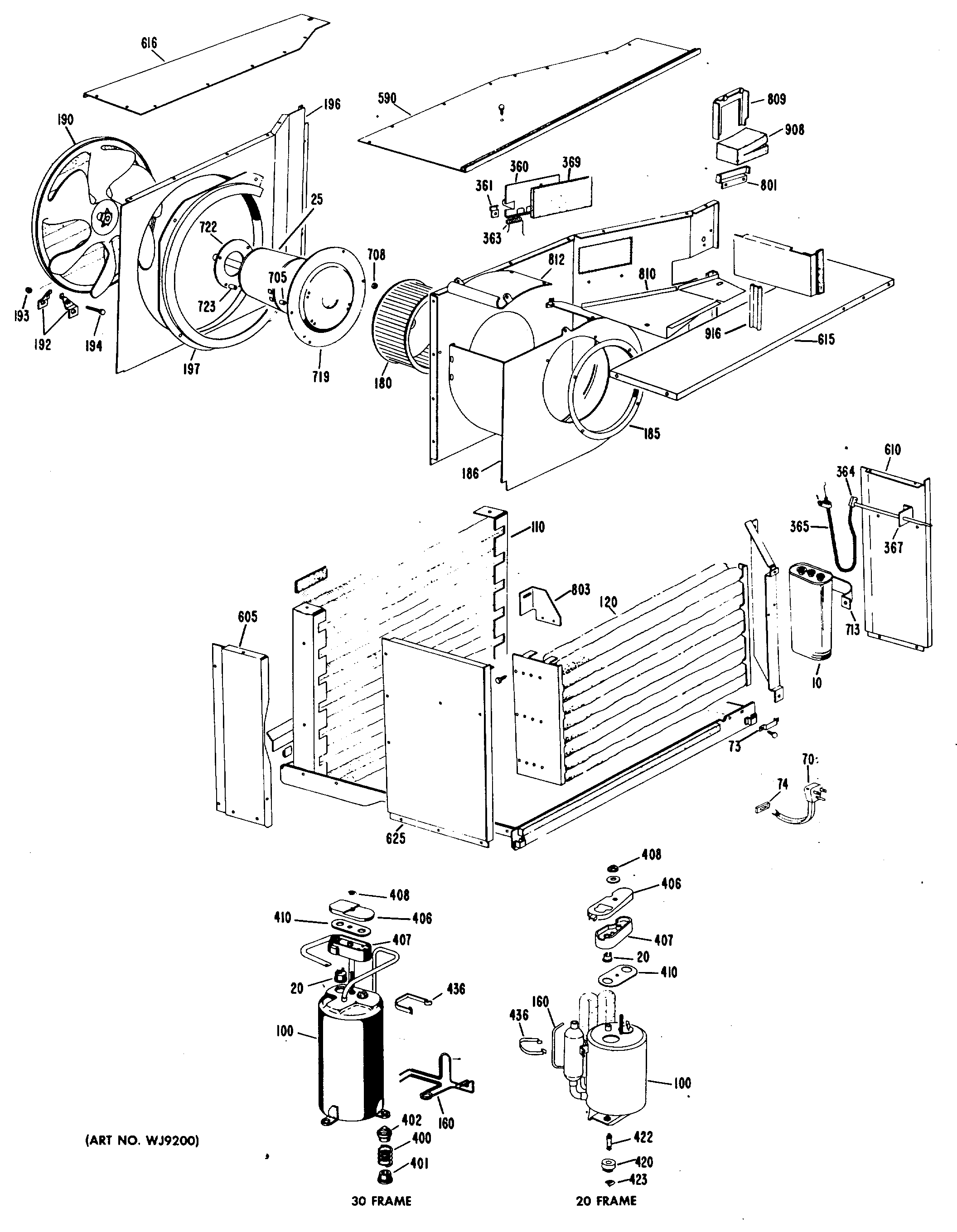

Position	Product
10	CAPACITOR 4/20 370V
20	GEN WJ23X0093
25	GEN WJ94X0513
70	GEN WJ35X0102
73	CLAMP POWER CORD
74	GROMMET CORD POWER
100	COMPRESSOR
110	GEN WJ88X0088
120	GEN WJ87X0197
160	CAPILLARY .042 CUT TO 15
160	CAPILLARY .054 CUT TO 16
160	CAPILLARY .031 CUT TO 25
180	INDOOR BLOWER
186	GEN WJ76X0231
186	GEN WJ76X0242
190	GEN WJ73X0043
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0236
197	BAFFLE
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0096
365	GEN WJ14X0095
400	GEN WJ02X0257
400	GEN WJ02X0259
400	GEN WJ02X0258
401	GEN WJ01X0348
402	GEN WJ01X0347
406	GEN WJ79X0302
407	GEN WJ79X0301
408	GEN WJ01X0292
410	GEN WJ43X0333
436	ACCUMULATOR CLAMP
590	GEN WJ79X0232
610	GEN WJ81X0065
615	GEN WJ79X0348
616	GEN WJ79X0286
625	GEN WJ82X0065
708	GEN WJ01X0445
713	GEN WJ03X0294
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
916	SPACER
