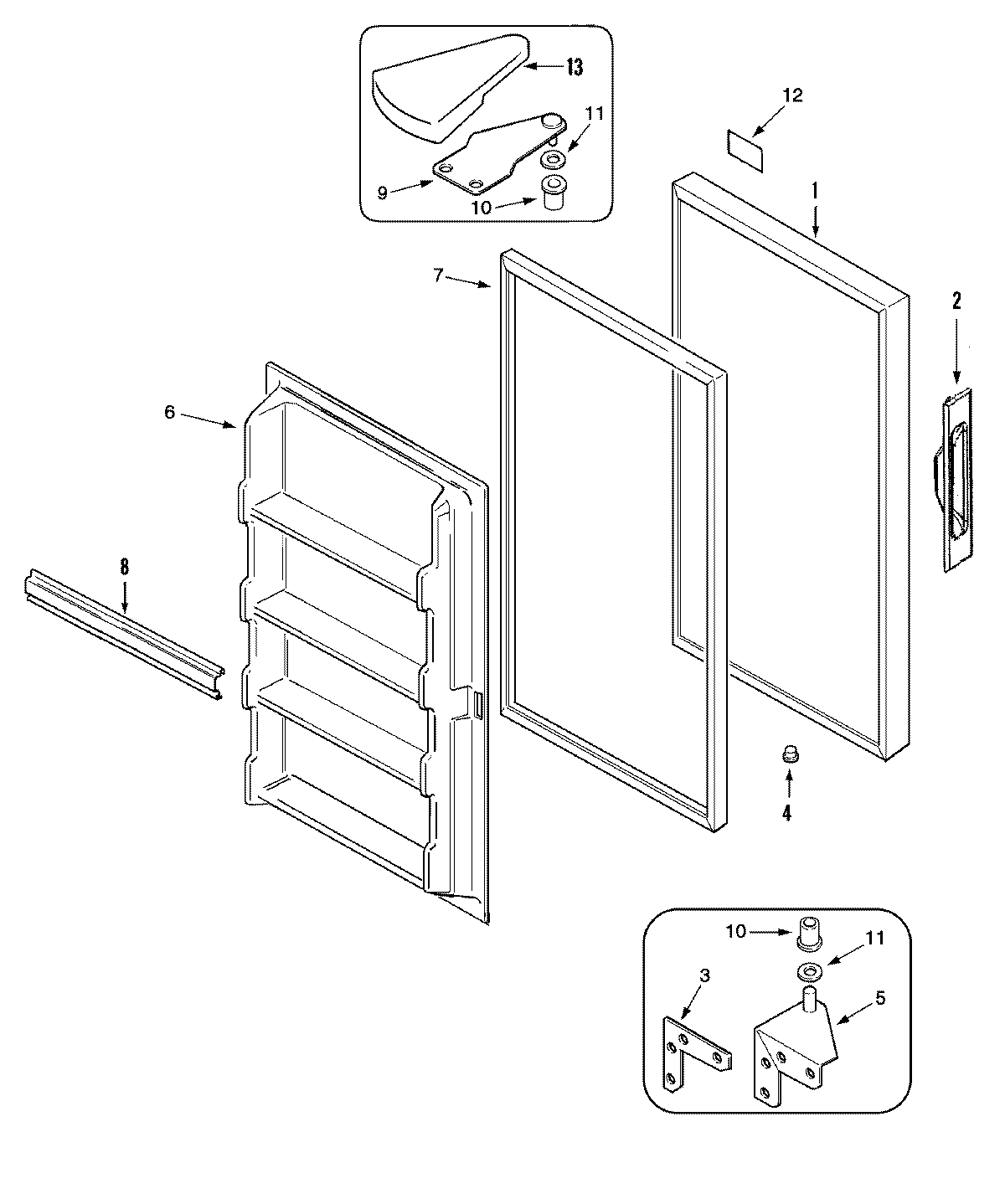

AFU1202BW 01 – DOOR

Written by

AFU1202BW 01 – DOOR

Products

Position	Product
1	MAY 68001540
2	SEE NOTE GROUND WIRE, GREEN
3	MAY Y04529702
4	MAY Y04699801
5	MAY 68001104
6	MAY 68001541
6	MAY 68001124
7	MAY 68001284
8	MAY 68001378
9	MAY 68001126
9	MAY 68001230
9	WP8204624 Whirlpool Bolt
10	MAY 68001465
11	W10851331 Whirlpool Refrigerator Washer
12	MAY R9800603
12	MAY R9800518
13	MAY 68001487
