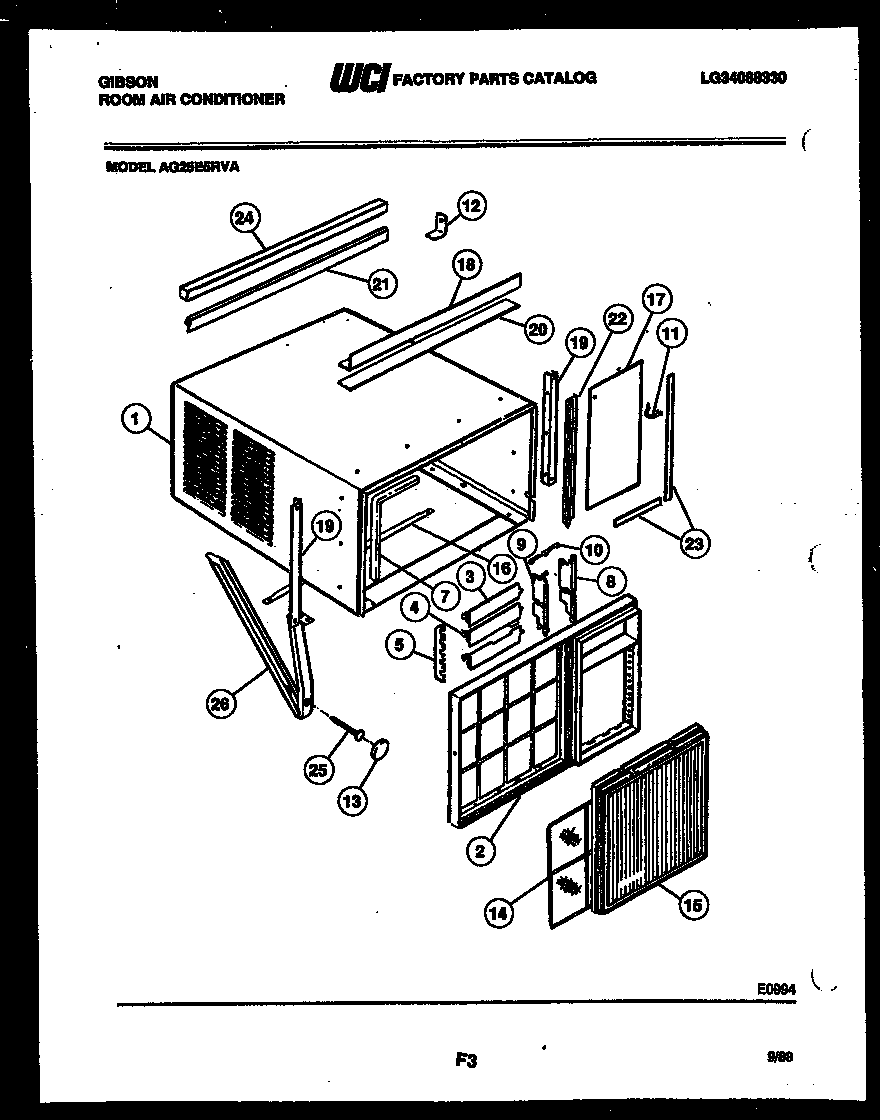

AG25E5RVA 02 – CABINET PARTS

Products

Position	Product
*12554	WCI 3201074
*12554	WCI G100824
1	SHELL-CABINET
1B	WCI G100821
1A	LABEL-NAMEPLATE
2A	SCREW-FRT PNL
2	FRONT PANEL ONLY
3	LOUVER-HORIZONTAL
4	LOUVER-HORIZONTAL DIRECTIONAL
5	LINK-HORIZONTAL LOUVER
6	LOUVER-HORIZONTAL
7	WCI G149188-03
8	LOUVER-VERTICAL
9	LOUVER, VERTICAL DIRECTIONAL
10	LINK, VERTICAL LOUVER
11	WCI G117313
12A	WCI G100773
12	BRACKET-BASE
13	CAP-RUBBER
14	WCI G157868
15	PANEL-INTAKE FRT.
16A	SCREW-MTR DUCT
16	BRACE-CROSS SUPPORT
17A	154419403 Frigidaire Dishwasher Screw
17	WINDOW PANEL
18B	NUT-MOTOR MTG
18A	WCI G519684
18	SUPPORT-TOP
19	SUPPORT-SIDES
19A	SCREW – MOTOR TO DUCT (2)
20	WCI G149187-04
21	WCI G149356-05
22	WCI G149182-05
23	WCI G149187-05
24	WCI G145337-10
25	SCREW-BRACE TO BUILDING
26	WCI G149392-03
