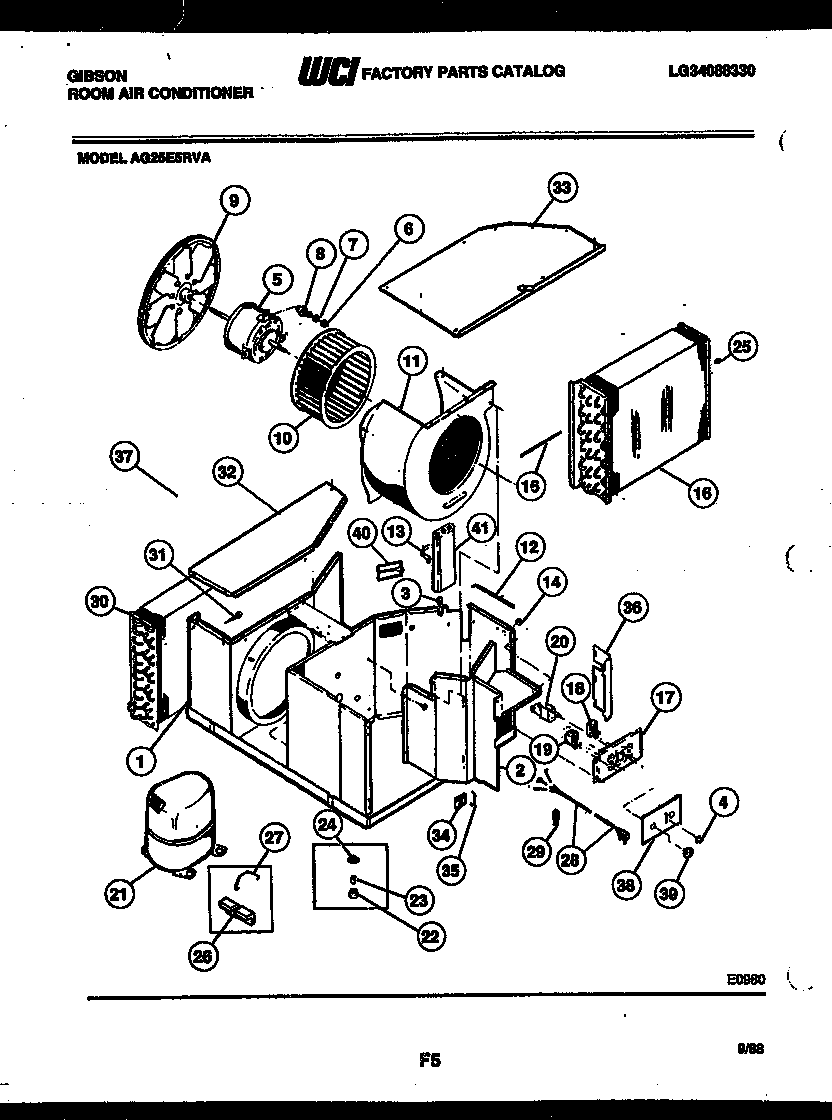

AG25E5RVA 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G523309
2	WCI G523290
3	WCI G139369
4	WCI G511424-01
5	WCI G515030
6	GROMMET-RUBBER
7	SLEEVE-MOTOR MOUNTING
7A	WCI G517918
8	WCI G517928
9	WCI G503202
10	WCI G149714-01
11	WCI G142129
12	WCI G149351
13A	SCREW-STRAP
13	STRAP-CAPACITOR
14	BUSHING, SNAP
15	WCI G523098
16	WCI G144044-28
17	WCI G523294
18	SWITCH-ROTARY (NON-ILLUSTRATED)
19	THERMOSTAT-TEMP.
20A	SCREW-CNTL (6)
20	WCI G506420
21	WCI G521871-01
22	GROMMET-COMPRESSOR
23	SLEEVE-COMPRESSOR
24	NUT-COMPR (3)
26	WCI G520909
27	GASKET – COVER SEAL
28	WCI G506345-65
29	CLAMP – SERVICE CORD
29A	SCREW-CLAMP
30	WCI G523239
30A	WCI G26001
31	STRAINER-FILTER
32	WCI G516967
33A	WCI G516352
33B	154419403 Frigidaire Dishwasher Screw
33	WCI G523296
34	WCI G519968
35	RETAINER
36	BAFFLE, WATER
37	WCI G157339
38	WCI 3201091
39	WCI G110826
40	WCI G501587
41	WCI G513068-04
42	WCI G516950
