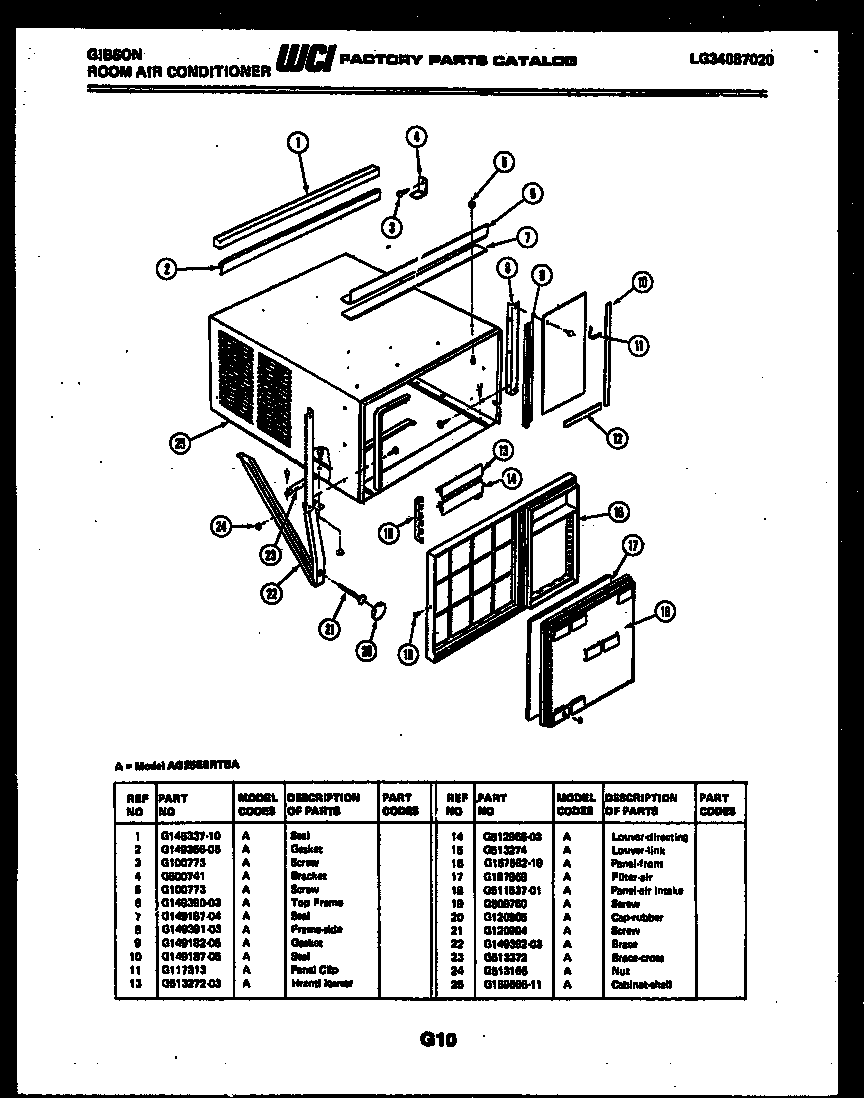

AG25E6RTBA 02 – CABINET PARTS

AG25E6RTBA 02 – CABINET PARTS

Written by

in

AG25E6RTBA 02 – CABINET PARTS

Products

PositionProduct
1WCI G145337-10
2WCI G149356-05
4BRACKET-BASE
5WCI G100773
6SUPPORT-TOP
7WCI G149187-04
8SUPPORT-SIDES
9WCI G149182-05
10WCI G149187-05
11WCI G117313
13HRZNTL LUVR (10)
14DIRECTING LUVR (2)
15LINK-HORIZONTAL LOUVER
16WCI G157582-19
17WCI G157868
18PNL-AIR INTAKE
19SCREW-FRT PNL
20CAP-RUBBER
21SCREW-BRACE TO BUILDING
22WCI G149392-03
23BRACE-CROSS SUPPORT
24NUT-MOTOR MTG
25SHELL-CABINET
