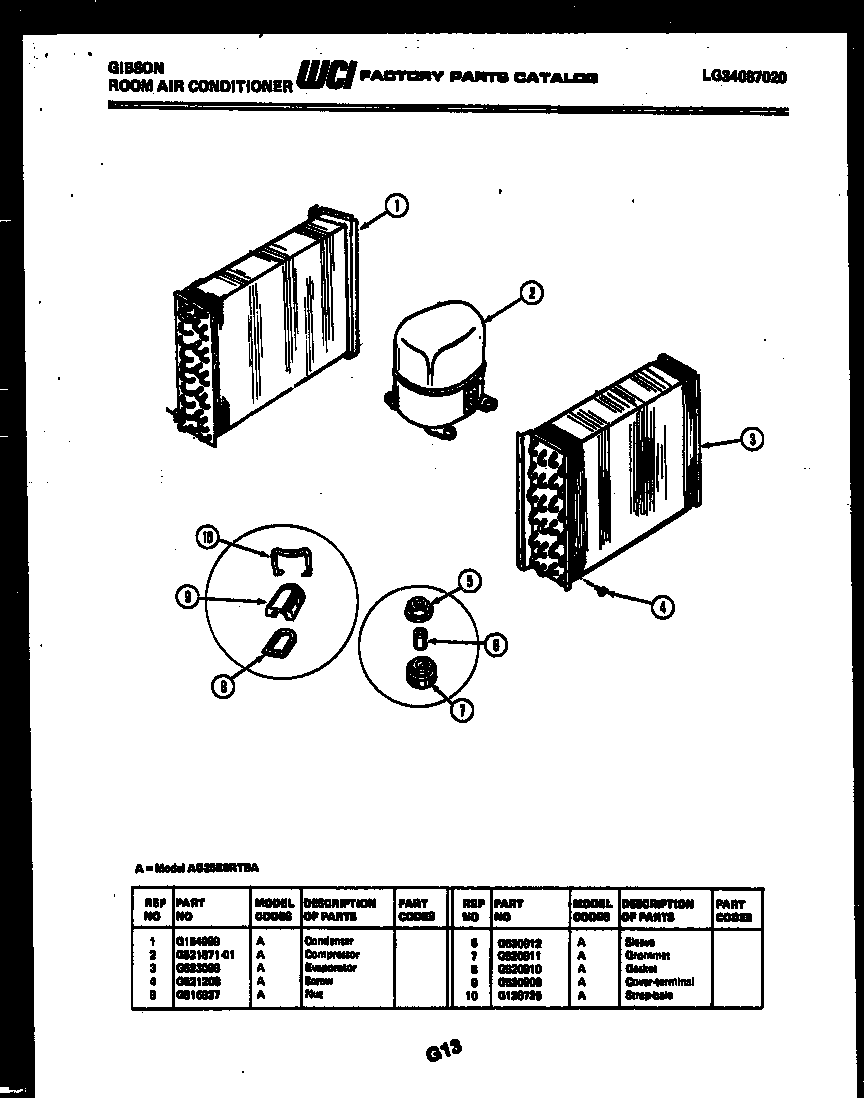

AG25E6RTBA 05 – UNIT PARTS
Products
| Position | Product |
|---|---|
| 1 | CONDENSER |
| 2 | WCI G521871-01 |
| 3 | WCI G523098 |
| 4 | WCI G521208 |
| 5 | WCI G516927 |
| 6 | SLEEVE-COMPRESSOR |
| 7 | GROMMET-COMPRESSOR |
| 8 | GASKET - COVER SEAL |
| 9 | WCI G520909 |
| 10 | WCI G128725 |
AG25E6RTBA 05 – UNIT PARTS
| Position | Product |
|---|---|
| 1 | CONDENSER |
| 2 | WCI G521871-01 |
| 3 | WCI G523098 |
| 4 | WCI G521208 |
| 5 | WCI G516927 |
| 6 | SLEEVE-COMPRESSOR |
| 7 | GROMMET-COMPRESSOR |
| 8 | GASKET - COVER SEAL |
| 9 | WCI G520909 |
| 10 | WCI G128725 |
