AG3419 Gas Valve and Igniter

AG3419 Gas Valve and Igniter

Written by

in

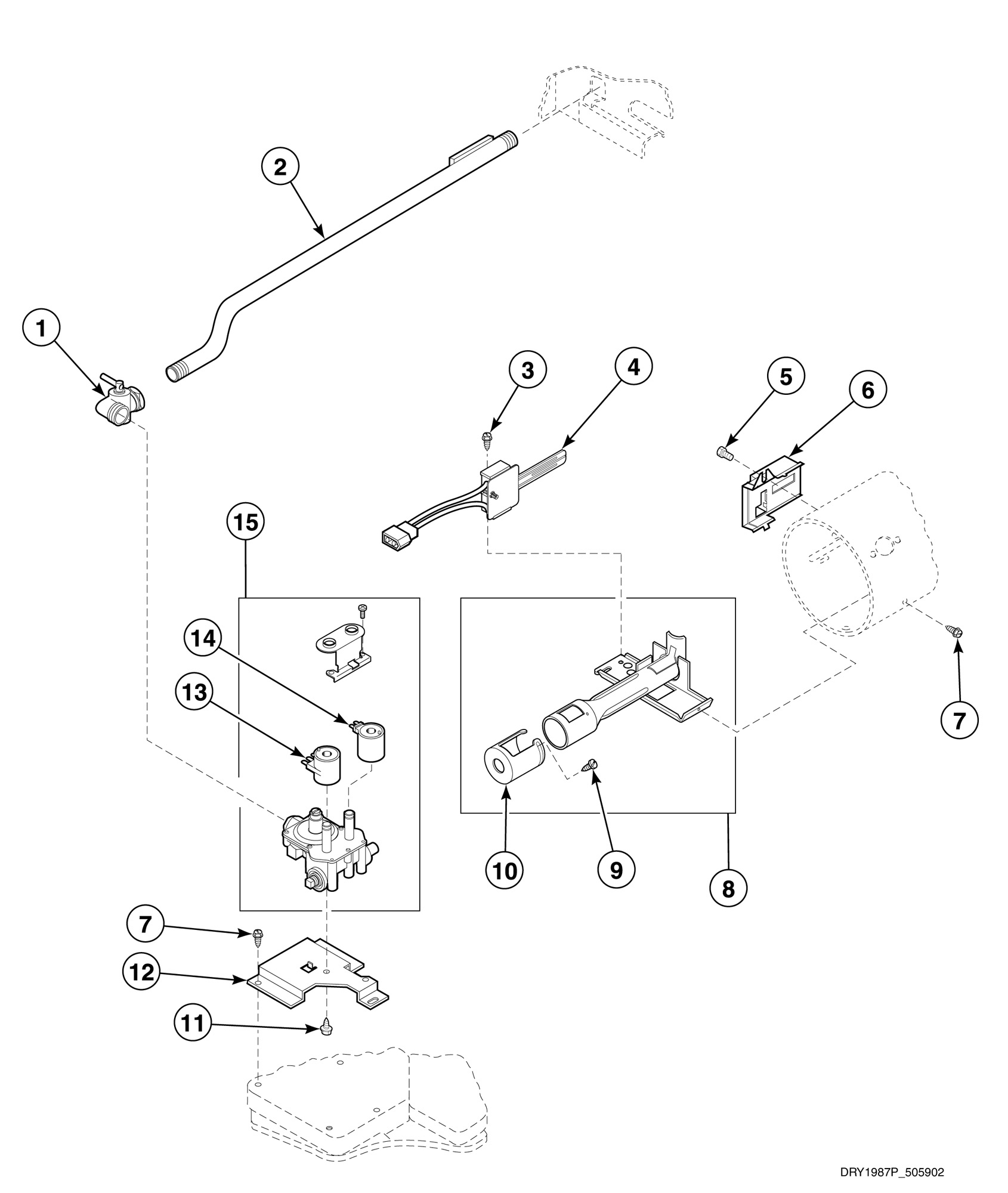

AG3419 Gas Valve and Igniter

Products

PositionProduct
1Elbow Shut-Off Valve
3Screw
4Igniter and Bracket Assembly
5Screw
6Sensor
7Screw
8Burner Assembly
10Wire Harness Assembly
11Screw
12Gas Valve Mounting Bracket
13Booster and Holding Coil
14Secondary Coil
15Gas Valve Assembly (Comment: N.G. or Mixed Gas, 120 Volt/60 Hertz)
