AG3419 Loading Door, Front Panel and Seals

AG3419 Loading Door, Front Panel and Seals

Written by

in

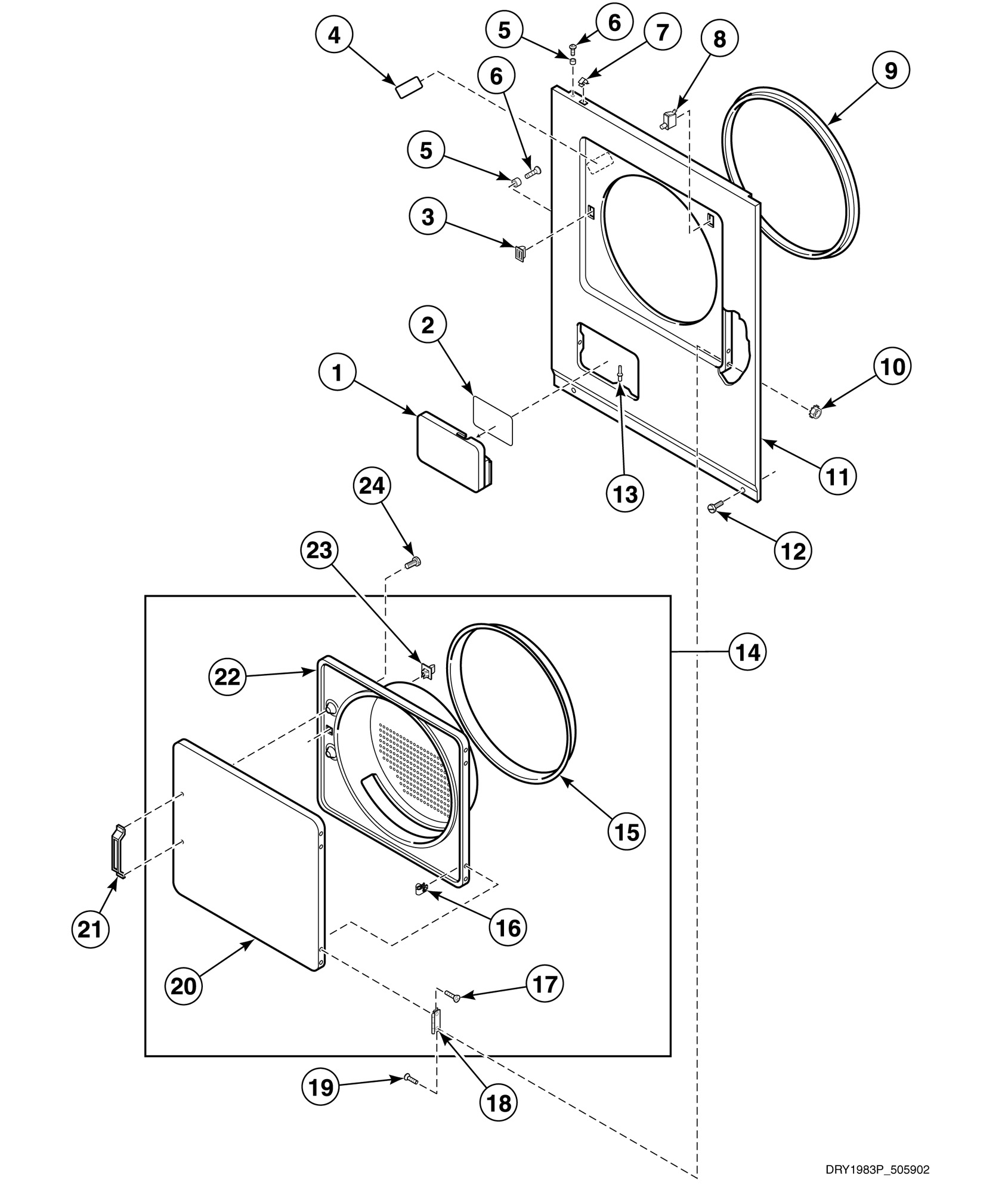

AG3419 Loading Door, Front Panel and Seals

Products

Position	Product
1	Access Door (Comment: White)
2	Gas Clearance Label
3	Door Catch Assembly
4	Warning/Caution Label
5	Panel Locator
6	Screw
7	Speed Clip
8	Switch
9	Front Panel Seal
10	Nut
12	Screw
13	Support Barrel
15	Door Seal
16	Nut
17	Screw
18	Hinge
19	Screw
21	Door Pull
22	Wire Harness Assembly
23	Door Strike
24	Screw
