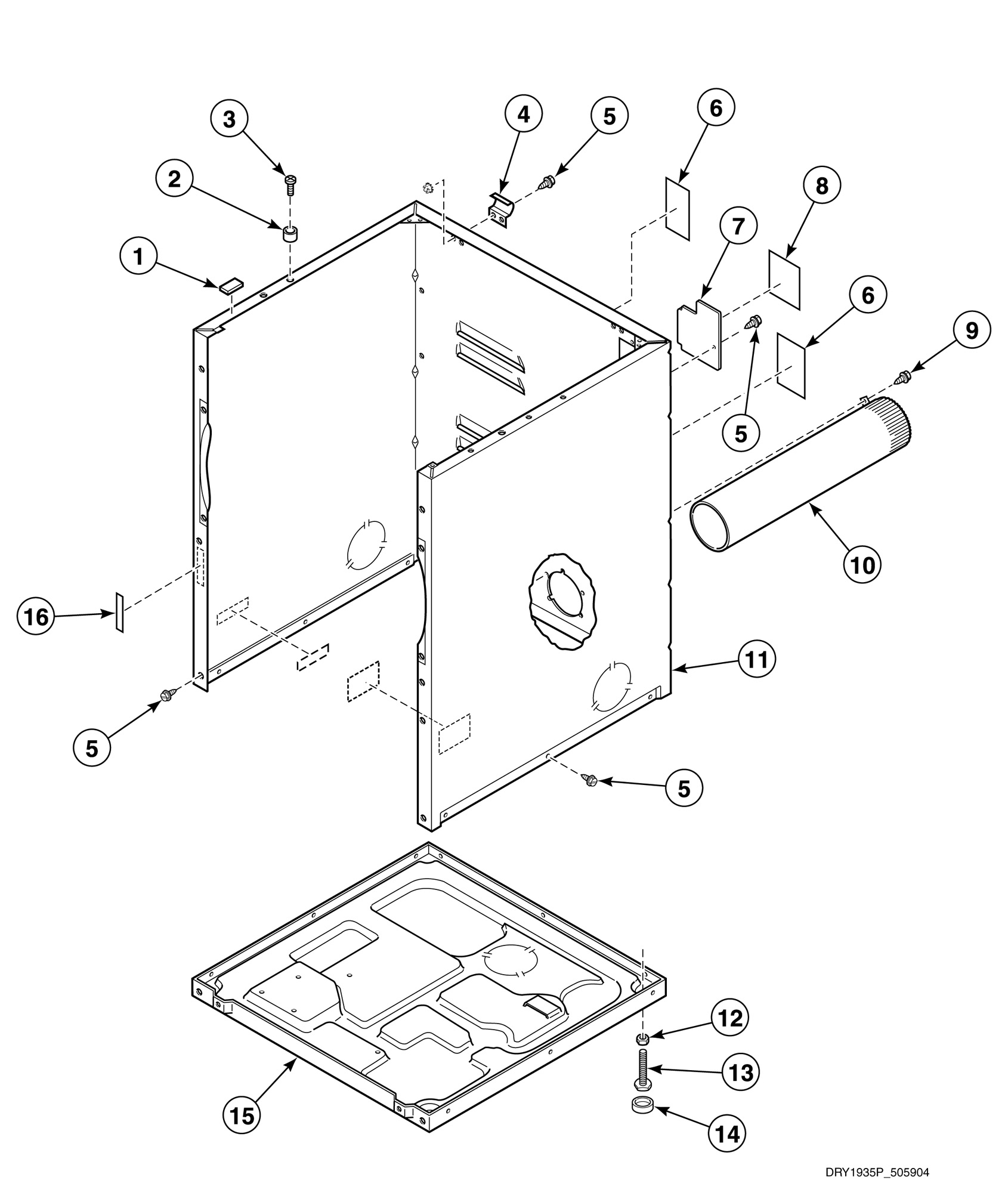

AG9239 Cabinet, Exhaust Duct and Base

Written by

Products

Position	Product
1	Bumper Pad
2	Panel Locator
3	Screw
5	Screw
6	Gas Clearance Label
7	Access Cover Plate
8	NOT ON YOUR MODEL
9	Screw
12	Nut
13	Screw
14	Rubber Foot
15	Wire Harness Assembly
16	Disconnect Power Warning Label
