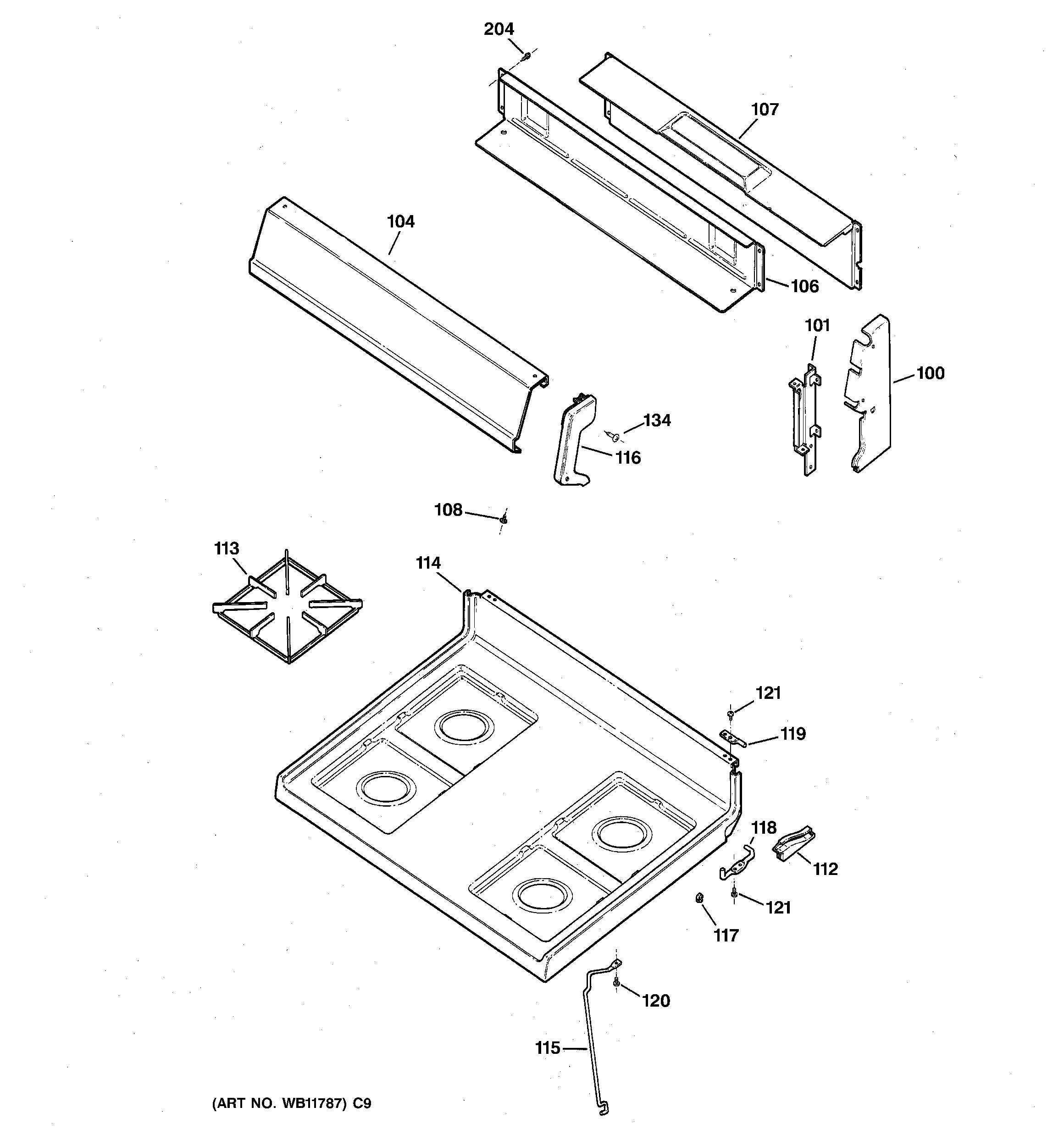

AGBS300EP2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10002
100GEN WB07K10001
100GEN WB07K10023
100GEN WB07K10022
101GEN WB37K0014
101GEN WB37K0015
104GEN WB36K10581
104GEN WB36K10465
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
112GEN WB14K0001
112WB14K2 GE Oven Left Handle
113WB31K10012 GE Oven 8-Finger Burner Grate
114WB62K10109 GE Range Top Standard
114WB62K10003 GE Oven Cooktop Assembly (White)
115GEN WB06K0008
116WB07K10007 GE Oven Endcap Left
116WB07K10005 GE Oven Right Endcap
116GEN WB07K10004
116WB07K10003 GE Oven Right Black Endcap
117GEN WB02K0017
117WB14K10004 GE Oven Pin Locator
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
134GEN WB01K10003
134GEN WB01K10004
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
