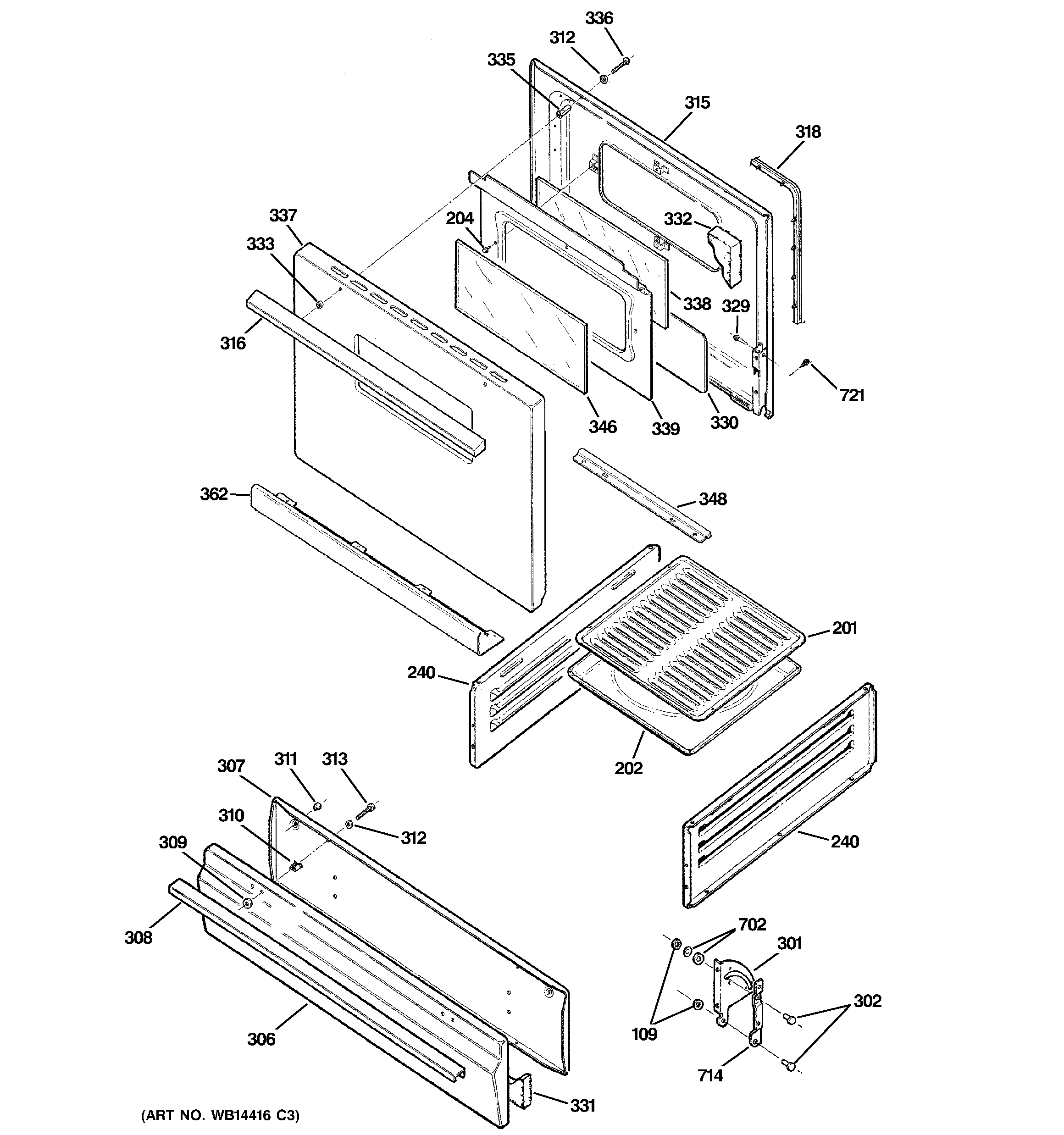

AGBS300EP2BB DOOR & DRAWER PARTS

AGBS300EP2BB DOOR & DRAWER PARTS

Written by

in

AGBS300EP2BB DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
201WB48X10056 GE Broil Pan Set, Large Porcelain
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
240WB63X26890 GE Oven Broiler Panel
301GEN WB10K0010
301GEN WB10K0011
302WB01K10035 GE Oven Broiler Pin
302WB1K7 GE Oven Broiler Pin
302WB01K10036 GE Washer Spring Washer
306WB39K10 GE Oven Drawer Panel Black
306WB56X21199 GE Oven Drawer Panel
307WB39K10042 GE Oven Drawer Liner
308WB15K10008 GE Oven Broil Handle
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
315GEN WB55K10050
316WB15K1 GE Oven Broil Handle
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
331GEN WB35K0003
332WB35K10151 GE Oven Insulation Door
333WB01K10020 GE Oven Handle Spacer
335WB02K10156 GE Oven Spacer
336SCR 10-16 X 2 3/4
337GEN WB56K10044
337GEN WB56K10043
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
346WB56K25 GE Oven Wind Crystal
346WB57K18 GE Oven Crystal Wind
346GEN WB01K0038
348GEN WB02K0050
362GEN WB07K10342
702WB1K45 GE Oven Screw and Washer Assembly
714WB39K35 GE Oven Left Hand Broil Support
714WB39K34 GE Oven Broil Support Right
721WB1X536 GE Oven Screw
