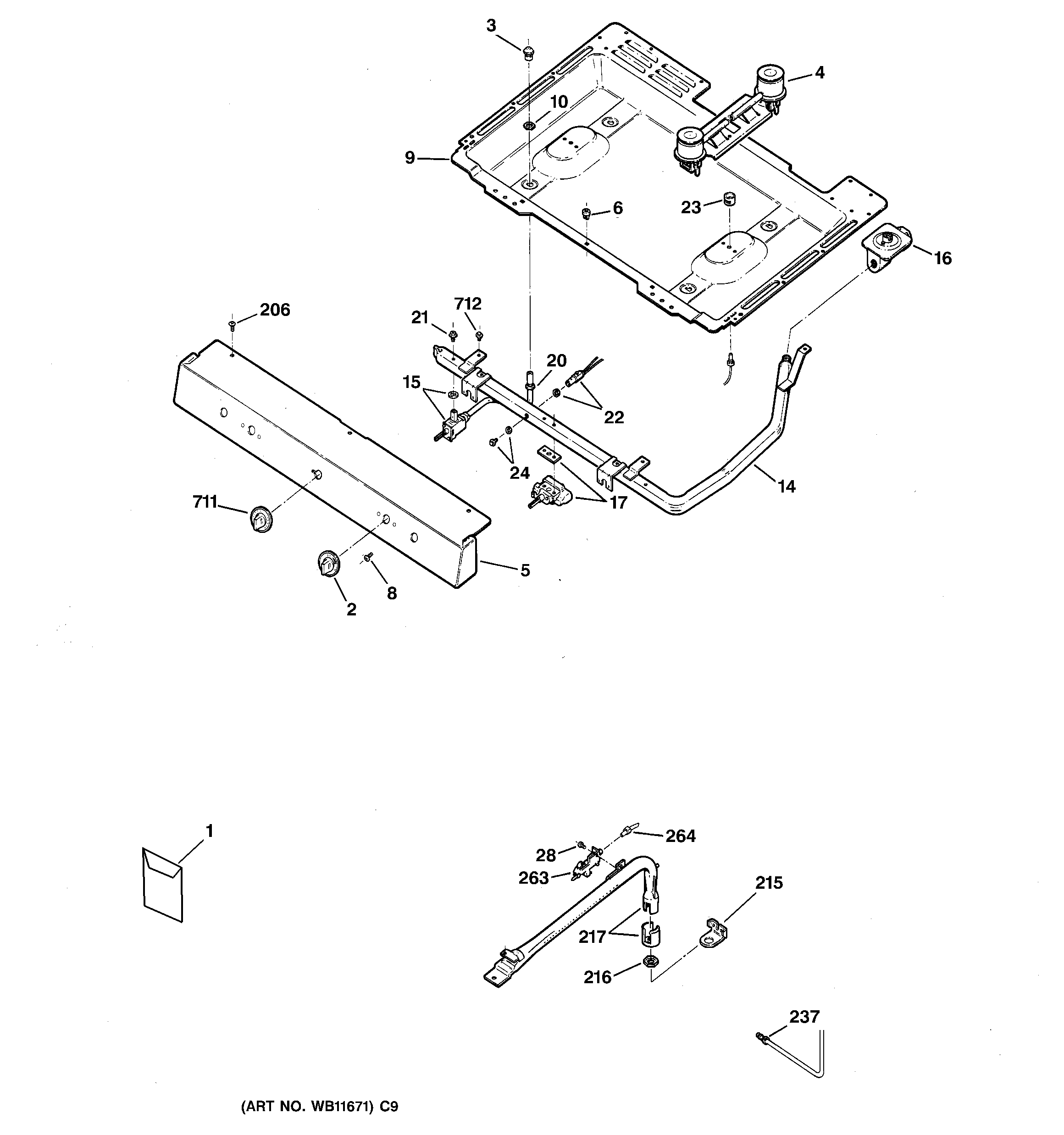

AGBS300PJ1WW GAS & BURNER PARTS

Products

Position	Product
1	GEN 49-85076
1	WB28K10593 GE Oven Conversion Kit Assembly
1	GEN 31-21125
2	WB03K10034 GE Oven Burner Knob
3	WB28K10033 GE Oven Orifice Spud
3	WB28K10376 GE Oven Orifice
4	WB16K10026 GE Oven Range Cooktop Double Burner
5	GEN WB36K10464
6	GEN WB02K0009
8	WB01K10002 GE Oven Screw 8-32
9	WB64K10001 GE Oven Burner Box
10	GEN WB01K0004
14	GEN WB28K10170
15	140 BURNER VALVE
16	GEN WB19K0026
17	WB20K10013 GE Oven Thermostat
20	WB28K10009 GE Oven Burner Tube
20	WB28K10010 GE Oven Front Tube Assembly
20	WB28K10011 GE Oven Rear Burner Tube
20	WB28K10012 GE Oven Rear Burner Tube
21	WB1K83 GE Oven Screw
21	GEN WB01K10031
22	GEN WB19K0005
23	GEN WB02K0021
24	GEN WB01K0011
28	WB1X1293 GE Oven Screw
206	WR01X10065 GE Screw
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10061 GE Oven Burner and Pilot Assembly
237	WB28K10171 GE Oven Supply Tube Valve
264	GEN WB28K10172
711	WB03K10244 GE Oven Thermostat Knob Assembly
712	WB1K37 GE Oven Screw
