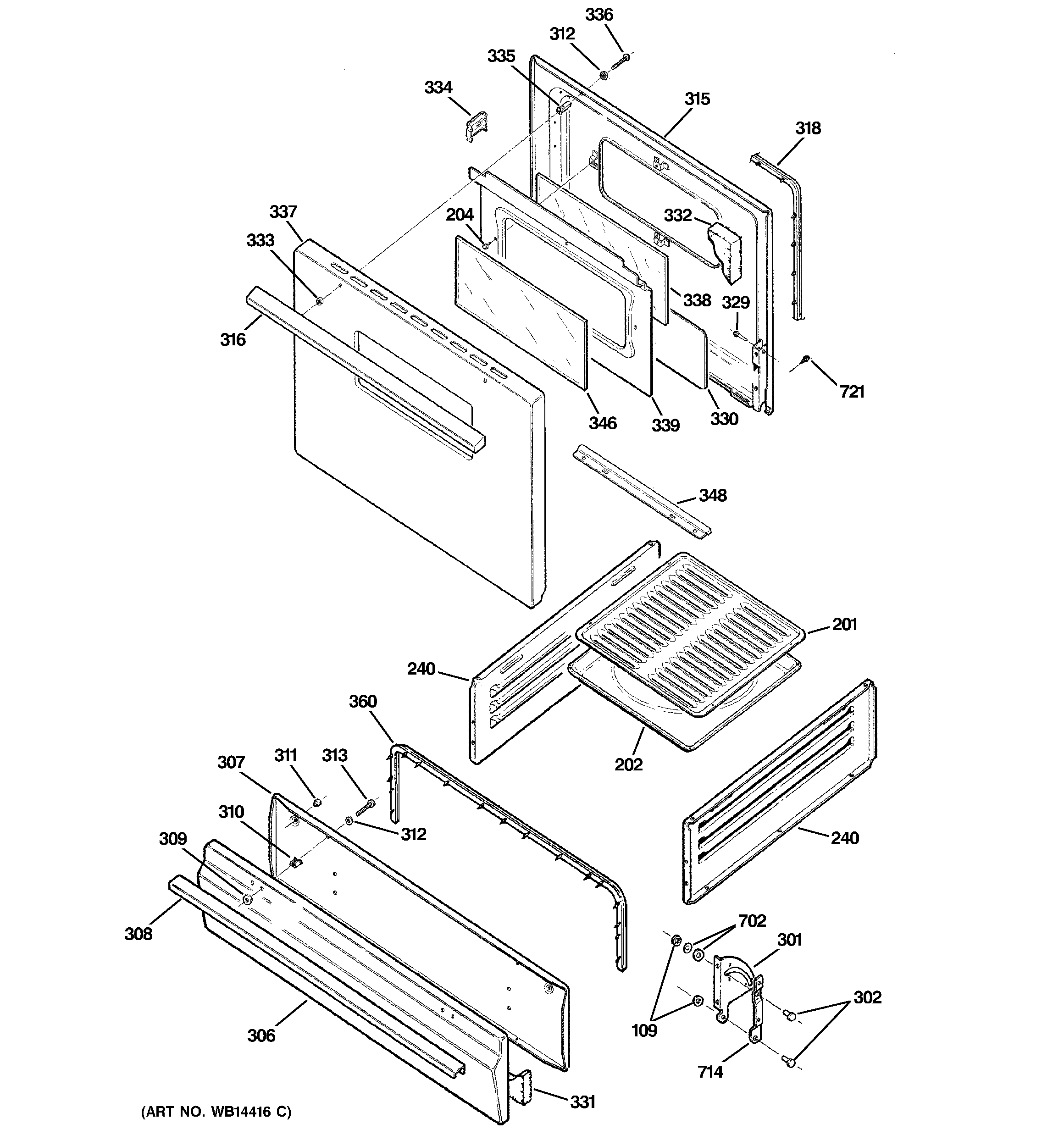

AGBS300PJ2WW DOOR & DRAWER PARTS

AGBS300PJ2WW DOOR & DRAWER PARTS

Written by

in

AGBS300PJ2WW DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
201WB48X10056 GE Broil Pan Set, Large Porcelain
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
240GEN WB63K0029
301GEN WB10K0011
301GEN WB10K0010
302WB01K10036 GE Washer Spring Washer
302WB01K10035 GE Oven Broiler Pin
302WB1K7 GE Oven Broiler Pin
306GEN WB39K10015
307GEN WB39K10035
308GEN WB15K10031
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
315GEN WB55K10049
316WB15K1 GE Oven Broil Handle
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
331GEN WB35K0003
332GEN WB35K0005
333WB01K10020 GE Oven Handle Spacer
334GEN WB02K10160
335WB02K10156 GE Oven Spacer
336SCR 10-16 X 2 3/4
337GEN WB56K10044
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
346GEN WB01K0038
346WB57K18 GE Oven Crystal Wind
348GEN WB02K0050
360GEN WB04K10023
702WB1K45 GE Oven Screw and Washer Assembly
714WB39K35 GE Oven Left Hand Broil Support
714WB39K34 GE Oven Broil Support Right
721WB1X536 GE Oven Screw
