AGBS300PJ4WW GAS & BURNER PARTS

AGBS300PJ4WW GAS & BURNER PARTS

Written by

in

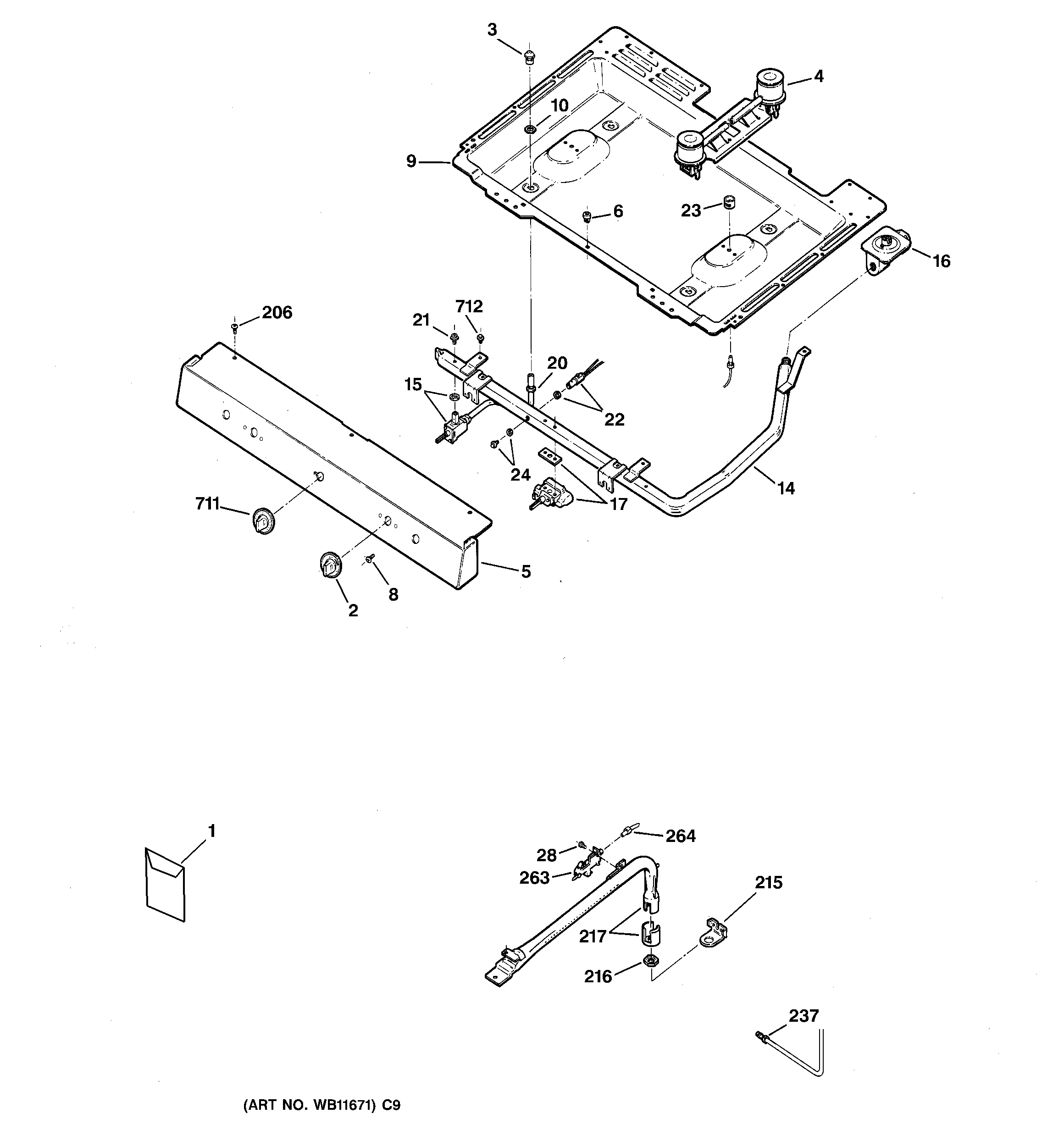

AGBS300PJ4WW GAS & BURNER PARTS

Products

PositionProduct
1WB28K10593 GE Oven Conversion Kit Assembly
1GEN 31-21237
1GEN 31-21402
1GEN 49-85096
2WB03K10034 GE Oven Burner Knob
2WB03K10035 GE Oven Top Burner Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10757
5GEN WB36K10756
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
14GEN WB28K10250
15WB21K38 GE Oven Burner Valve
16GEN WB19K0026
17WB20K10013 GE Oven Thermostat
17WB19K10025 GE Oven Thermocouple
20WB28K10009 GE Oven Burner Tube
20WB28K10010 GE Oven Front Tube Assembly
20WB28K10012 GE Oven Rear Burner Tube
20WB28K10011 GE Oven Rear Burner Tube
21WB01K10067 GE Oven Screw 1/4" HD 20
21WB01K10066 GE Oven Screw 8 HD 10-32
22GEN WB19K0005
23GEN WB02K0021
24GEN WB01K10068
28WB1X1293 GE Oven Screw
206WB01K10091 GE Oven Screw
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10066
237WB28K10171 GE Oven Supply Tube Valve
263WB16K10061 GE Oven Burner and Pilot Assembly
263WB19K10028 GE Oven Pilot
264GEN WB28K10172
711WB03K10206 GE Oven Knob Assembly Thermostat
711WB03K10244 GE Oven Thermostat Knob Assembly
712WB1K37 GE Oven Screw
