AGBS300PJ5WW BODY PARTS

AGBS300PJ5WW BODY PARTS

Written by

in

AGBS300PJ5WW BODY PARTS

Products

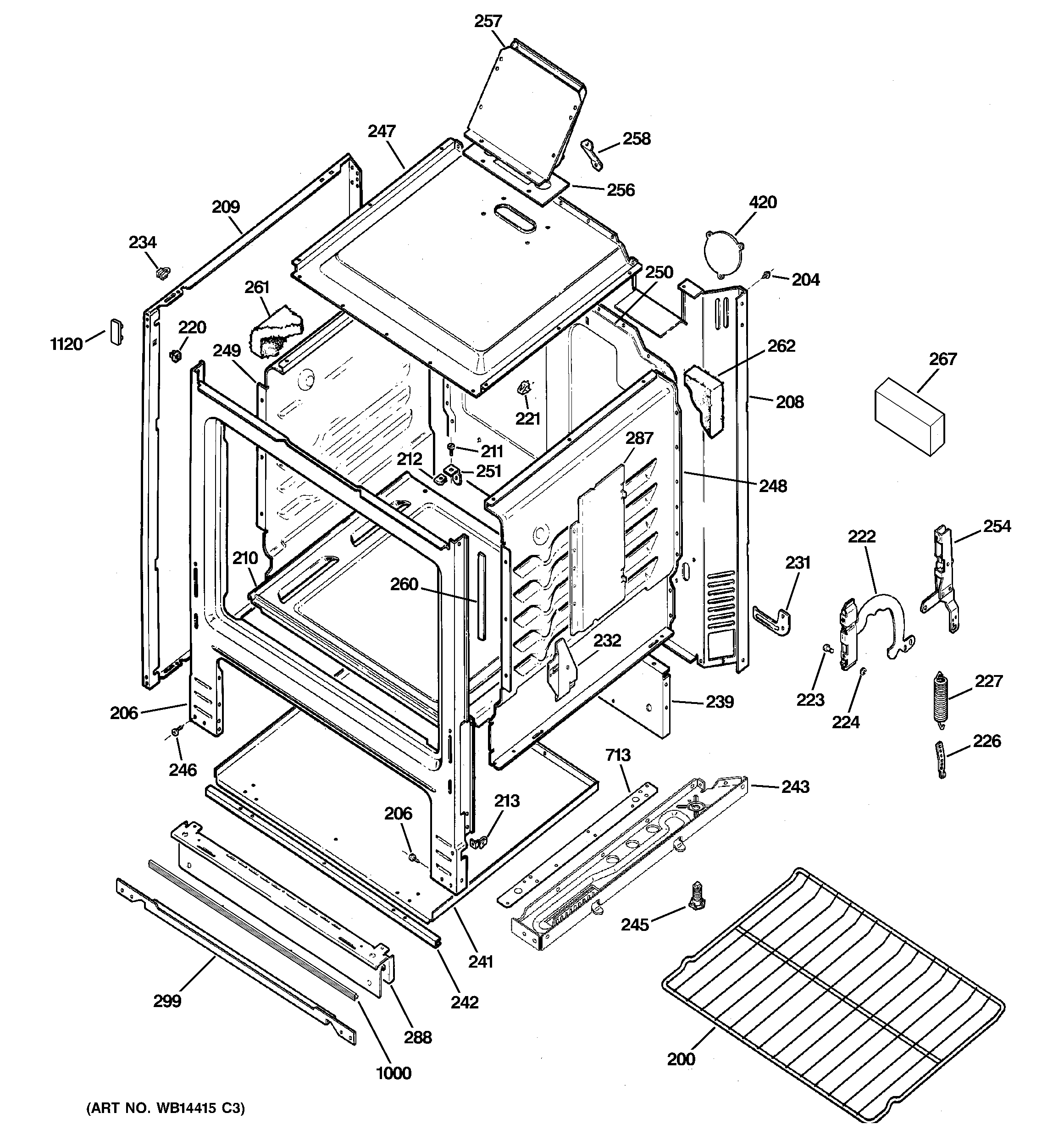

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
208WB63K20 GE Ran Back
209WB63K10122 GE Oven Side Panel
209WB63K10119 GE Oven Side Panel, Black
210GEN WB35K10042
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0001
231WB2K20 GE Oven Bracket Assembly
231GEN WB02K0012
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
239GEN WB63K0001
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10176
247GEN WB53K0001
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250WB53K10016 GE Oven Back
251WB2K3 GE Angle Support
254GEN WB01K0053
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
260GASKET OVEN SEAL
261WB35K10155 GE Oven Insulation Wrap
262WB35K10162 GE Oven Back Insulation
267GEN WB06K10002
287WB34K30 GE Radiation Guard
287GEN WB34K0031
288BRACE
299WB1K43 GE Oven Support Bracket
420GEN WB34K0016
713WB39K33 GE Support
1000WB04K10021 GE Oven Front Frame Gasket
1120WB02K10179 GE Range Bumper
1120WB02K10178 GE Oven Bumper
