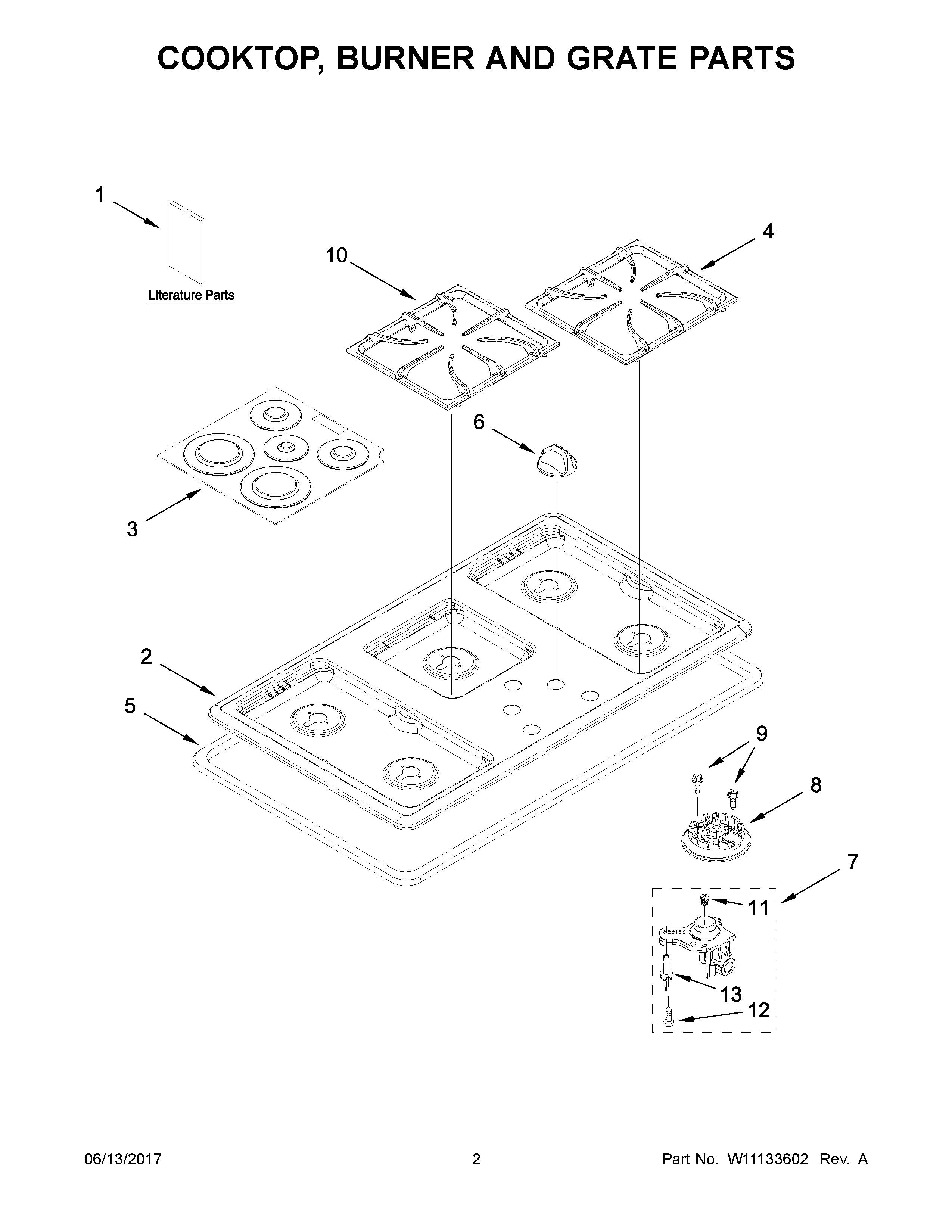

AGC6356KFB02 02 – COOKTOP, BURNER AND GRATE PARTS

AGC6356KFB02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

AGC6356KFB02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWIRE, GROUND JUMPER
NILINER (NOT A SERVICEABLE PART)
NIMAY W11106597
NIHarness, Cooktop
NIMAY 3801F935-51
NIMAY 7402P087-60
1AMAY W11100531
1MAY W11100536
1DTIPS, SAFE COOKING (ENGLISH)
1BWiring Diagram (English)
1ETIPS, SAFE COOKING (FRENCH)
1CMAY W10205174
2ACOOKTOP (WHITE)
2COOKTOP (BLACK)
3AKIT, BURNER CAP (GRAY)
3KIT, BURNER CAP (BLACK)
4AGrate, Burner (Grey)
4MAY 7518P464-60
5MAY 8270P107-60
6KNOB, CONTROL (BLACK)
6AKNOB, CONTROL (WHITE)
7DMAY W10779146
7CMAY W10779147
7BMAY W10779148
7AMAY W10779145
7MAY W10779144
8HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
9WP3368921 Whirlpool Screw
10MAY 7518P467-60
10AGrate, Center (Grey)
11BORIFICE (RIGHT FRONT)
11AMAY W10639156
11MAY W10639155
12MAY 8273062
13MAY W10779128
13AMAY W10779130
13BMAY W10779129
