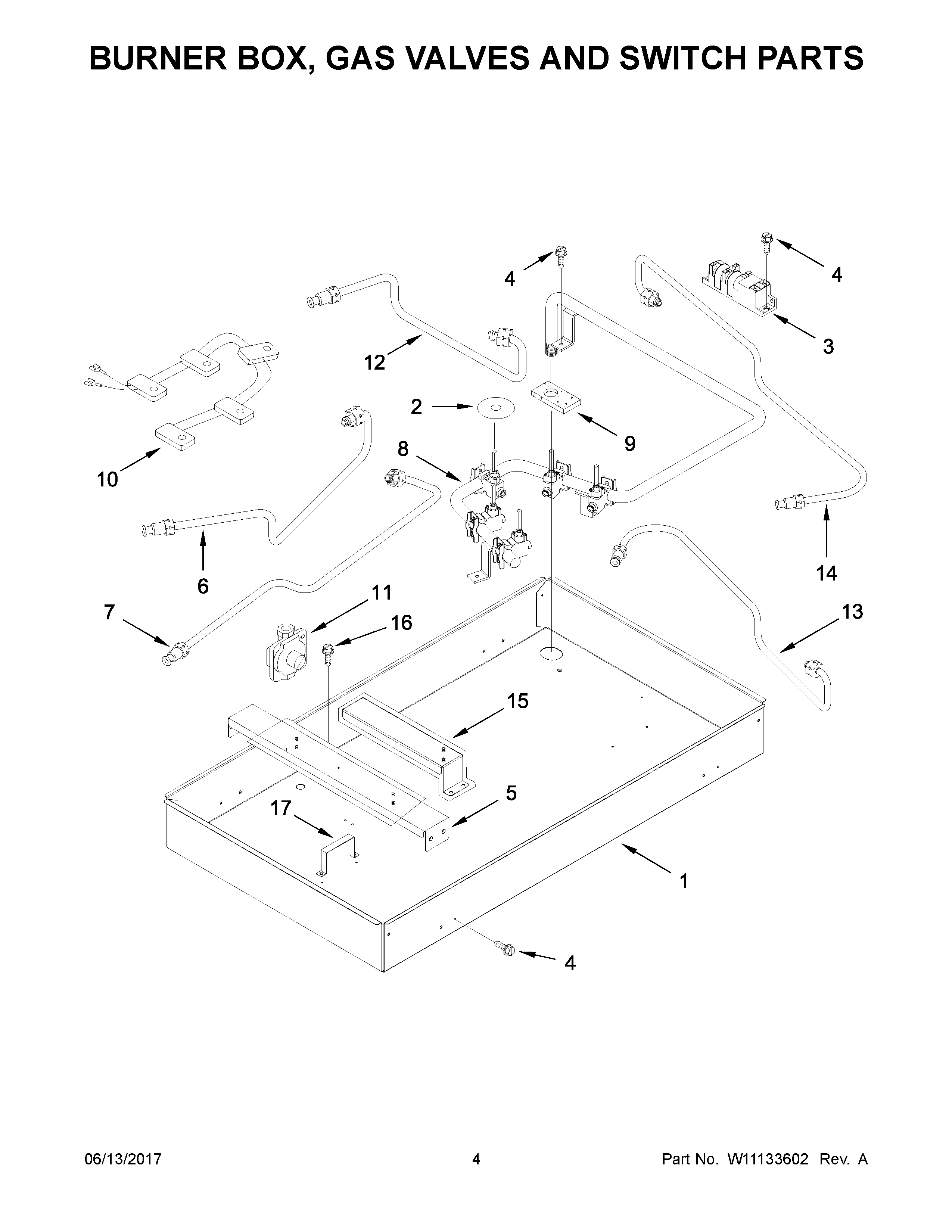

AGC6356KFB02 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

Products

Position	Product
1	Burner Box
2	Seal, Valve Shaft
3	SPARK MODULE
4	MAY 7101P426- 60
5	BRACKET, ORIFICE HOLDER (2)
6	MAY 7506P362-60
7	MAY 7506P363-60
8	Pipe, Manifold (Includes Valves)
9	MAY 7208P024-60
10	MAY W10184468
11	REGULATOR, PRESSURE
12	TUBING, CENTER
13	TUBING, RF
14	TUBING, RR
15	BRACKET, CTR HLDR
16	Screw, Ground
17	MAY 3801F933-51
