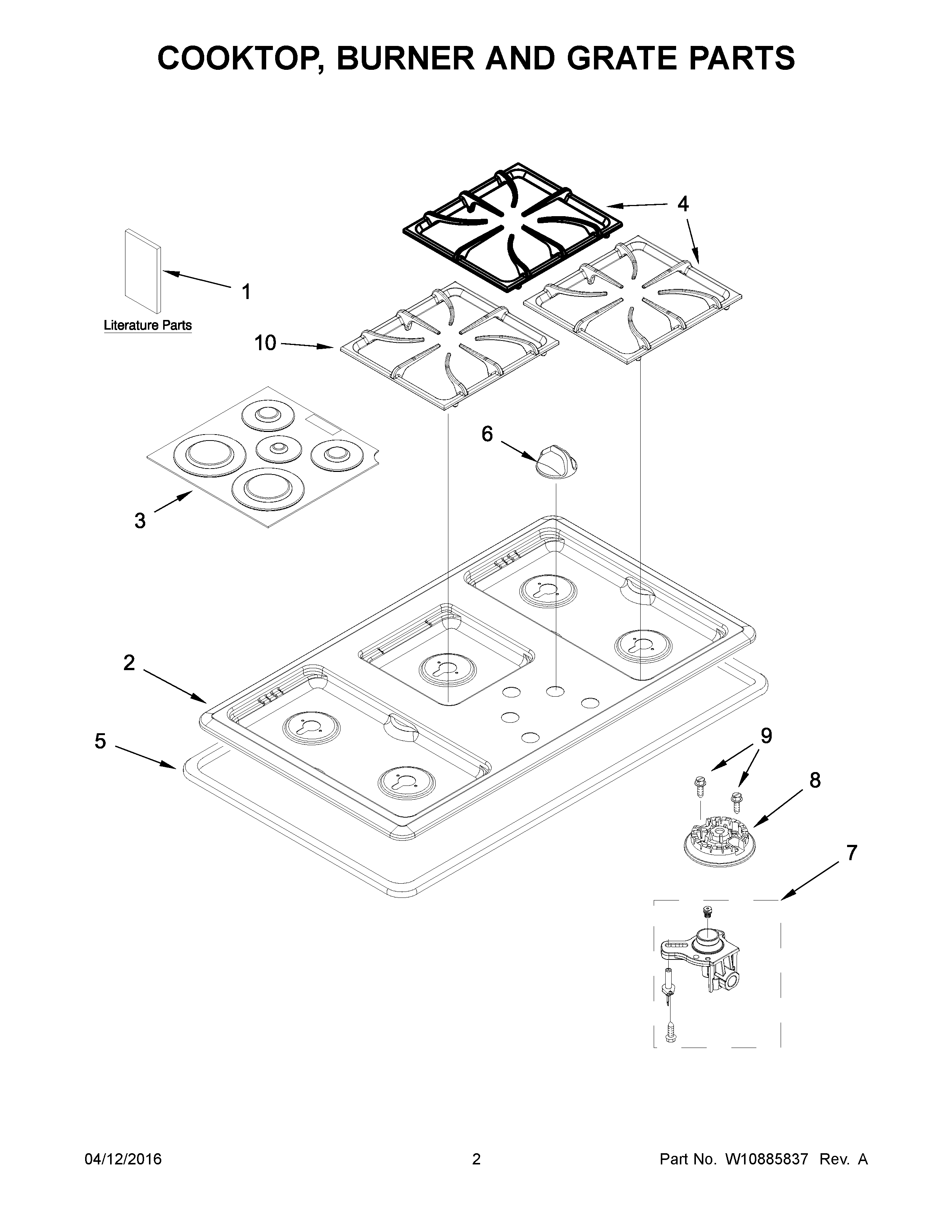

AGC6356KFW00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Harness, Cooktop
NI	MISCELLANEOUS (SPUD KIT)
NI	MAY 7402P087-60
1C	TIPS, SAFE COOKING (ENGLISH)
1A	Installation Instructions
1	USE AND CARE GUIDE
1B	Wiring Diagram (English)
1D	TIPS, SAFE COOKING (FRENCH)
2A	COOKTOP (WHITE)
2	COOKTOP (BLACK)
3A	KIT, BURNER CAP (GRAY)
3	KIT, BURNER CAP (BLACK)
4	MAY 7518P464-60
4A	Grate, Burner (Grey)
5	MAY 8270P107-60
6	KNOB, CONTROL (BLACK)
6A	KNOB, CONTROL (WHITE)
7A	Holder, Orifice (LF, LR & RR)
7	ORIFICE HOLDER (9.5K) (RIGHT REAR)
7B	ORIFICE HOLDER (12K) (LEFT FRONT)
8	HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
9	WP3368921 Whirlpool Screw
10A	Grate, Center (Grey)
10	MAY 7518P467-60
