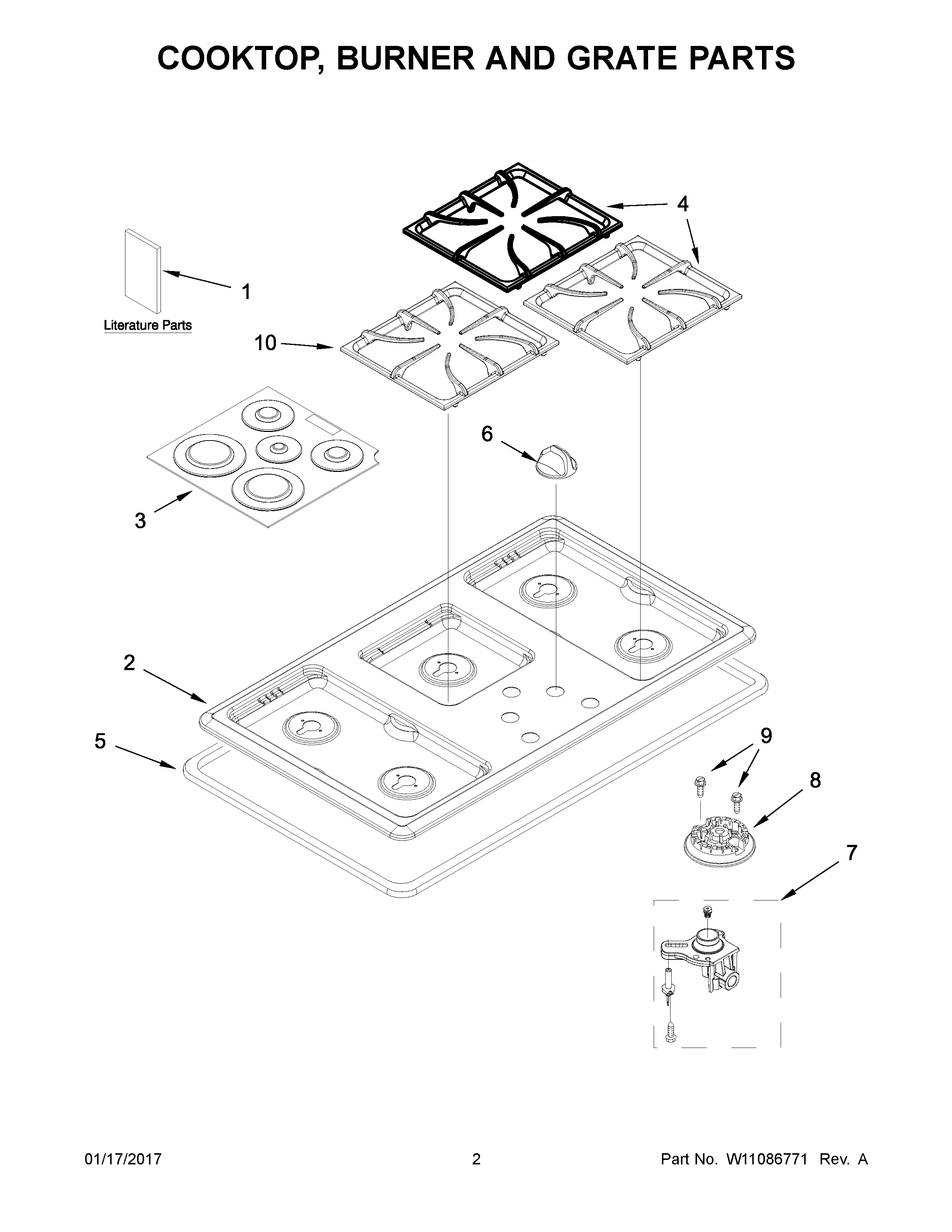

AGC6356KFW01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIHarness, Cooktop
NIMAY 3801F935-51
NIMISCELLANEOUS (SPUD KIT)
NIMAY 7402P087-60
1CTIPS, SAFE COOKING (ENGLISH)
1AInstallation Instructions
1USE AND CARE GUIDE
1BWiring Diagram (English)
1DTIPS, SAFE COOKING (FRENCH)
2ACOOKTOP (WHITE)
2COOKTOP (BLACK)
3AKIT, BURNER CAP (GRAY)
3KIT, BURNER CAP (BLACK)
4AGrate, Burner (Grey)
4MAY 7518P464-60
5MAY 8270P107-60
6KNOB, CONTROL (BLACK)
6AKNOB, CONTROL (WHITE)
7AHolder, Orifice (LF, LR & RR)
7ORIFICE HOLDER (9.5K) (RIGHT REAR)
7BMAY W10638869
8HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
9WP3368921 Whirlpool Screw
10MAY 7518P467-60
10AGrate, Center (Grey)
