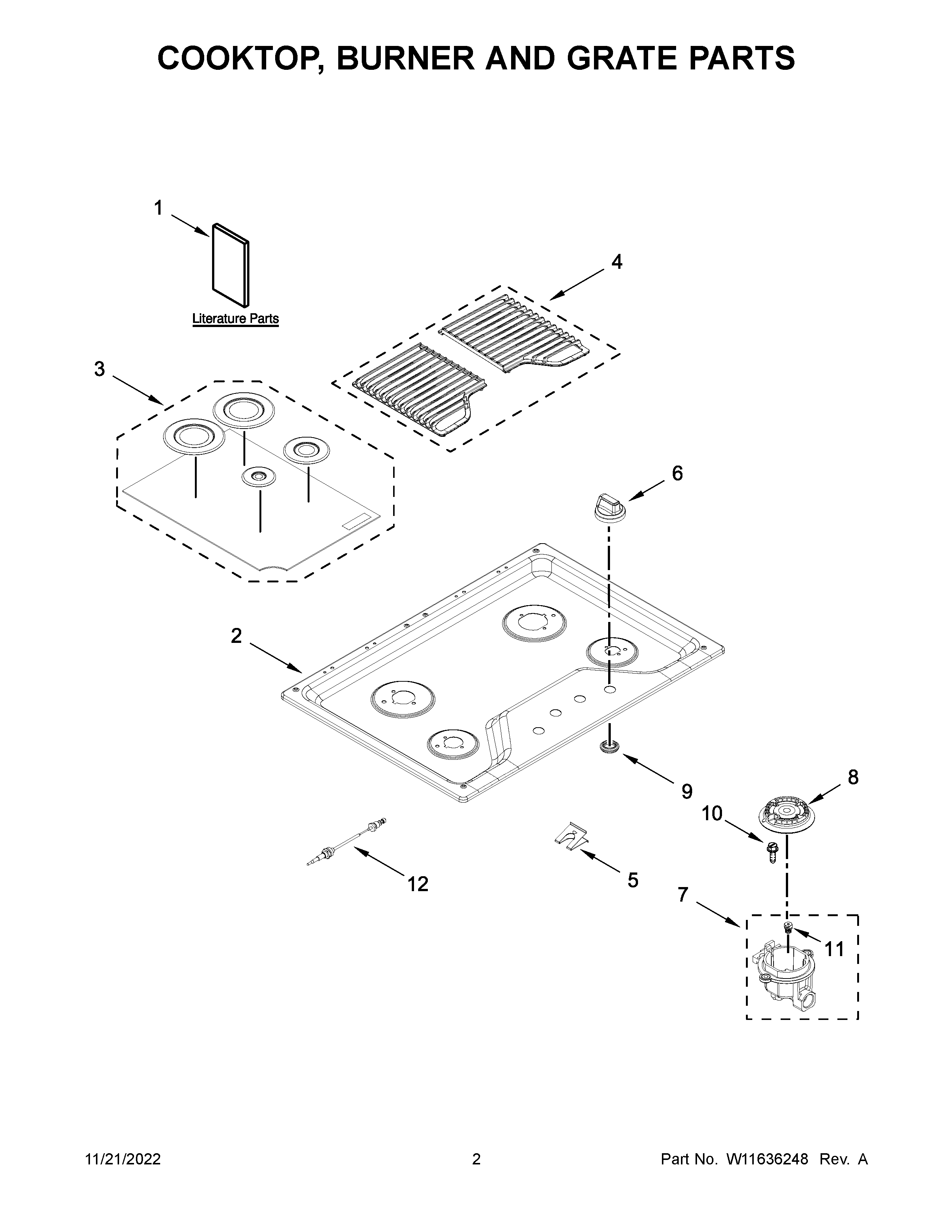

AGC6540KFS05 02 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
AGC6540KFS05 02 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
NI
WP3400015 Whirlpool Screw
NI
W11561439 Whirlpool Wire Harness
NI
W10676661 Whirlpool Cooktop Spud Orifice
NI
W11637584 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
SCREW
NI
BRACKET, MOUNTING
NI
W10392003 Whirlpool Power Cord
NI
W10132200 Whirlpool Strain Relief
NI
CABINET (NOT A SERVICEABLE PART)
1
OWNER'S MANUAL
1A
QUICK START GUIDE
2
COOKTOP (STAINLESS)
3
WPW10597129 Whirlpool Burner Cap
4
W11104042 Whirlpool Grate Kit
5
8286863 Whirlpool Oven Clip
6
W11190813 Whirlpool Knob
7B
W10594402 Whirlpool Orifice Holder
7C
W10597159 Whirlpool Orifice Holder
7
W10594399 Whirlpool Orifice Holder
7A
W10609591 Whirlpool Orifice Holder
8
WP8286813 Whirlpool Burner Head
8A
WP8286815 Whirlpool Burner Head
8B
WP8286814 Whirlpool Burner Head
9
W11206740 Whirlpool Grommet
10
W11676349 Whirlpool Screw
11
W10791082 Whirlpool Spud Orifice
11A
W10791073 Whirlpool Gas Orifice Spud
11C
W10791079 Whirlpool Orifice Spud
11B
W10652710 Whirlpool Orifice Spud
12
W11507531 Whirlpool Surface Igniter Assembly
12A
W11507532 Whirlpool Surface Igniter
←
