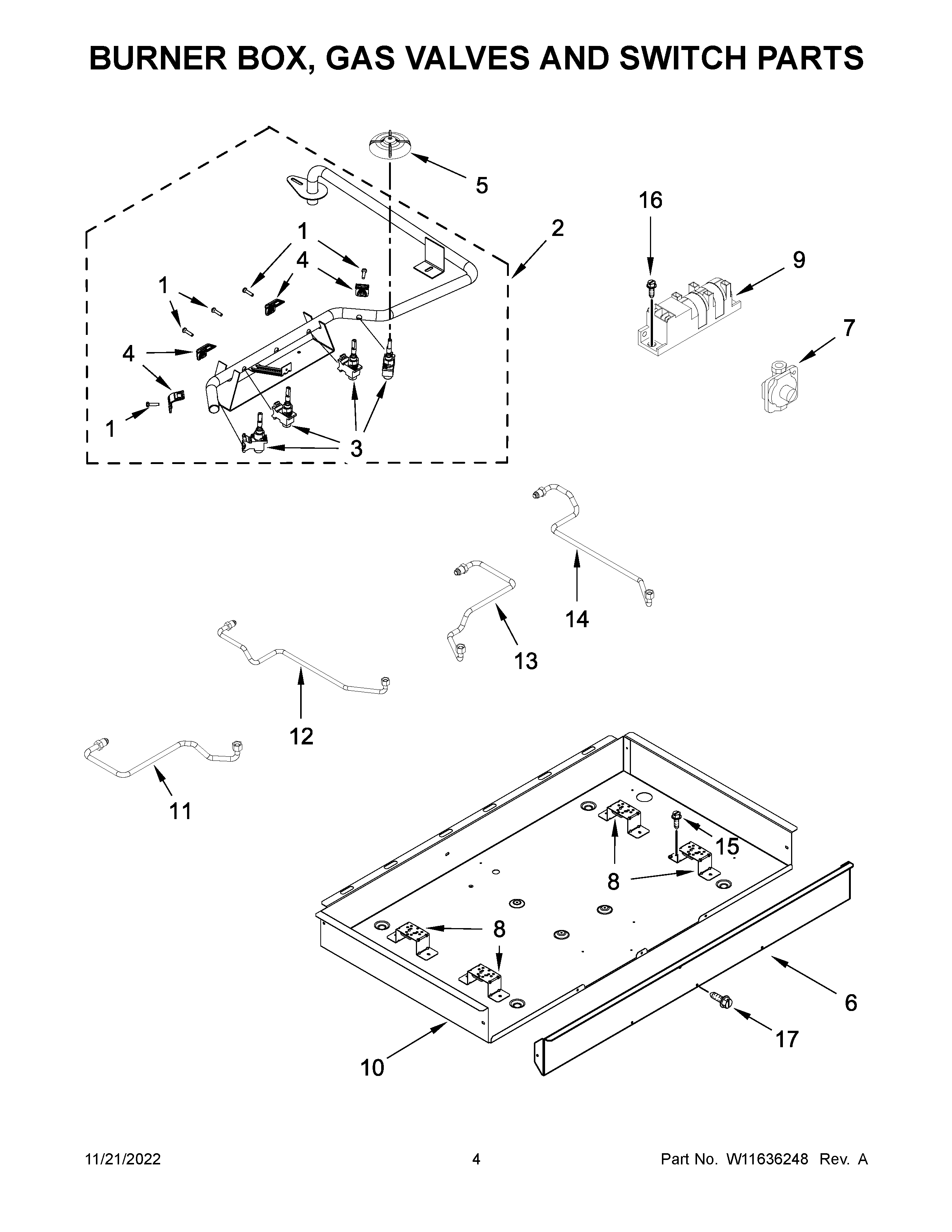

AGC6540KFS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
1	8287057 Whirlpool Oven Screw
2	W10594394 Whirlpool Manifold
3B	W10859922 Whirlpool Gas Valve
3A	W11256503 Whirlpool Gas Valve Assembly
3	W10597157 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	W11507167 Whirlpool Switch Seal
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	MODULE-SPK
10	BOX, BURNER
11	W10566287 Whirlpool Gas Tubing
12	W10566288 Whirlpool Gas Tubing
13	W10566290 Whirlpool Gas Tubing
14	W10566289 Whirlpool Gas Tubing
15	W10443110 Whirlpool Screw
16	SCREW
17	WP3196557 Whirlpool Screw
