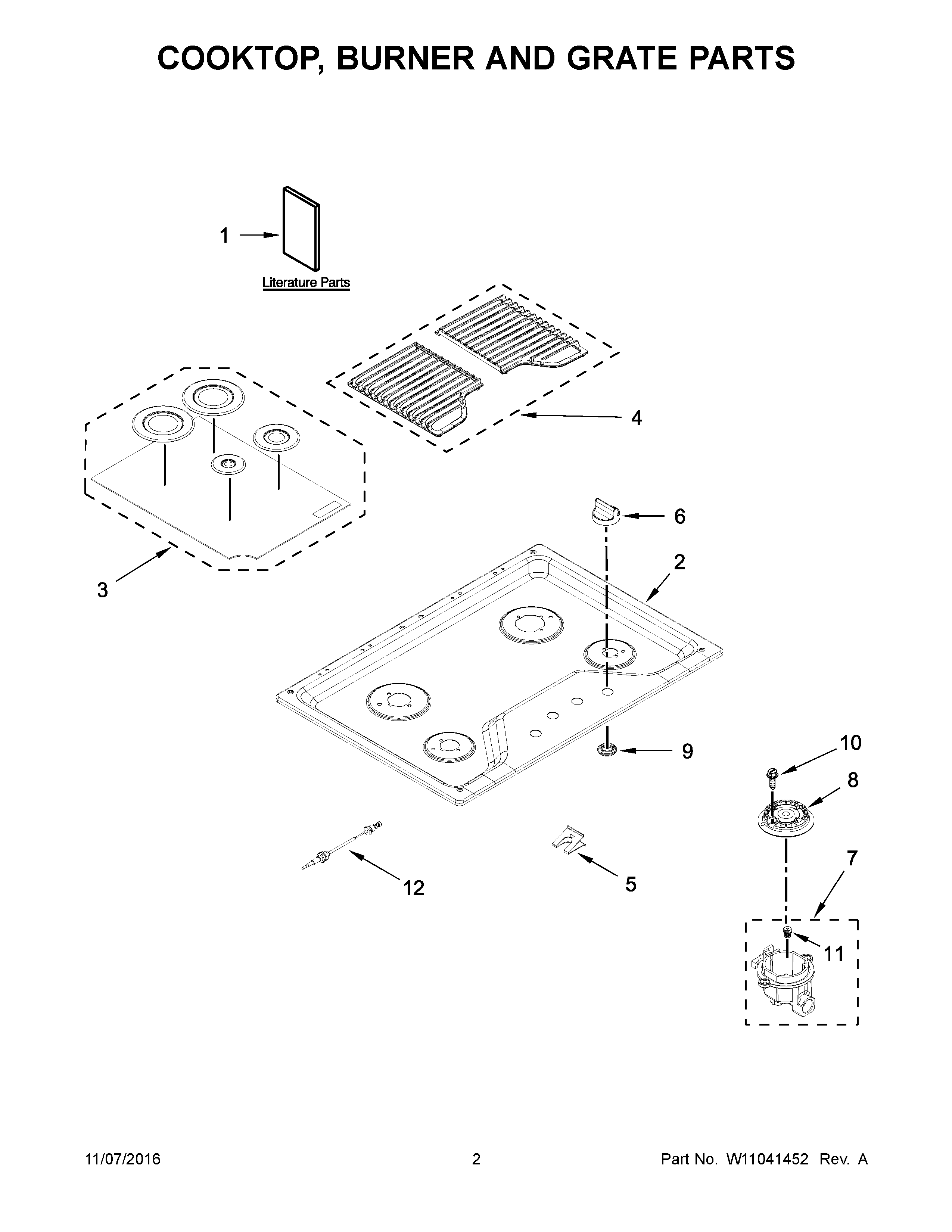

AGC6540KFW00 02 – COOKTOP, BURNER AND GRATE PARTS

AGC6540KFW00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

AGC6540KFW00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NICORD-POWER
NIMAY W10676661
NICLIP, HARNESS
NILINER (NOT A SERVICEABLE PART)
NIMAY 3801F935-51
NIRELIEF, STRAIN
NIHARNESS (SWITCH), MAIN
1BMAY W10875395
1CTIPS, SAFE COOKING (ENGLISH)
1AMAY W10672375
1DTIPS, SAFE COOKING (FRENCH)
1MAY W10597144
2BMAY W10828591
2AMAY W10828590
2MAY W10828586
3MAY W10597129
4MAY W10594439
5SPRING, ELECTRODE (RR)
6KNOB, CONTROL (BLACK)
6AMAY W10828587
7AMAY W10609591
7BHOLDER,ORIFICE (9.1K) (RIGHT REAR)
7MAY W10594399
7CHOLDER, ORIFICE (12K) (RIGHT FRONT)
8AHEAD, BURNER (LEFT FRONT & RIGHTFRONT)
8BHEAD, BURNER (RIGHT REAR)
8MAY 8286813
9MAY W10625915
9AMAY W10614849
10MAY 8287059
11MAY W10652711
11BORIFICE (RIGHT REAR)
11AMAY W10609592
11CORIFICE (RIGHT FRONT)
12AMAY W10541843
12MAY W10541842
