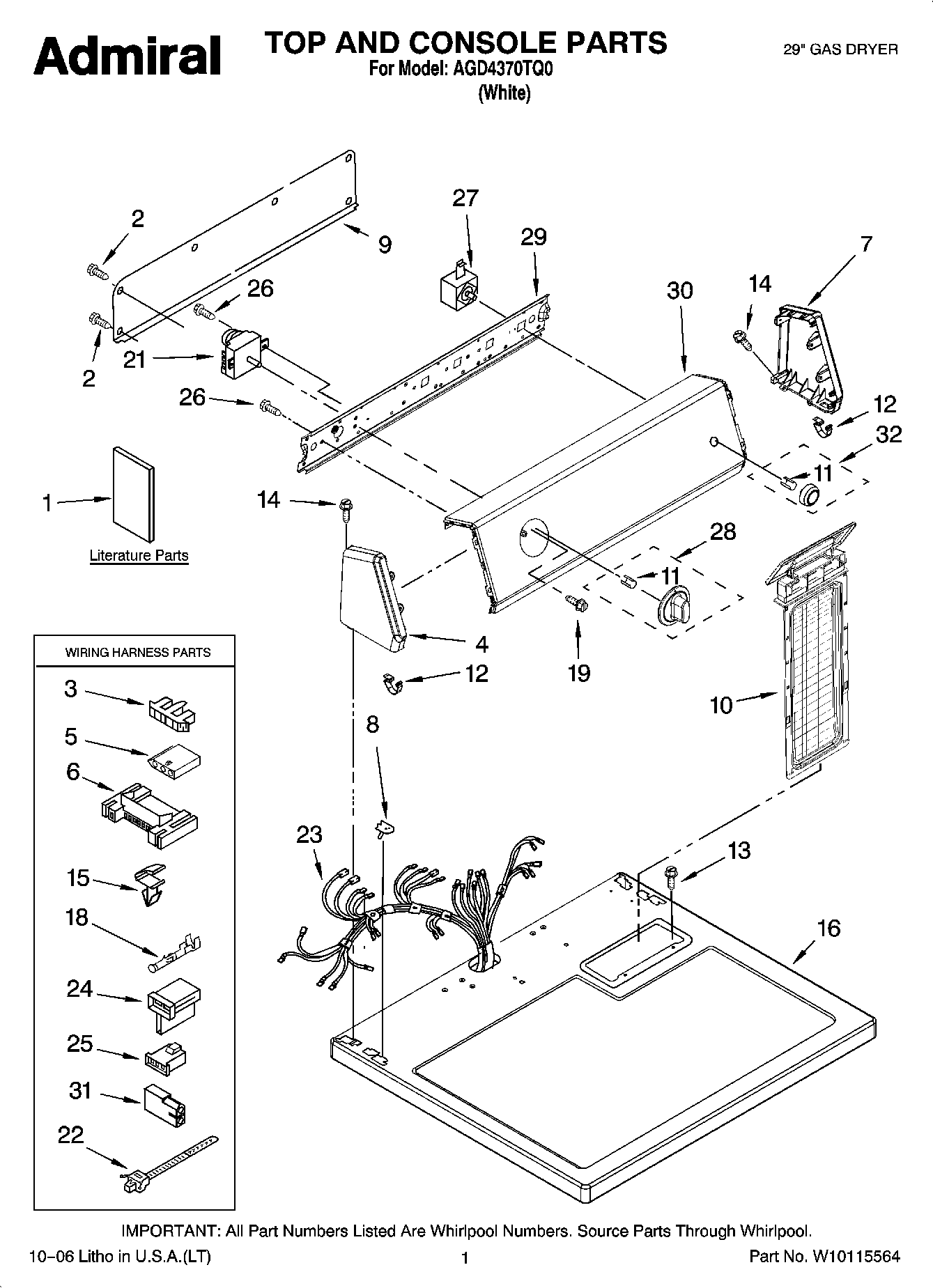

AGD4370TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Installation Instructions
1	MAY 8528187
1	MAY W10089174
1	Use & Care Guide
2	Screw
3	Connector-Timer
4	Cap, End (L.H.) (White)
5	MAY 3936144
6	CONNECTOR (MOTOR)
7	Cap, End (R.H.) (White)
8	Nut, Push-In
9	MAY 8274261
10	MAY 8558467
11	CLIP, SPRING
12	MAY 8312709
13	SCREW
14	Screw, Console
15	CLIP, HARNESS
16	MAY 8559800
18	Terminal
19	MAY 8533951
21	MAY 8299764
22	Tie, Cable
23	MAY 8299877
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY 8533971
27	MAY 3977456
28	Timer Knob Assembly (White)
29	MAY 8579678
30	MAY W10086723
31	Plug, 2-Way Terminal
32	MAY W10110065
