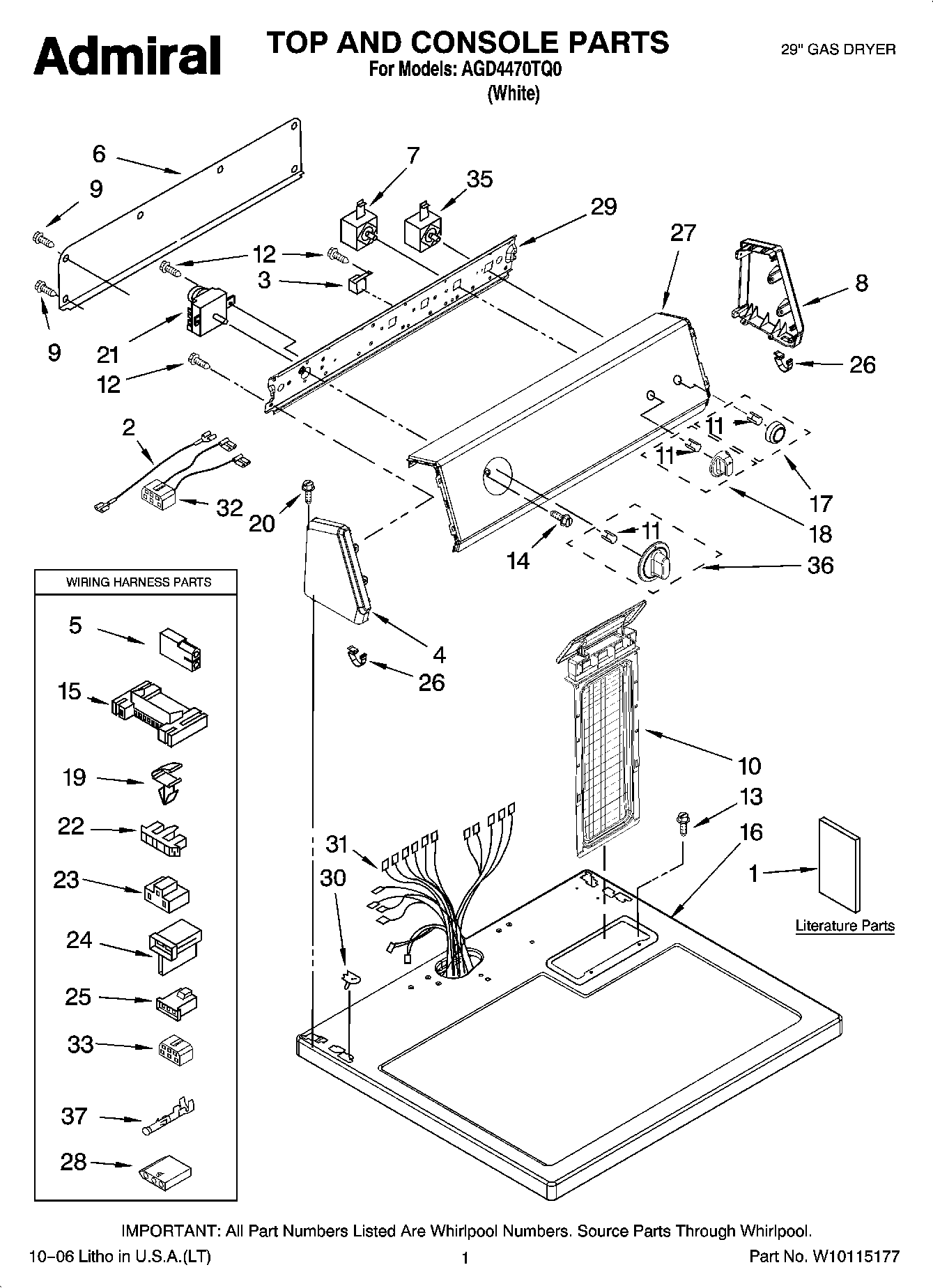

AGD4470TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8576817
1	MAY W10089174
1	Use & Care Guide
1	Installation Instructions
2	Wire, Jumper (Black)
3	MAY 694419
4	Cap, End (L.H.) (White)
5	Plug, 2-Way Terminal
6	MAY 8274261
7	Switch, Temperature
8	Cap, End (R.H.) (White)
9	Screw
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8559800
17	Knob, Push-To-Start (White)
18	Knob, Control (1) (White)
19	CLIP, HARNESS
20	Screw, Console
21	Timer Assembly (60 Hz.)
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY 8312709
27	MAY W10086678
28	MAY 3936144
29	MAY 8579678
30	Nut, Push-In
31	MAY 8299879
32	Wire, Jumper (Temperature)
33	Connector
35	MAY 3398095
36	Timer Knob Assembly (White)
37	Terminal
