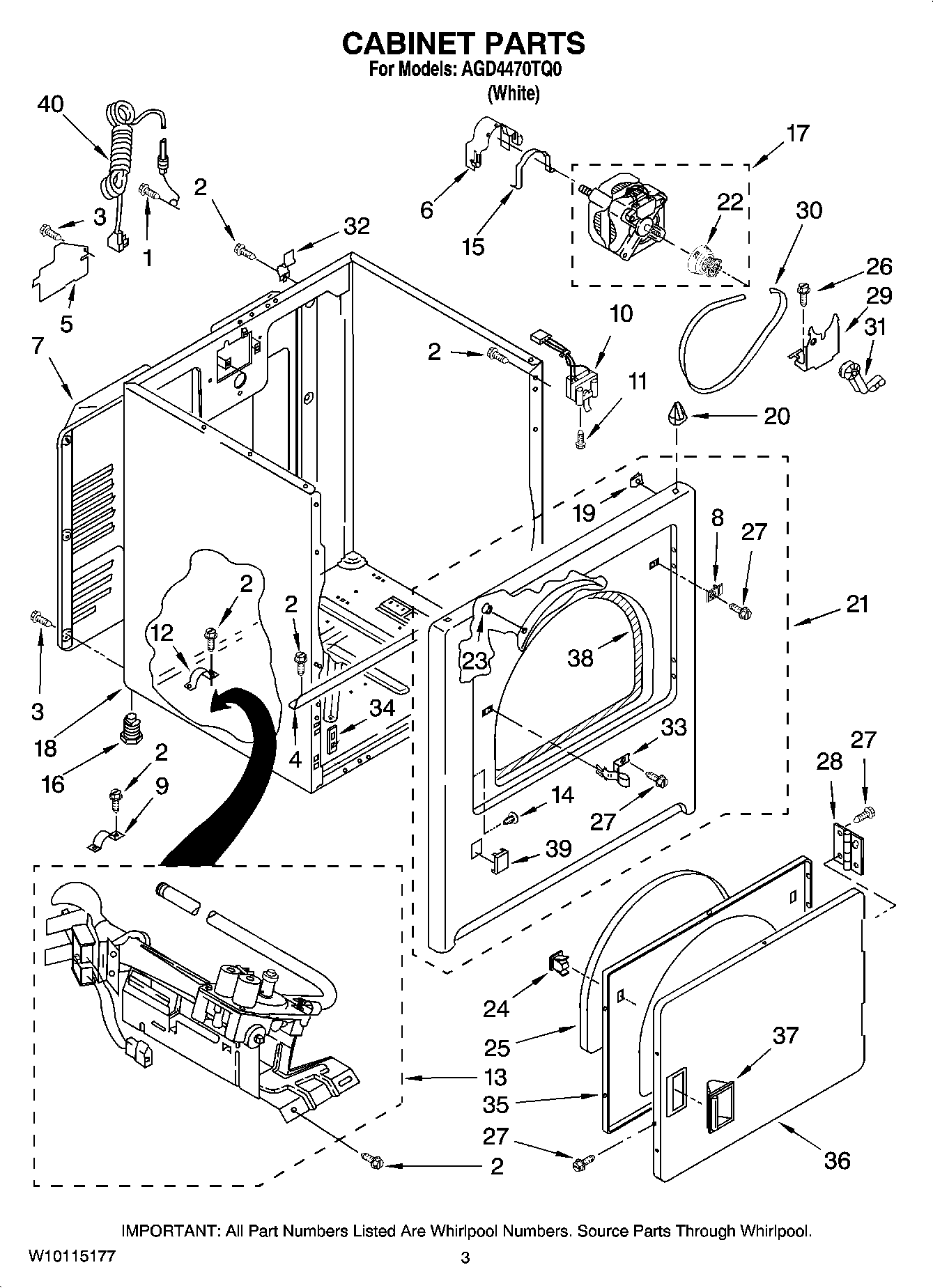

AGD4470TQ0 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3980175
10	Switch, Door
11	SCREW
12	MAY 341029
13	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
14	PLUG, HINGE HOLES
15	MAY 660658
16	MAY 3392100
16	MAY 279810
17	MAY 8066206
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403447
22	Pulley, Motor
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	BOLT
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	MAY 348780
30	MAY 8066065
31	IDLER ASSEMBLY
32	Hinge, Top
33	Strike, Door
34	MAY 3394083
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 3394975
40	MAY 344020
