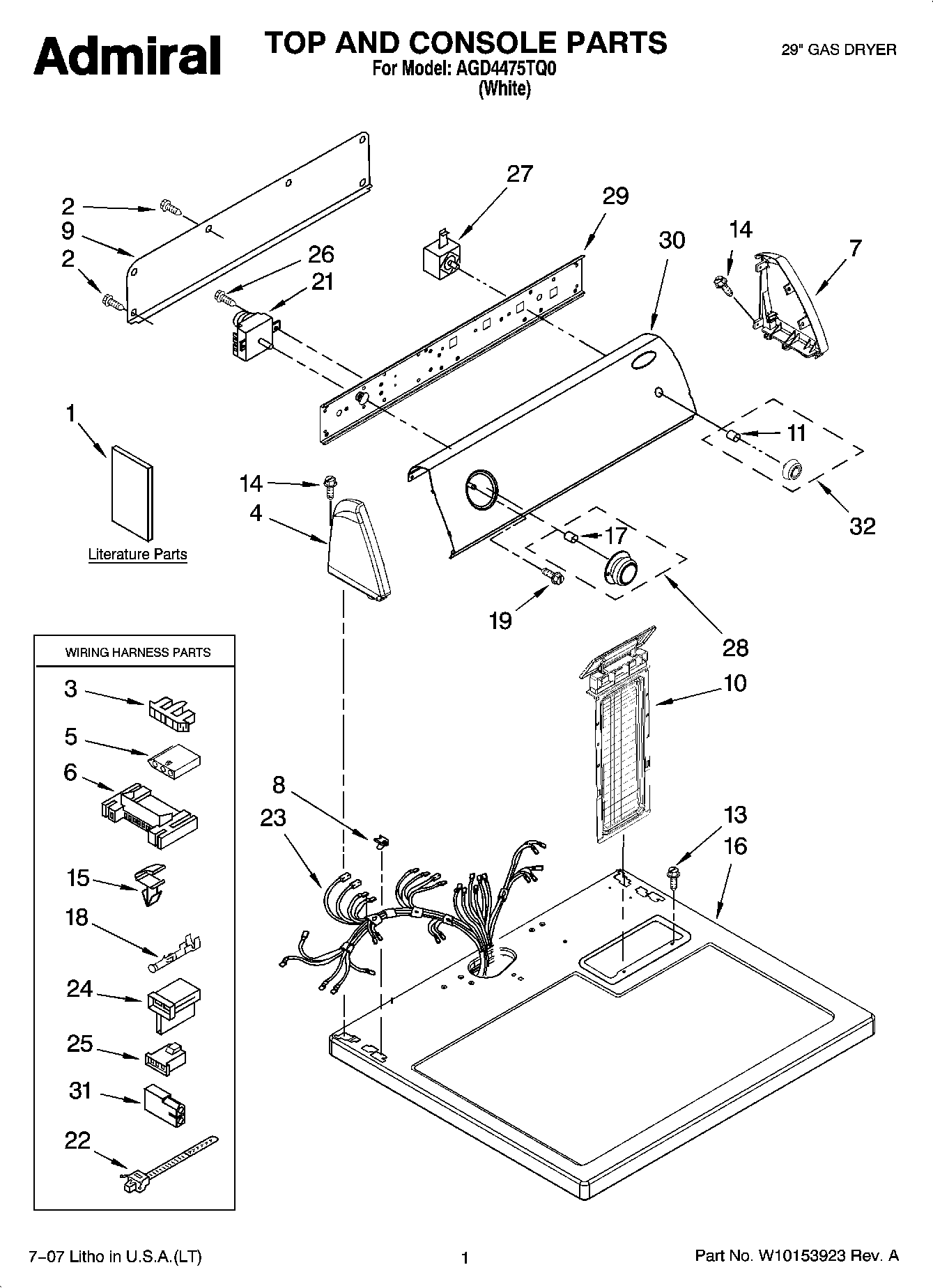

AGD4475TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Installation Instructions
1	MAY 8576793
1	MAY W10089174
1	Use & Care Guide
2	Screw
3	Connector-Timer
4	MAY 8271365
5	MAY 3936144
6	CONNECTOR (MOTOR)
7	MAY 8271359
8	Nut, Push-In
9	MAY 8274261
11	CLIP, SPRING
13	SCREW
14	Screw, Console
15	CLIP, HARNESS
16	MAY 8557930
18	Terminal
19	MAY 8533951
21	MAY 8299764
22	Tie, Cable
23	MAY 8299876
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY 8533971
27	MAY 3977456
28	MAY 8538953
29	MAY 8271418
30	MAY W10141666
31	Plug, 2-Way Terminal
