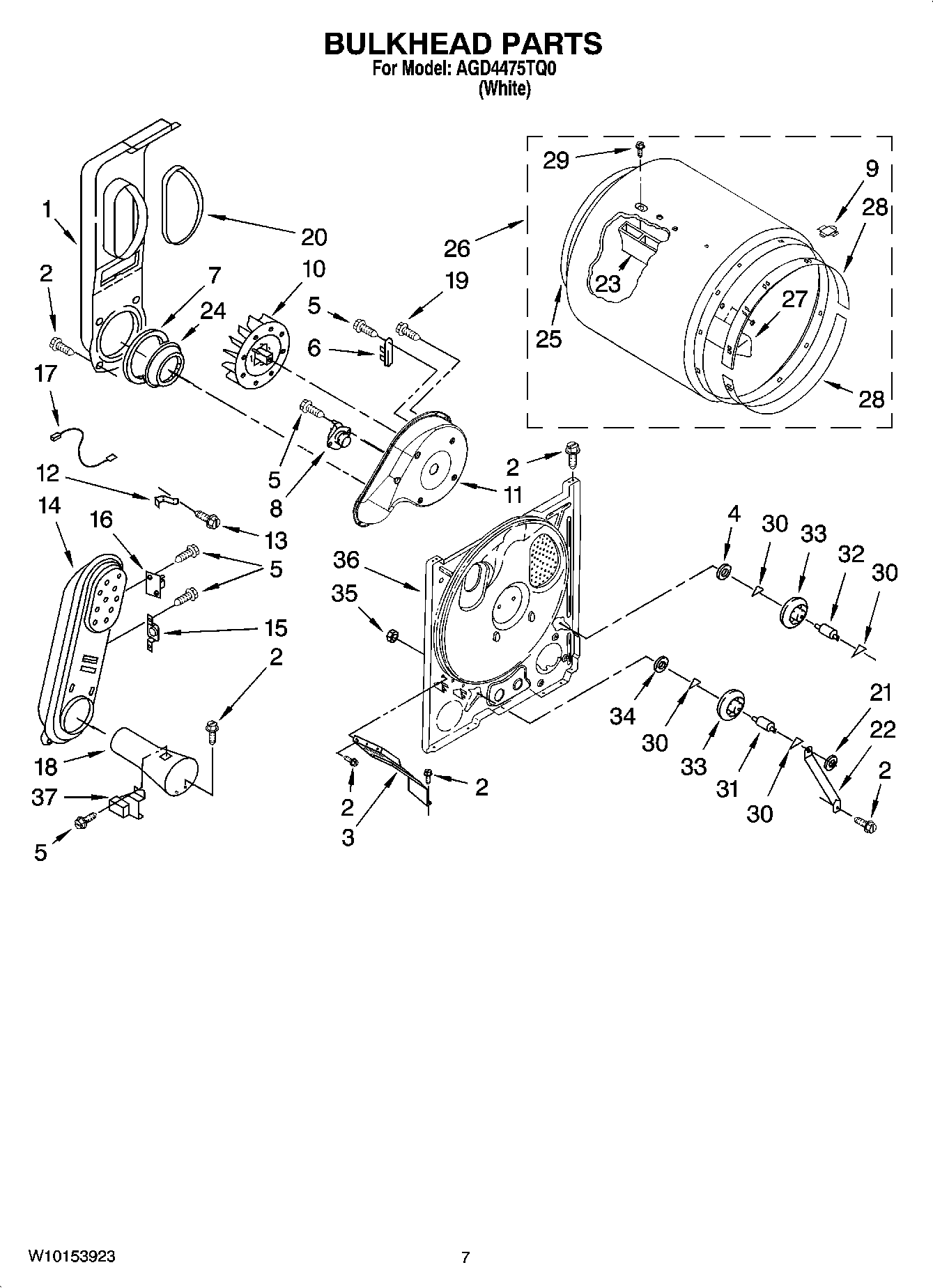

AGD4475TQ0 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)admin2025-04-26T09:26:55+00:00AGD4475TQ0 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Products
| Position | Product |
|---|
| NI | PAINT, PRESSURIZED SPRAY (12OZ. WHITE) |
| NI | PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER) |
| NI | ACCESSORY PARTS (KIT, DRYER VENT TESTING) |
| NI | Dry Rack |
| NI | ACCESSORY PARTS, KIT, DRYER REPAIR |
| NI | ACCESSORY PARTS, KIT, HOLD DOWN |
| NI | PAINT, TOUCH-UP (1/2OZ. WHITE) |
| NI | PAINT, BULK (1 QT. WHITE (UNCUT)) |
| 1 | MAY 348368 |
| 2 | SCREW |
| 3 | BRACKET, BULKHEAD CHUTE |
| 4 | WASHER |
| 5 | SCREW,8-18 X 3/8 |
| 6 | Fuse, Thermal (91 C) |
| 7 | MAY 347139 |
| 8 | MAY 3387134 |
| 9 | Plug, Drum Hole |
| 10 | Wheel, Blower |
| 11 | MAY 8577230 |
| 12 | MAY 8066155 |
| 13 | Screw |
| 14 | BOX, HEATER (96C) |
| 15 | Thermostat, 205 F (96C) |
| 16 | MAY 280010 |
| 17 | WIRE JUMPER |
| 18 | FUNNEL, BURNER LIGHT |
| 19 | SCREW |
| 20 | MAY 339956 |
| 21 | NUT, PUSH ON |
| 22 | MAY 3976434 |
| 23 | BAFFLE, DRUM (LONG) |
| 24 | MAY 696302 |
| 25 | MAY 3406130 |
| 26 | MAY 695587 |
| 27 | BAFFLE, DRUM (SHORT) |
| 28 | Bearing, Ring |
| 29 | MAY W10109200 |
| 30 | WASHER, TRI RING |
| 31 | MAY 3399506 |
| 32 | MAY 3399507 |
| 33 | MAY 3397590 |
| 34 | WASHER |
| 35 | Nut, 3/8-16 |
| 36 | MAY 3403491 |
| 37 | MAY 338906 |
