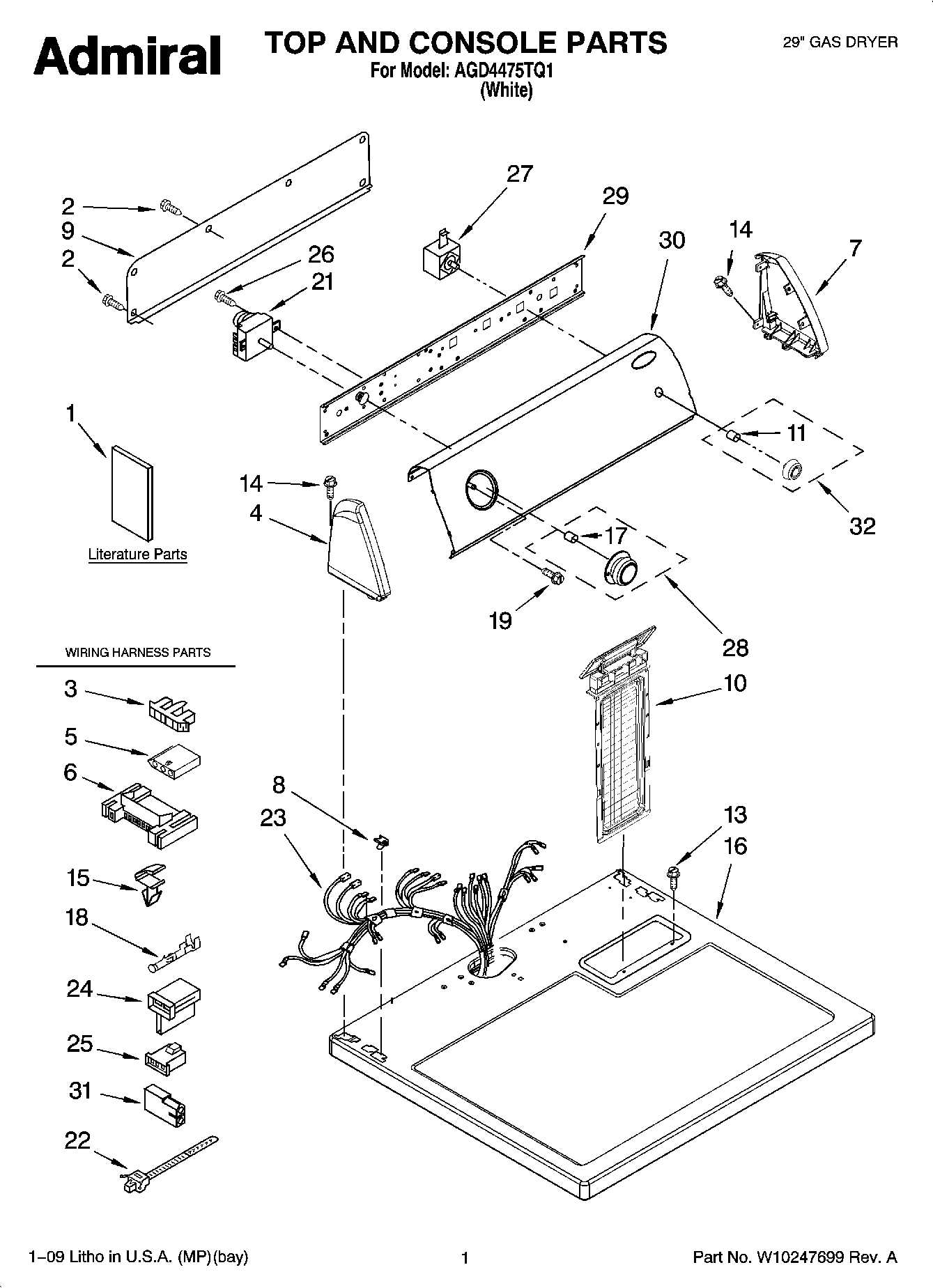

AGD4475TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10160636
1	Instructions, Installation (English)
1	MAY W10185979
1	MAY W10150668
2	Screw
3	Connector-Timer
4	MAY 8271365
5	MAY 3936144
6	CONNECTOR (MOTOR)
7	MAY 8271359
8	Nut, Push-In
9	MAY 8274261
10	LINT SCREEN WHITE
11	CLIP, SPRING
13	SCREW
14	Screw, Console
15	CLIP, HARNESS
16	MAY 8557930
17	Spring, Clip Knob
18	Terminal
19	MAY 8533951
21	TIMER
22	Tie, Cable
23	MAY W10186074
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY 8533971
27	MAY 3977456
28	MAY 8538953
29	MAY 8271418
30	MAY W10141666
31	Plug, 2-Way Terminal
32	MAY 8538959
