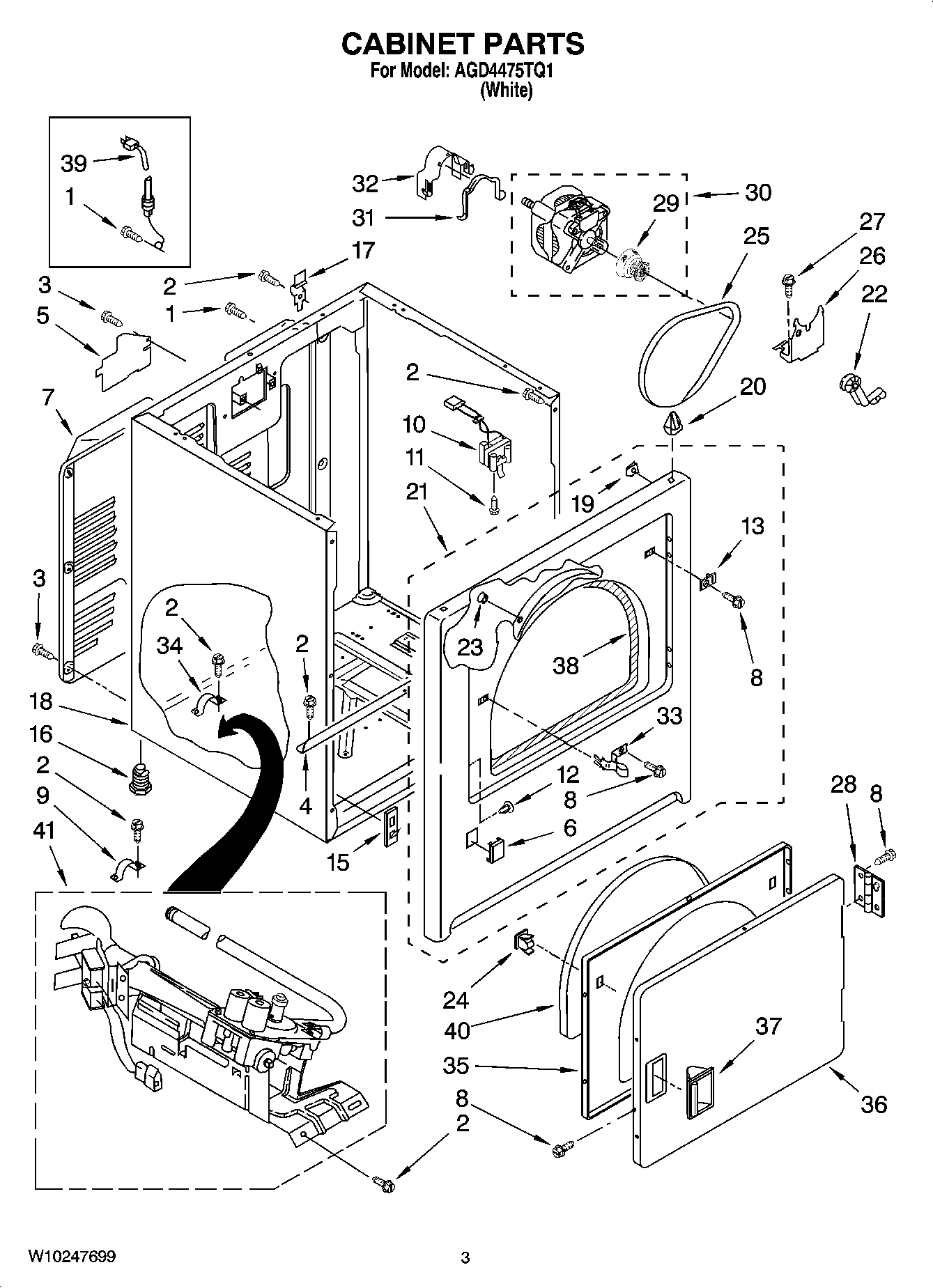

AGD4475TQ1 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	MAY 3394975
7	MAY 3396805
8	MAY 342055
9	MAY 3980175
10	MAY 3406109
11	SCREW
12	PLUG, HINGE HOLES
13	PLUG-STRIKE
15	MAY 3394083
16	MAY 3392100
17	Hinge, Top
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	PANEL FRONT (WHITE)
22	IDLER ASSEMBLY
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY W10131364
26	MAY 348780
27	BOLT
28	HINGE AND PIN ASSEMBLY
29	Pulley, Motor
30	Motor Assembly
31	CLAMP, MOTOR MOUNT
32	Clamp, Motor (With Shield)
33	Strike, Door
34	MAY 341029
35	Door, Rear
36	DOOR FRONT
37	MAY 8566059
38	MAY 3406129
39	MAY 344020
40	MAY 3405246
41	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
