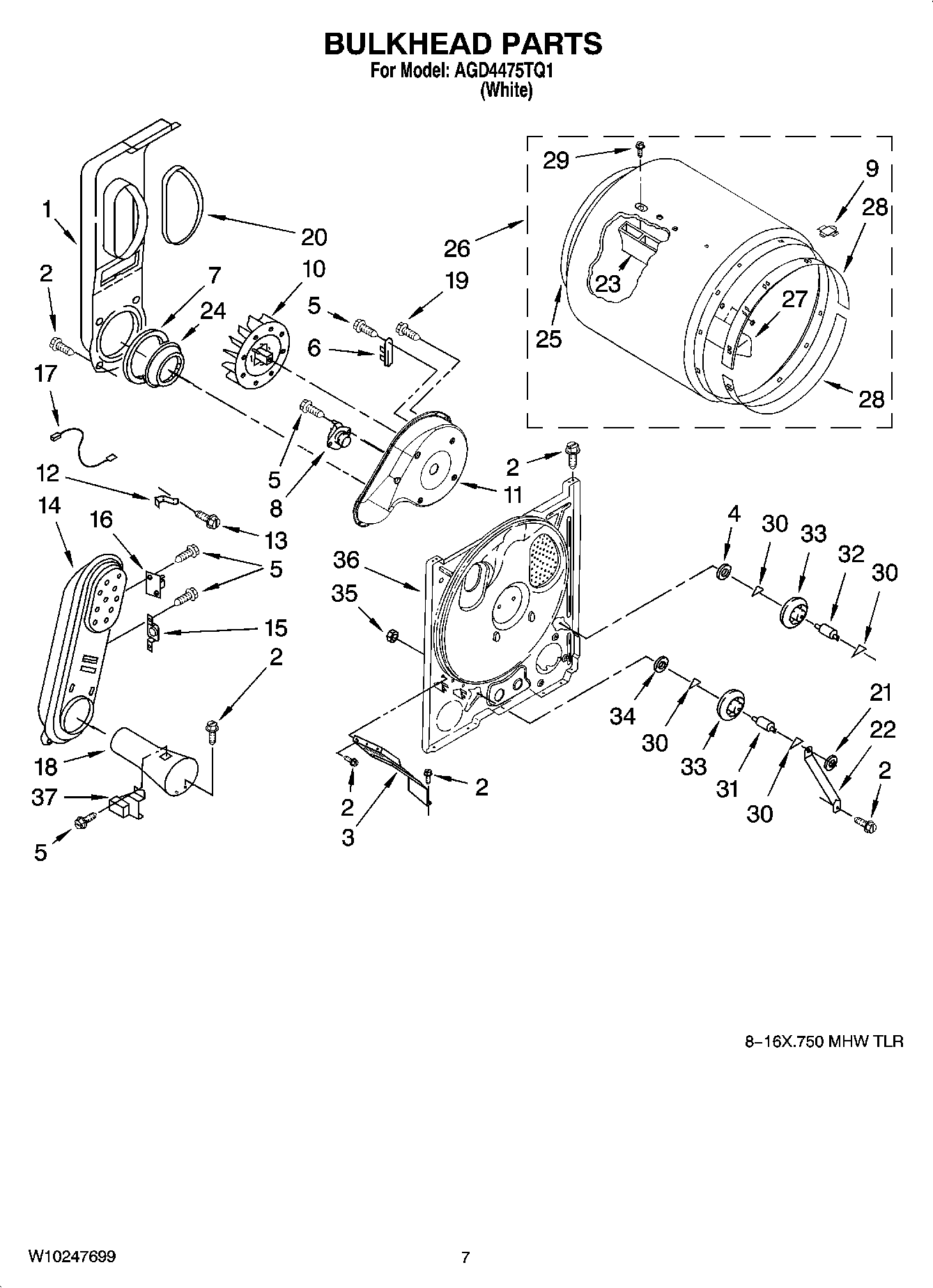

AGD4475TQ1 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	Dry Rack
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY 348368
2	SCREW
3	BRACKET, BULKHEAD CHUTE
4	WASHER
5	SCREW,8-18 X 3/8
6	Fuse, Thermal (91 C)
7	MAY 347139
8	MAY 3387134
9	Plug, Drum Hole
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	Screw
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
16	MAY 280010
17	WIRE JUMPER
18	FUNNEL, BURNER LIGHT
19	SCREW
20	MAY 339956
21	NUT, PUSH ON
22	MAY 3976434
23	BAFFLE, DRUM (LONG)
24	MAY 696302
25	MAY 3406130
26	MAY 695587
27	BAFFLE, DRUM (SHORT)
28	Bearing, Ring
29	MAY W10219342
30	WASHER, TRI RING
31	MAY 3399506
32	MAY 3399507
33	MAY 3397590
34	WASHER
35	Nut, 3/8-16
36	MAY 3403491
37	MAY 338906
