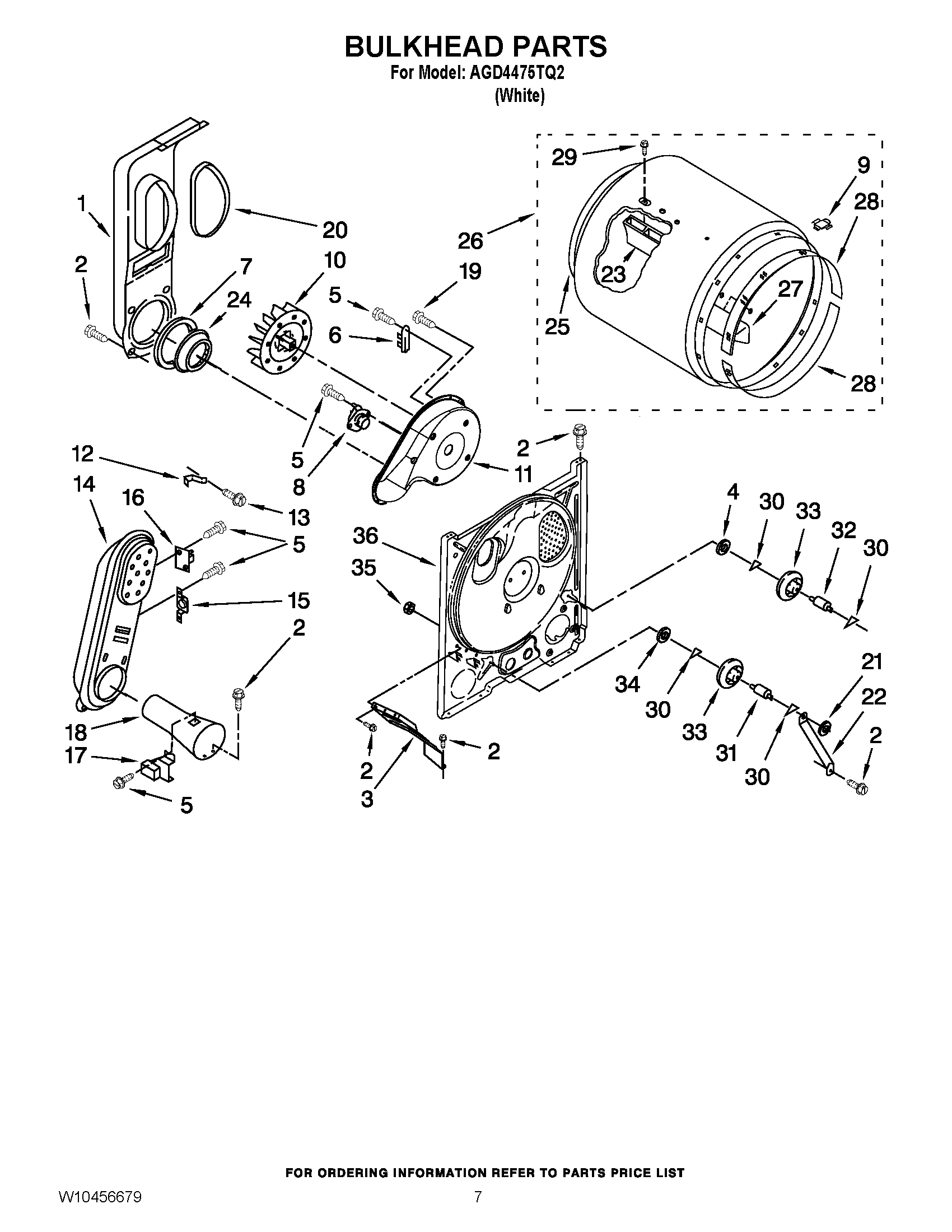

AGD4475TQ2 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	SCREW
3	BRACKET, BULKHEAD CHUTE
4	WASHER
5	SCREW,8-18 X 3/8
6	Fuse, Thermal (91 C)
7	MAY 347139
8	MAY 3387134
9	Plug, Drum Hole
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	Screw
14	BOX, HEATER (96C)
15	MAY W10423382
16	MAY 280010
17	MAY 338906
18	FUNNEL, BURNER LIGHT
19	SCREW
20	MAY 339956
21	NUT, PUSH ON
22	MAY 3976434
23	BAFFLE, DRUM (LONG)
24	MAY 696302
25	MAY W10352407
26	MAY 695587
27	BAFFLE, DRUM (SHORT)
28	Bearing, Ring
29	MAY W10219342
30	WASHER, TRI RING
31	MAY W10359270
32	MAY W10359269
33	MAY 3397590
34	WASHER
35	MAY W10298789
36	MAY 3403491
