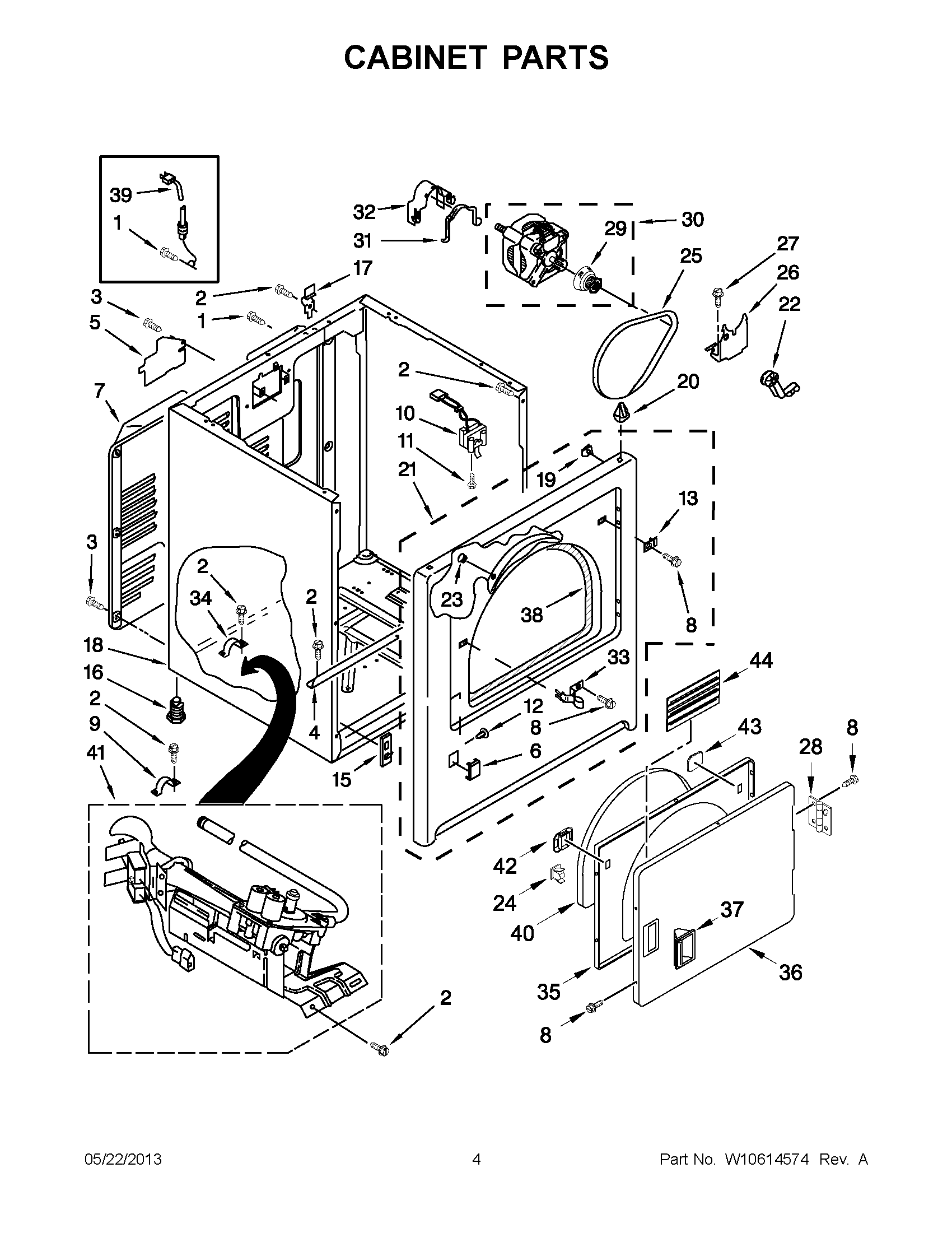

AGD4675YQ2 02 – CABINET PARTS

Products

Position	Product
1	MAY 8533974
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	PLUG, FRONT PANEL (WHITE)
7	MAY W10571724
8	MAY 342055
9	MAY 3980175
10	MAY 3406109
11	SCREW
12	PLUG, HINGE HOLES
13	PLUG, STRIKE
15	MAY 3394083
16	MAY 3392100
17	Hinge, Top
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	PANEL FRONT (WHITE)
22	IDLER ASSEMBLY
23	Clip, Felt Pad
24	MAY W10529190
25	MAY W10131364
26	MAY 348780
27	BOLT
28	ASSEMBLY, HINGE AND PIN
29	MAY W10402909
30	MAY W10366770
31	CLAMP, MOTOR MOUNT
32	Clamp, Motor (With Shield)
33	Strike, Door
34	MAY 341029
35	DOOR, INNER
36	DOOR FRONT
37	MAY W10549552
38	SEAL & BEARING ASSEMBLY
39	MAY W10440460
40	MAY W10389572
41	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
42	COVER, DOOR CATCH
43	BEZEL, DOOR CATCH
44	MAY W10532676
